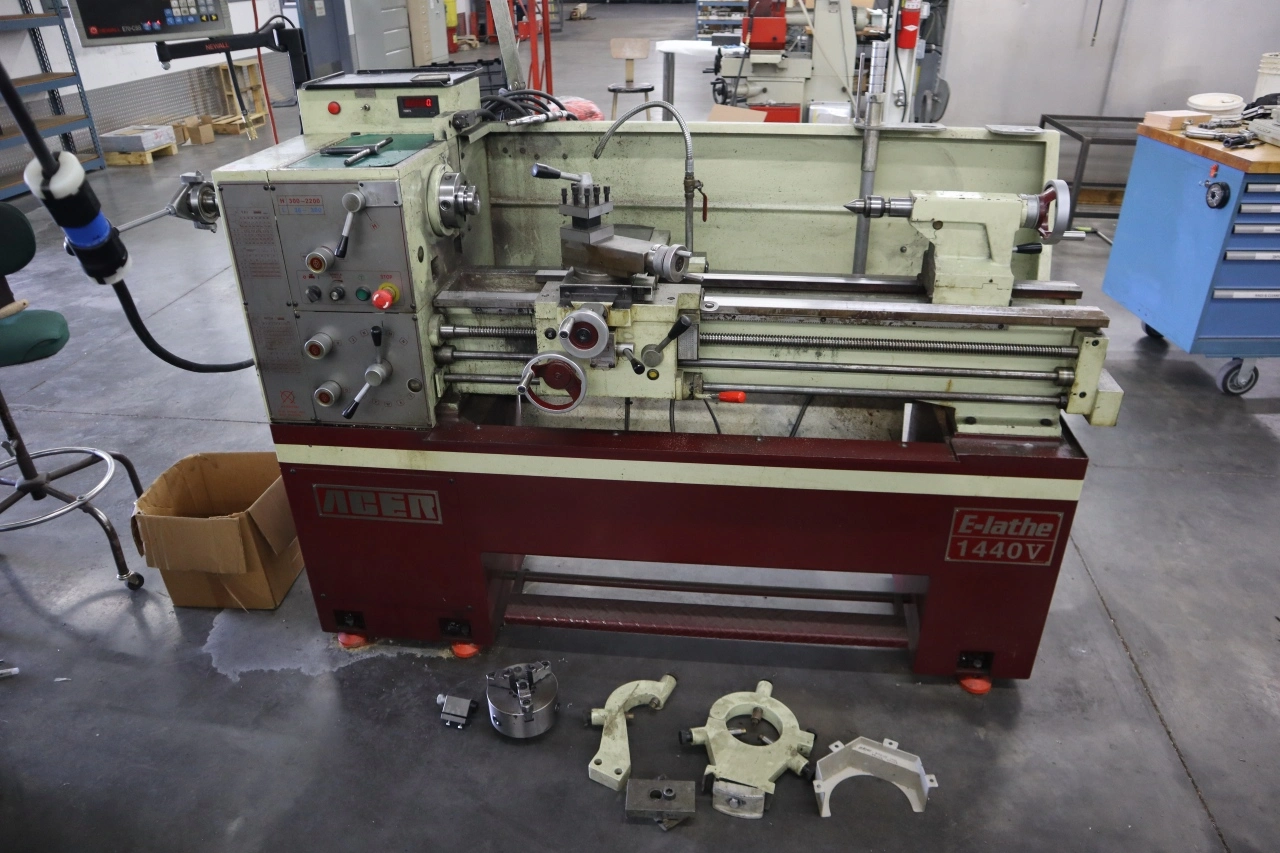

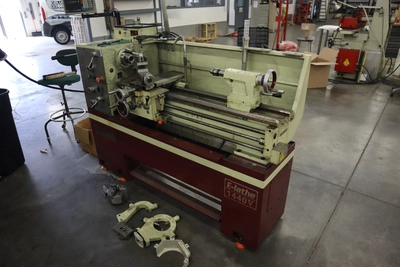

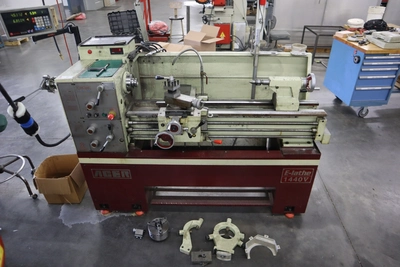

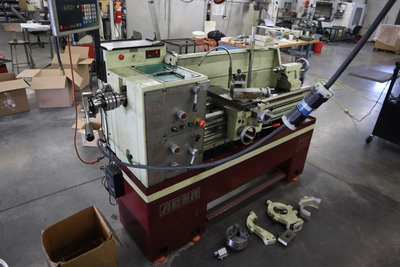

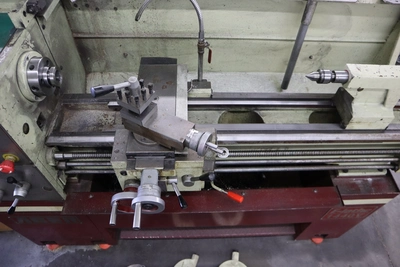

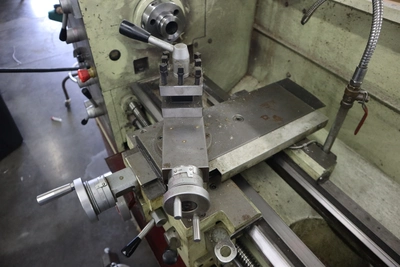

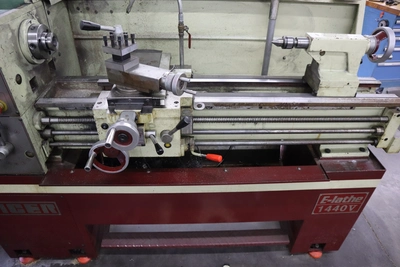

USED ACER MACHINE TOOLS E1440V
Overview
The Acer E1440V is a precision-built 14" x 40" engine lathe designed for toolrooms, maintenance departments, prototype work, and general machining applications. Featuring an electronic variable speed drive system, the E1440V allows operators to adjust spindle speeds instantly without changing belts or gears, improving productivity and machining efficiency. Built with hardened and ground headstock gears, a precision spindle supported by tapered roller bearings, and a rugged cast iron bed, the Acer E1440V delivers the accuracy, rigidity, and reliability demanded by modern machine shops. Its combination of traditional manual control and electronic speed adjustment makes it one of the most desirable engine lathes in its class.
Specs
Lot 10: Acer E1440V Engine Lathe, 14"x40", Electronic Vbl Speed, Newall 2 Axis DRO - New 2011
Main Unit Approx Weight: 1600.00 lbs
Main Unit Dimensions (in inches): Length: 80.00" Width: 36.00" Height: 64.00"
Specs:
Max Swing Over Ways: 14"
Max Swing Over Cross Slide: 8-5/8"
Swing In Gap: 20-3/4" with GAP OPTION
Max Center Distance: 40"
Hole Thru Spindle: 1-1/2"

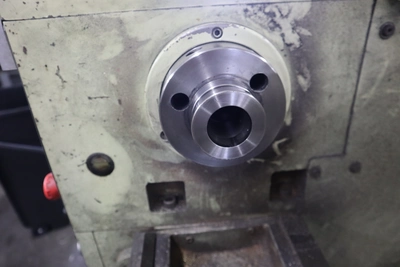

Spindle Mount: D1-4"
Max Cross Slide Travel: 8"
Max Compound Travel: 3-1/2"

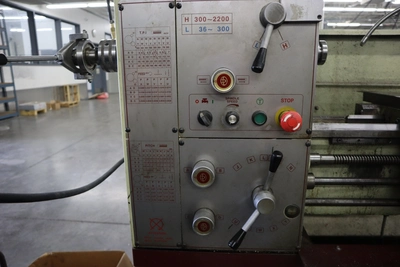

Spindle Speeds: 36-2,200 RPM Electronic Variable Speed
Feed Rates: Longitudinal: .0026 - .0368 IPR / Cross: .0008-.0122 IPR

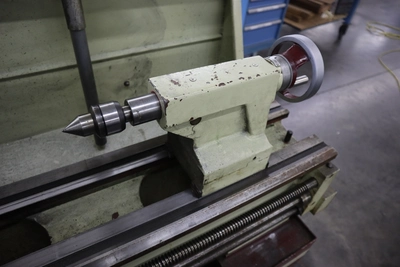

Tailstock Quill Travel: 4"
Tailstock Quill Taper: #3MT

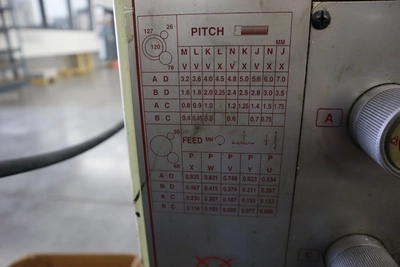

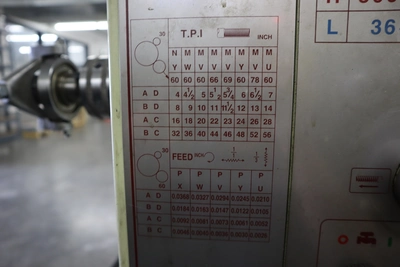

Threading Capacities: Inch (32) 4-56 TPI / Metric (32) .4 - 7mm

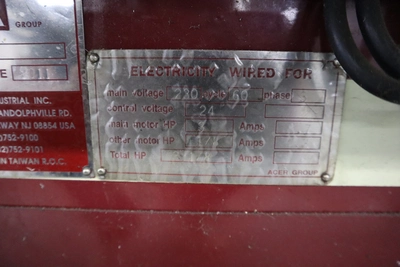

Drive Motor: 3 HP
Coolant Pump Motor: 1/8 HP
Seller Company: Columbia Precision Machine
Seller Contact: Machinesused Auction Phone: (763) 745-1166
Location Contact: Machinesused Auction Phone: (764) 745-1166
Inspection Date & Time: Friday, September 25, 2026, 9AM to 4PM or By Appointment
Dock Door: 118 "X x 107"H Ground Door, 84"W x 108"H Truck Level Dock Door
Loading Dock: Gound and Truck Level Doors
Removal Dates and Times: This item must be removed between Monday, October 5, 2026 and Thursday, October 8, 2026
Equipped With

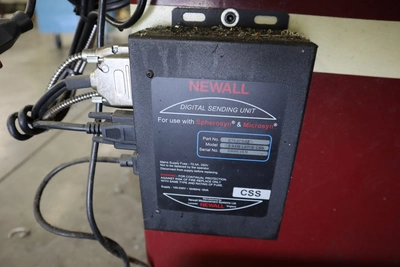

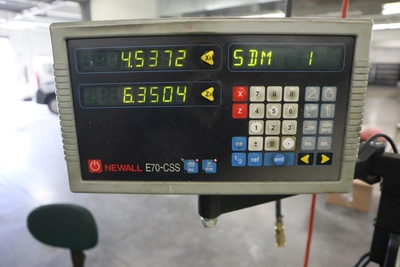

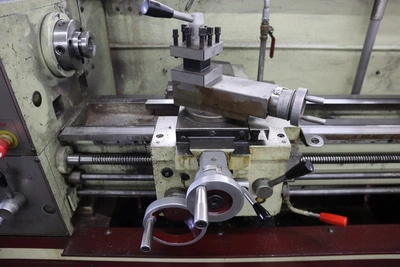

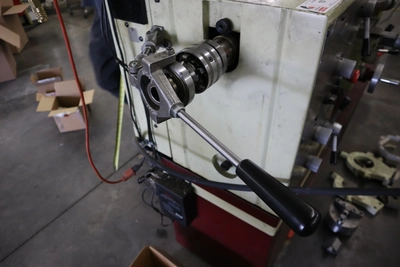

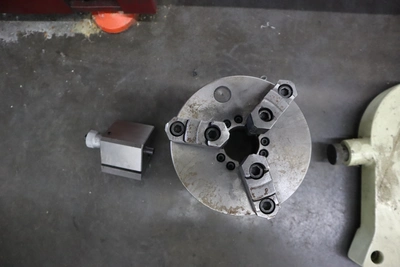

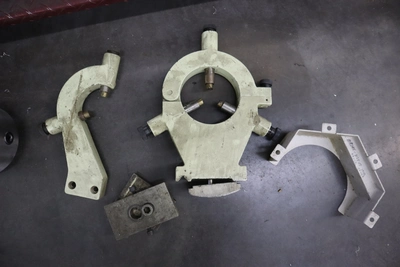

Electronic Variable Speed Spindle, Newall E70-CSS 2-Axis Digital Readouts, 4-Way Tool Post, Tailstock, Inch/Metric Threading, Steady Rest, Follow Rest, 5C Collet Closer, 6" 3-Jaw Chuck, Coolant System, Work Light
