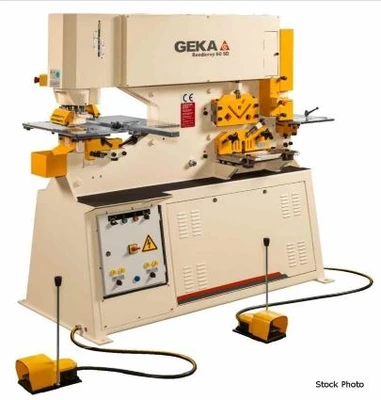

NEW GEKA USA 85SD

GEKA (NEW) MODEL BENDICROP 85SD UNIVERSAL
IRONWORKER WITH 5 WORK STATIONS

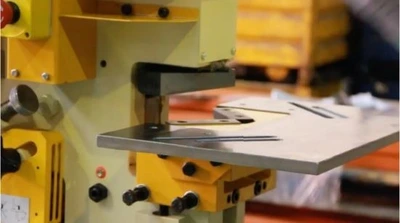

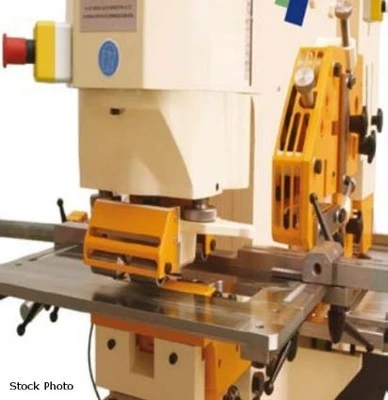

PUNCHING STATION
- 93 US TON CAPACITY
- 1-9/16" MAX. ROUND PUNCH
- 4" 6" OPTIONAL ATTACHMENTS
- 20" THROAT DEPTH
- 43" WORKING HEIGHT
- 2 STAGE FOOT PEDAL W/LOW PRESSURE ON 1ST STAGE
- WHEN STRIPPER IS OPEN, ONLY LOW PRESSURE ALLOWED
- STEEL GUARDS W/ SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
8/31 FOR UP TO 1-3/16" DIAMETER
8/32 FOR UP TO 1-1/4" DIAMETER
8/40 FOR UP TO 1-9/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK W/SUPPORTS
CAPACITY IS REDUCED TO 30 TONS
- GAUGING TABLE W/INLAID INCH SCHALES
- FRONT RO BACK MOVEMENT ON ROLLER
- PUNCH SLAG BUCKET
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- GIBBED AND GUIDED PUNCHING CYLINDER
- QUICK CHANGE PUNCH HOLDER

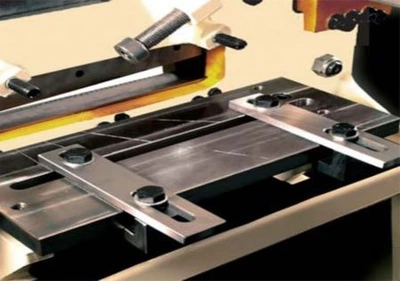

FLAT SHEARING STATION
- 36-3/16" WORKING HEIGHT
- 18-5/8" LENGTH OF BLADE
- 18" X 9/16" AT 2.5 DEGREE RAKE ANGLE
- 18" X 5/8" AT 5 DEGREE RAKE ANGLE
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES
- ANTI-TWIST DEVICE FOR FLATTER SHEARED PIECES

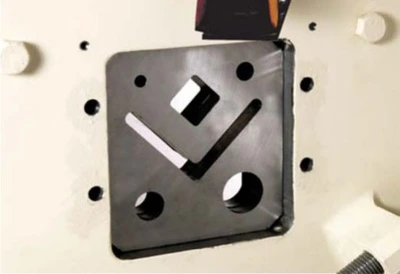

ANGLE AND SECTIONS SHEARING STATION
- 93 US TON CAPACITY
- 44-15/16" WORKING HEIGHT
- 4" X 4" X 1/2" CAPACITY
- OPENINGS FOR 1-3/8" AND 1-3/4" ROUND
- CAN SHEAR BOTH LEGS OF ANGLE AT THE SAME TIME
- NON-DORM CUT W/NO MATERIAL LOSS

NOTCHING STATION - TRIANGULAR
- 5" WIDTH PER SIDE
- 1/2" THICK
- 43-1/8" WORKING HEIGHT
- GAUGING TABLE W/INLAYED INCH SCALES
- SECTION IS PROTECTED WITH A HINGED GUARD
- EMERGENCY STOP
-PIPE NOTCHER
- PUNCHING UNIT W/ OPTIONAL GAUGING TABLE

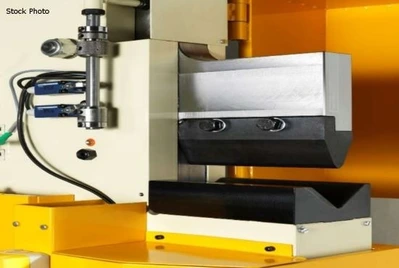

BENDING STATION
- 53-3/8" WORKING HEIGHT
- 1/2" THICKNESS CAPACITY
- 8" DEPTH
- 2" AND 3-1/2" VEE DIES
- EASY CHANGE OF LOWER DIE (WITH NO TOOLS)
- MICROMETER FINE ADJUSTMENT THE DEPTH OF STROKE
- FOOT PEDAL WITH SAFETY SYSTEM
- SECTION IS PROTECTED WITH A HINGED GUARD

FEATURES
- 2-CYCLINDER OPERATION AND 2 REMOTE FOOT PEDALS
SIMULTANEOUS SHEARING AND PUNCHING
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1-32 CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH
HEX KEYS, GREASE GUN AND PUNC HOLDERS
- MANUAL AND PARTS LIST ON USB

7.5 HP, 3 PHASE
220 VOLT

VOLTAGE SELECTIONS
CHOICE OF 3 PHASE 60HZ W/12HP MOTOR
- 200-208 VOLTS WHICH REQUIRES 80 AMPS
- 220-250 VOLTS WHICH REQUIRES 80 AMPS
-440-500 VOLTS WHICH REQUIRES 40 AMPS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCH ATTACHMENTS UP TO 4" AND 6"
- 5/27 PUNCH
- RECTANGUAL NOTCHER W/ GAUGING TABLE
- PIPE NOTCHER
- NOTCHER PUNCHING UNIT W/ GAUGING TABLE
- BENDING 20" FLIP STOP W/ 2 RETRACTABLE STOPS
Power: 208/220/440 (3-Phase)
