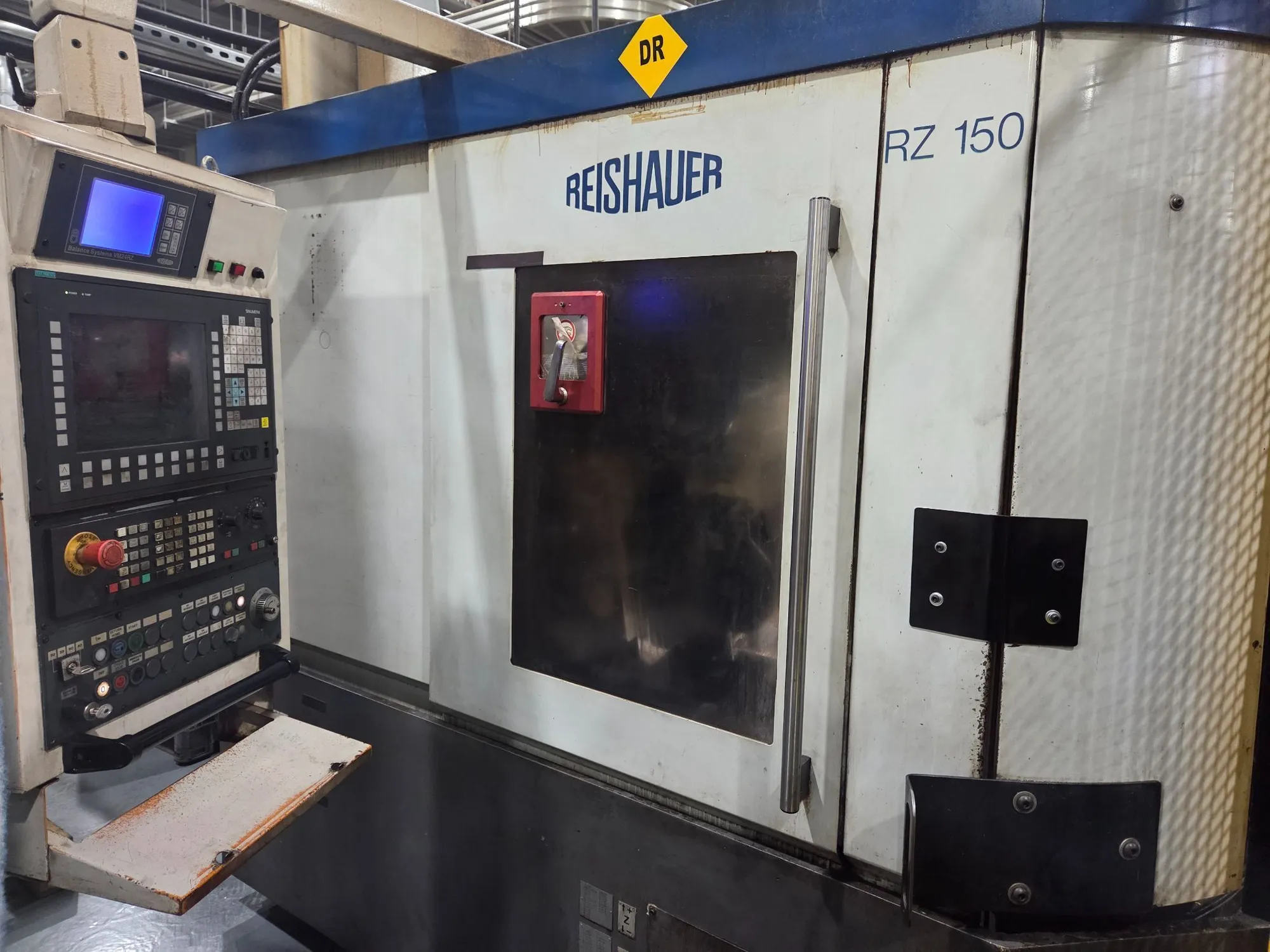

USED 2004 REISHAUER RZ 150

Reishauer Type RZ-150 CNC Gear Grinder
New 2004 Installed 2005
s/n 76012
Generating style twin spindle Gear grinder

Machine specs as follows :
Tip Diameter: 10-145 MM
Root Diameter: Approx. 10-145 MM
Number of Teeth: 5-150
Z1 Grinding Stroke: Max. 100 MM
Max. Center Distance 350 MM
Max. Center Distance Depends on Fixture
Module: 1-3 MM
Pressure Angle: 14 bis 30 Degree
Helix Angle: -40 / +40 Degrees
Max. Weight of Workpiece: 2 kg
Workspindle Nose: Face 120 MM with internal Taper similar
to DIN 69063 with nominal Diameter 75MM

Machine is equipped with the following
Siemens CNC controls
Reishauer dressing system
twin spindle
tailstocks
chiller unit
probe system
Hoffman filtration unit
Balancing system
Mist filtration
Robot interface
full documentation digitally
charts available on request

Machine can be inspected in good condition under power for
a short time only. prints available on whats app upon
request! !Machine price includes loading on your truck or
in container.

we can quote CIF Loading and shipping as well if required
at additional cost!
Visit WWW.Pisellient.com for more photos, info and video
under power!!
