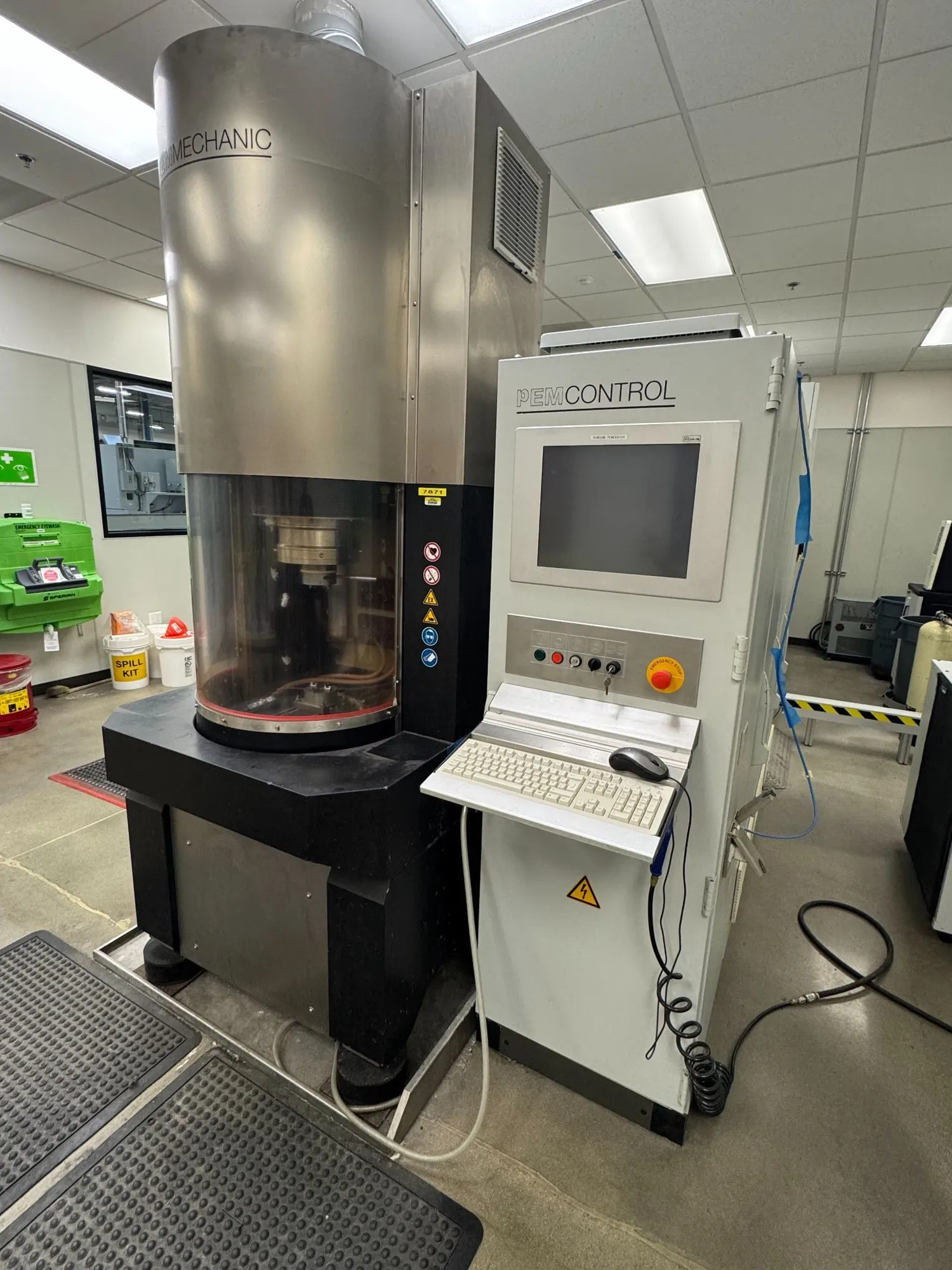

USED PEMTEC PEMMECHANIC

PEMMechanical
Feed Z-Axis 6.7"
Vibration Z-Axis +/- 0.015"
Inner Dimensions- 23.2" x 24.8" x 28.9"
Table Size 17.7" x 17.7"
Worktable Height 37.4"
Free Space Below Tool Adaptor 8.3" - 15"
Weight of Mechanical Part 4,629 Lbs
Machine Floor Space 40.4" x 96.7" x 60.8"

PEMAqua
160 Gallon Capacity
Max Pressure P = 145 psi
Continuous Filtration
Dimensions 117" x 95" x 131"
Weight 3,250 Lbs

PEMPower
AC - DC Transformer/rectifier to Generate
Interim Non-regulated Voltage U = 25V/DC
Maximum Continuous Current of I = 300 A
Power Supply Voltage U = 400 V AC 3/N/PE-5 wires
Tolerance max. +6%/-10%
Power supply P = 14 kW (P = 0,5 kW)
Current I = 16 A (I = 4 A)
Main fuse I = 20 A (I = 16 A)
Cross section size of wires 5x 9AWG (5x6² mm) 3x 15AWG
Dimensions 31.5" x 31.5" x 78.4"
Weight 680 Lbs

PEMControl
PEM Hardware w/ 17" Screen
Dimensions 29.9" x 11.8" x 29.9"
Weight 265 Lbs
