(2) High Speed Machining Center Available
| X | 30" | 762 mm |
| Y | 15" | 381 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Control | CNC | CNC |

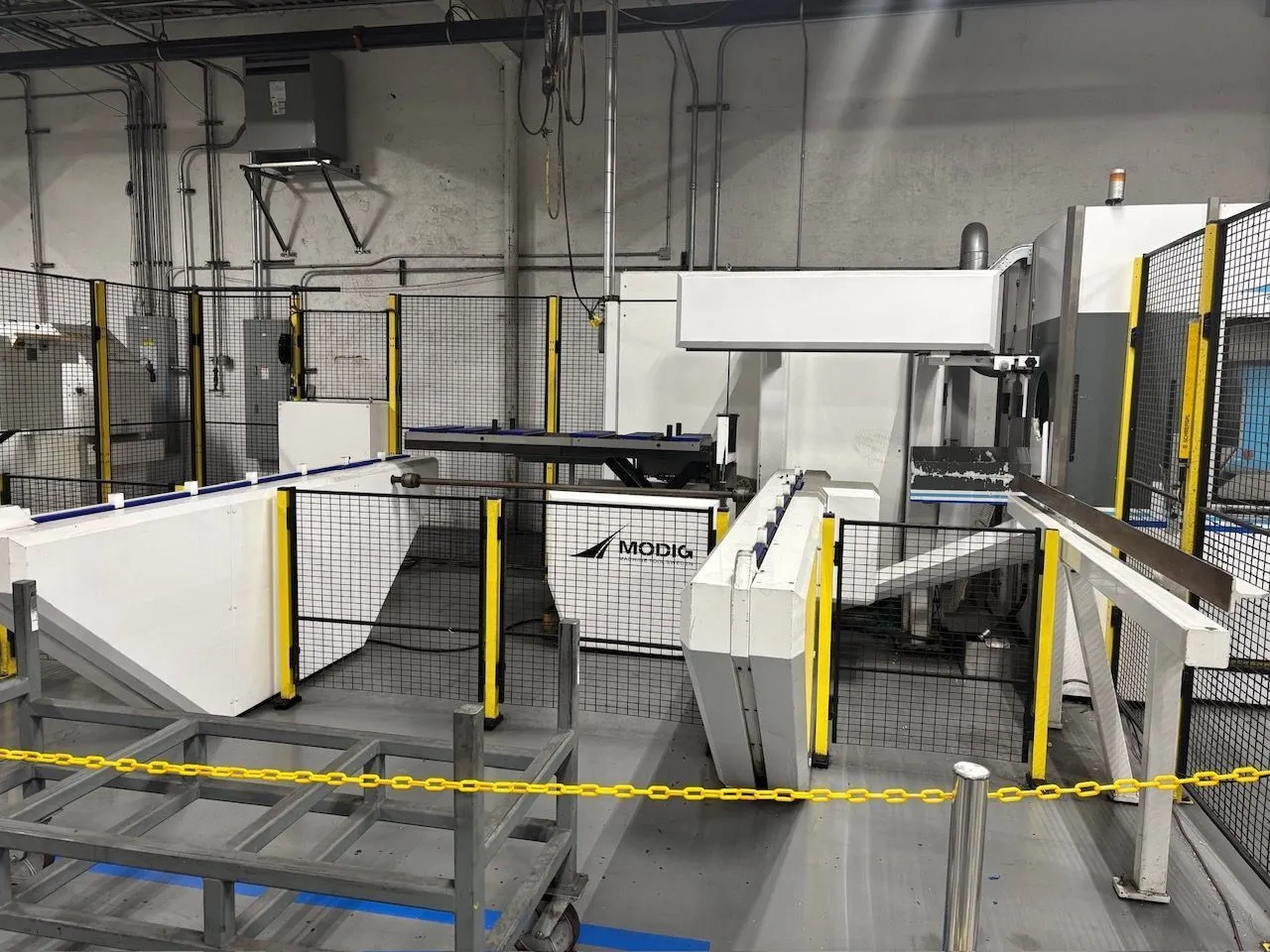

Modig MD7200 Profileline 5 Axis Vertical Profile Line
Rotary Table Size: 15.74” Diameter x 7.87” Bore
Spindle Nose to Table Top (Max / Min) 25.90” / 5.90”
Distance Spindle to Center of Rotary (Min/Max) 0 – 14.96”
Overhang Spindle to Column 15.55”
Left Rotary Table Slide Travel 39.3”
X-Axis Travel: 29.52”
Y-Axis Travel: 15.87”
Z-Axis Travel: 19.68”
Rapid Traverse (X&Y/Z) 945 / 787 ipm
Number of ATC Stations: 24 stations
Spindle Taper CT 40
Spindle Motor: 20 hp.
Maximum Spindle Speed 10 – 20,000 rpm
Machine Electrics: 480V/3Ph/60Hz
Machine Weight: 19,000 lbs. (Approx)
Thru spindle coolant
Automatic infeed unit designed for custom profile
Tool measuring probe
Infeed conveyor system to load custom profiles
Ambient coolant control
