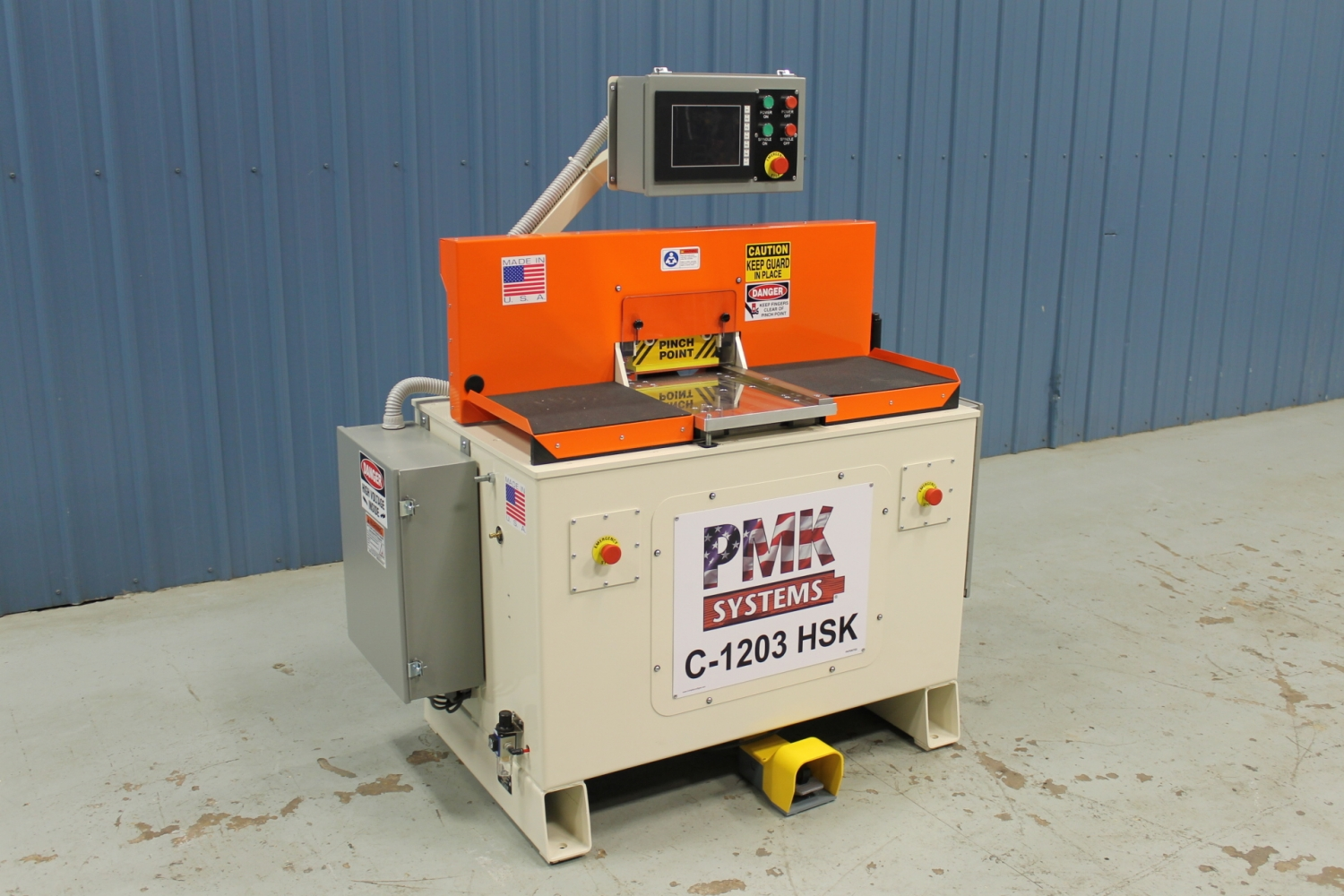

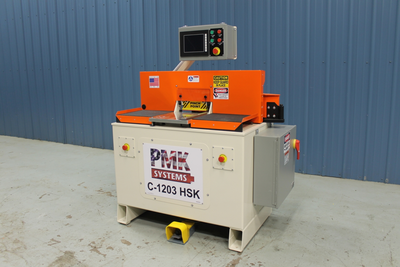

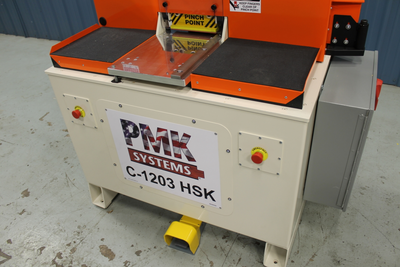

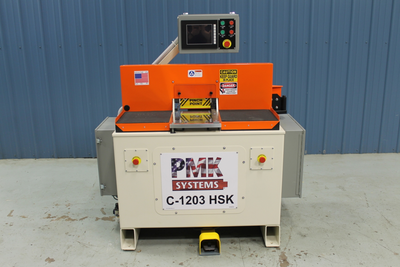

PMK Systems Model C-1203 PLC with HSK Quick Change Spindles With 8" Touch Screen Monitor & Direct Drive Spindles
Chip free coping or end-matching of squares or profiled parts without the need of a back-up piece.
(2) HSK Direct Drive Counter Rotating Spindles, Diameter 1 1/4"
(4) HSK 63F SPINDLES/TOOL HOLDERS
Tool holder / Milling arbor 1.25" Length of spindle 55mm, 2.165"
Both spindles direct drive rotating from 6000 to 9,000 rpm (variable speed) controlled with PLC & monitor.
(2) Direct Drive 10hp Motors, 460 - 480 volt only

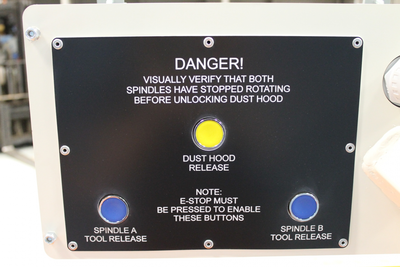

New safety interlock safety hood, which will not open till spindles have stopped rotating.
NEW Safety Hood with glass lenses for checking rotation of spindles.
Maximum cutter diameter 5" OD, Minimum Cutter diameter 3.5" OD.
Maximum SIZE of part 1" thick and 9 1/2" wide.
Minimum length of part 3"
Maximum depth of cut 3/4"
Minimum width of part is determined by the O.D. of the cutter and if the part is profiled or not.
Unlimited length of part
The C-1203 has External flow valve that allow you to adjust the speed of the sliding table according to the thickness, width & density of the wood you are profiling.
Cycle time adjustable from 4 to 10 seconds

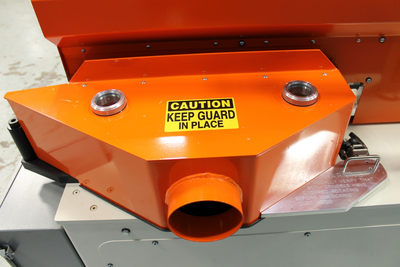

Dust Hood with 5" port, CFM required 1000
THK style rails for guidance of carriage stroke and hold down clamp.

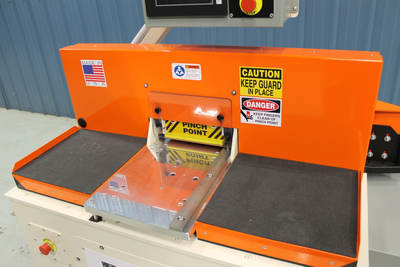

Side pressure clamp insures proper alignment with fence.
The C-1203 meets UL & CSA Electrical Standards.

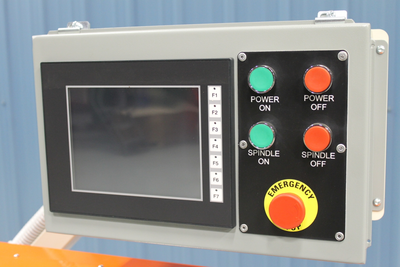

Now with PLC Micro Processor
Machine weight 1,457 lbs. (+/-)
