NEW SYSTEMS C-1203

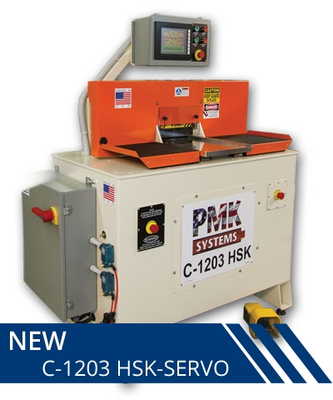

PMK Systems Model C-1203 Servo HSK Coping/End-Matching Machine
2 direct drive 7.5HP motors
10" Touch Screen Monitor
2 servo motors to raise and lower spindles
1 servo motor to move the back fence in & out
Max part size up to 1" thick & 9½" wide
Depth of cut depends on profile and density of wood
4 HSK 63F tool holders
1.25" diameter spindles
Has the capacity to stack tooling
Stores up to 200 different pre-programed tooling settings
Meets UL & CSA Electrical Standards
460 volt only
