Pillar CMJ-HSK Coping/Tenoning Machine

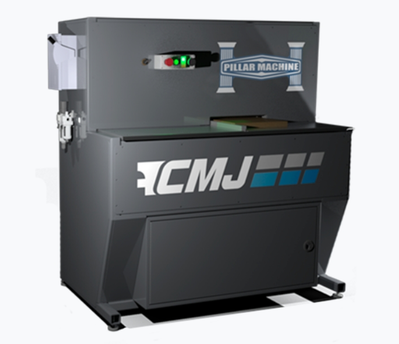

Pillar Model CMJ-HSK Coping/Tenoning Machine
The CMJ-HSK is a machine designed for chip free coping or tenoning of either square or profiled parts without the need for a back-up piece or chip breaker
In an 8-second-cycle it can process either two top/bottom rails or one mid rail that is pre-profiled
The CMJ-HSK has 2 counter rotating vertical spindles
The first spindle clears the leading edge of the rail while the other spindle moves in and processes the remainder of the parts width
2 independent spindle motors that have a quick tool change capability
If you are running multiple inside profiles per day, this will save you hours of time
The CMJ-HSK will provide a clean,
tear-out free, end coped/tenoned part every time
The CMJ-HSK is a machine designed for chip free coping or tenoning of either
square or profiled parts without the need for a back-up piece or chip breaker.
In an 8-second-cycle it can process either two top/bottom rails or one mid rail that is
pre-profiled. The CMJ-HSK has 2 counter rotating vertical spindles. The first spindle
clears the leading edge of the rail while the other spindle moves in and processes
the remainder of the parts width. This version of the CMJ has 2 independent spindle
motors that have a quick tool change capability. If you are running multiple inside
profiles per day, this will save you hours of time. The CMJ-HSK will provide a clean,
tear-out free, end coped/tenoned part every time
Standard Features
8" part width capacity
10 second cycles
Counter rotating spindles
Scissor lock clamp
Auto Feed Carriage
Dual 10 HP HSK Spindles
5/8" max cut depth
5" max cutter head diameter
3" minimum part length
Material thickness: 5/8" to 1"
Spindle type is HSK 63F
Options
12" part width capacity
Tigerstop integration
Z axis control for stacked tooling
Increased thickness for passage doors
