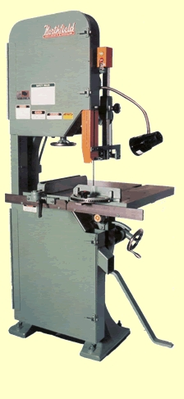

Northfield Heavy Duty 20" Band Saw

Northfield Heavy Duty 20" Band Saw
General Specifications:
Wheel Face : 1-3/8"
Table Size: 25 x 25"
Front Edge of Table to Teeth of 3/8" Blade: 9-1/2"
Capacity Under Guide: 14"
Table Tilts to Right : 45 degrees
Table Tilts to Left : 10 degrees
Horizontal Capacity: 19-1/2"
Table Height: 39-1/2"
Wheels: Aluminum Disc
Brake: Lower Wheel Foot Operated
Guides: Carter CP Size 0
Blade: one 3/8" furnished
Circumference of 20" Wheel is 5.236 ft
Direct Motor Drive: 2 HP - 900 RPM
Available: HP and RPM
(2 HP - 1200 RPM)
(3 HP 900 RPM)
(3 HP 1200 RPM)
(5 HP 1200 RPM)
Belt Drive : 2 and 3 HP
HP and RPM: Any Single RPM from 300 to 1200
Additional Options:
Left hand machines
Two wheel foot operated mechanical brakes
Upper and lower automatic electric brakes
18, 24 & 36 inch under guide
Constant speed belt drive assemblies
3 to 1 variable speed drive assemblies
Nema 12 electrics
Work light
24 or 110 volts at pushbutton
Miter gauge with square slot
Miter gauge with dovetail slot
Single face rip fence, double face rip fence
Switch for stopping power upon application of foot brake
Blade welders
Air nozzles
Hand resaw attachments
Paddock guides
Wright guides
Rolling tables
Circle cutting attachments
Single phase belt drive motors
