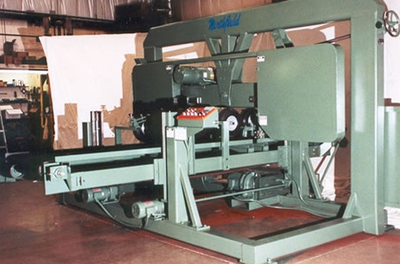

Northfield Horizontal 36" Band Saw with Tilting Blade

Northfield Horizontal 36" Band Saw with Tilting Blade
General Information:
For angle cutting, roofing buildup material used for directing waterflow on flat roofs
36" x 2" steel disc wheels with demountable steel reinforced tires
heavy duty quills
10 HP belt drive
900 RPM
automatic electric brakes both wheels
blade tilts 10° in relation to table
4' wide single belt feed conveyor powered by 5 HP variable speed drive
5" maximum stock thickness with fence and hold-down rollers
NEMA 12 electrics
Paddock guides
Dual dust outlets
General Specifications:
Wheel Face:2"
Wheel Diameter: 36" Carter Loc-on
Blade Tilts: 10° in relation to conveyor
Capacity Between Quill: 54"
Conveyor On Infeed Side Of Blade: 8'
Conveyor On Outfeed Side Of Blade: 4'
Guide: Size #20 Paddock
Brakes: Automatic brakes on both wheels
Max. Stock Thickness: 5"
Horsepower: 10 HP
Wheel Speed: 900 RPM - 8500 FPM
