NEW TIMESAVERS 3341-25-1333

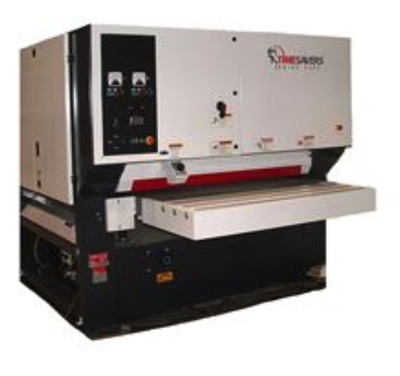

Timesavers Model 3341-25-1333 TP Four Head 52" Twin Pad Widebelt/Orbital Sander
Specifications:
Abrasive size combination head: 52 x 75"
Abrasive size orbital heads: 52 x 14"
Main motors: 30,7.5, 7.5, 7.5HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Infeed loading area: 24"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 138
Passline height: 32-38 Variable
Dust extraction: 7000 CFM (5" static pressure)
Compressed air usage: 8 CFM @ 90psi
Standard Features:
Dual Action Sanding Head: (1st head position)
Twin Pad Dual Motion Orbital Heads:(2nd - 4th positions)
Air Knife Blow-off
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum Heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support on Widebelt Head
Main Motor Percentage Watt Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Spare Platen Assemblies
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
Factory Start-up and Training
