NEW TIMESAVERS 3331-25-133

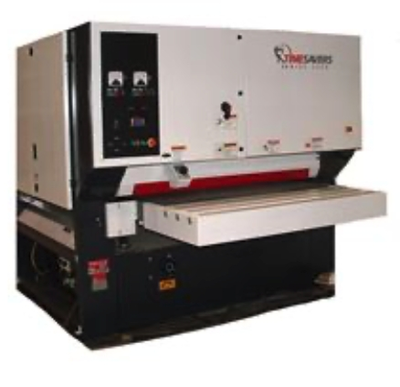

Timesavers Model 3331-25-133 Three Head 52" Twin Pad Widebelt/Orbital Sander
Specifications:
Abrasive size combination head: 52 x 75"
Abrasive size orbital heads: 14 x 52"
Main motors: 30, 7.5, 7.5 HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Infeed loading area: 24"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 120
Passline height: 32-38 Variable
Dust extraction: 5,250 CFM (5" static pressure)
Compressed air usage: 6 CFM @ 90psi
Standard Features:
Dual Action Sanding Head: (1st head position)

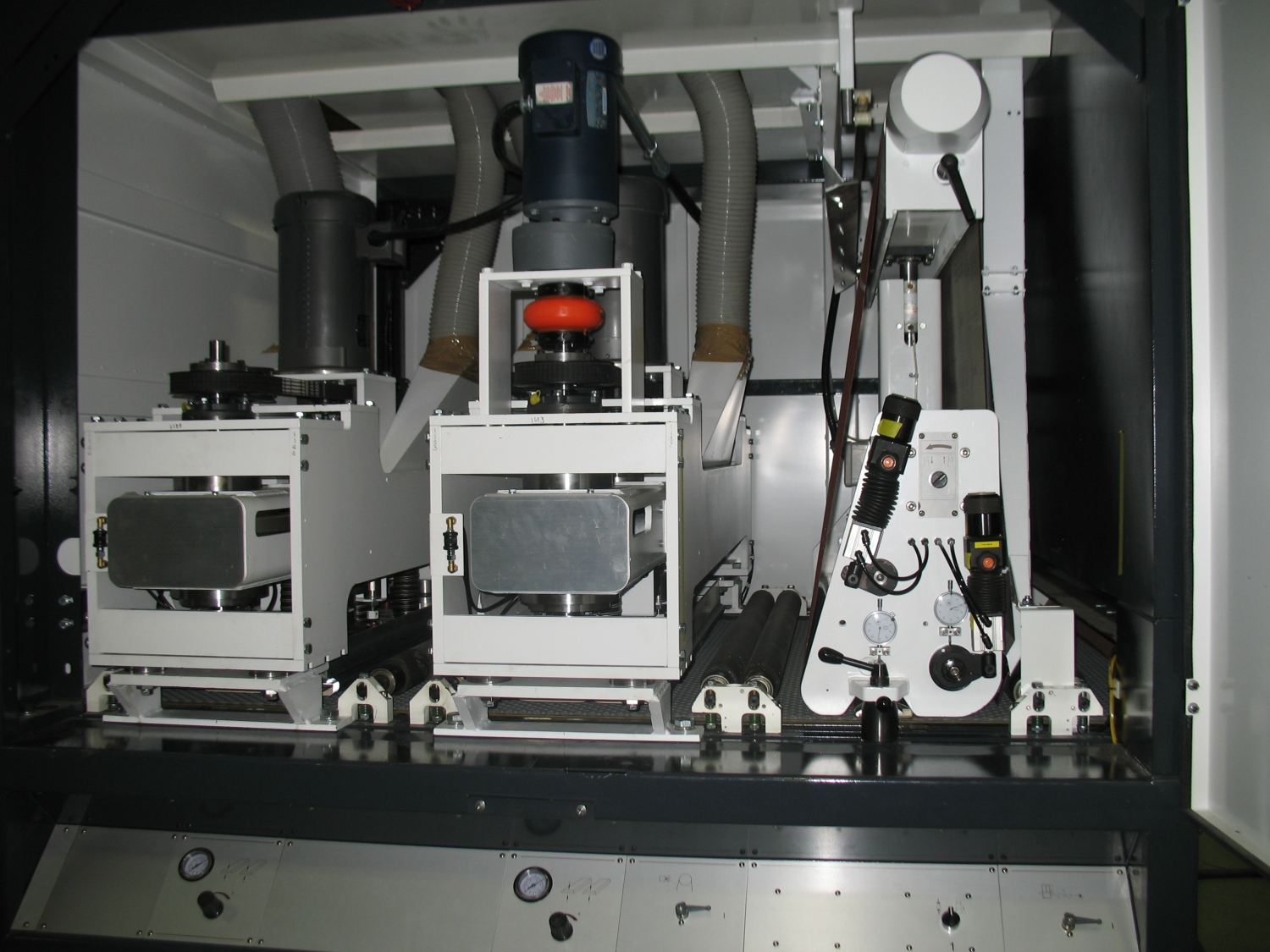

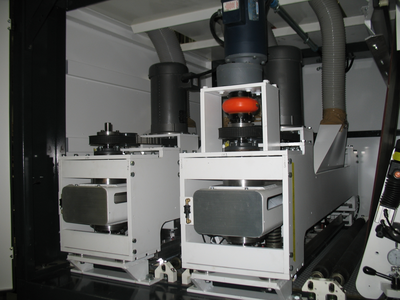

Twin Pad Dual Motion Orbital Heads:(2nd & 3rd positions)
Air Knife Blow-off
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum Heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support on Widebelt Head
Main Motor Percentage Watt Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Spare Platen Assemblies
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
A/C Frequency
Vacuum Conveyor Bed
Factory Start-up and Training
