NEW TIMESAVERS 3331-05-334

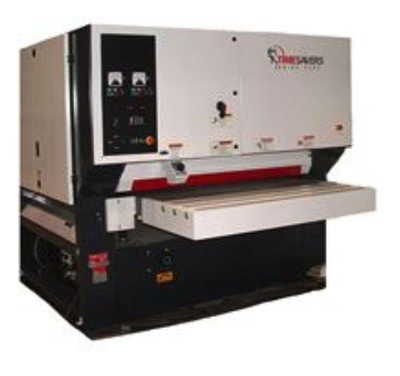

Timesavers Model 3331-05-334 TP Three Head 52" Twin Pad Orbital/Brush Sander
Specifications:
Abrasive size (orbital heads): 10.5 x 52"
Abrasive size (brush head): 12" diameter
Main motors: 7.5, 7.5, 3 HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 5"
Infeed loading area: 24"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 69
Passline height: 32-38 Variable
Dust extraction: 5,250 CFM (5" static pressure)
Compressed air usage: 6 CFM @ 90psi
Standard Features:
Twin Pad Dual Motion Orbital Head:(1st & 2nd positions)
Air Knife Blow-off
12" Diameter Brush Head: (third head position)
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Centralized Control Panel
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Part Set-up Device
Spare Platen Assemblies
U.L. Listed Components
A/C Frequency
Vacuum Conveyor Bed
Factory Start-up and Training
