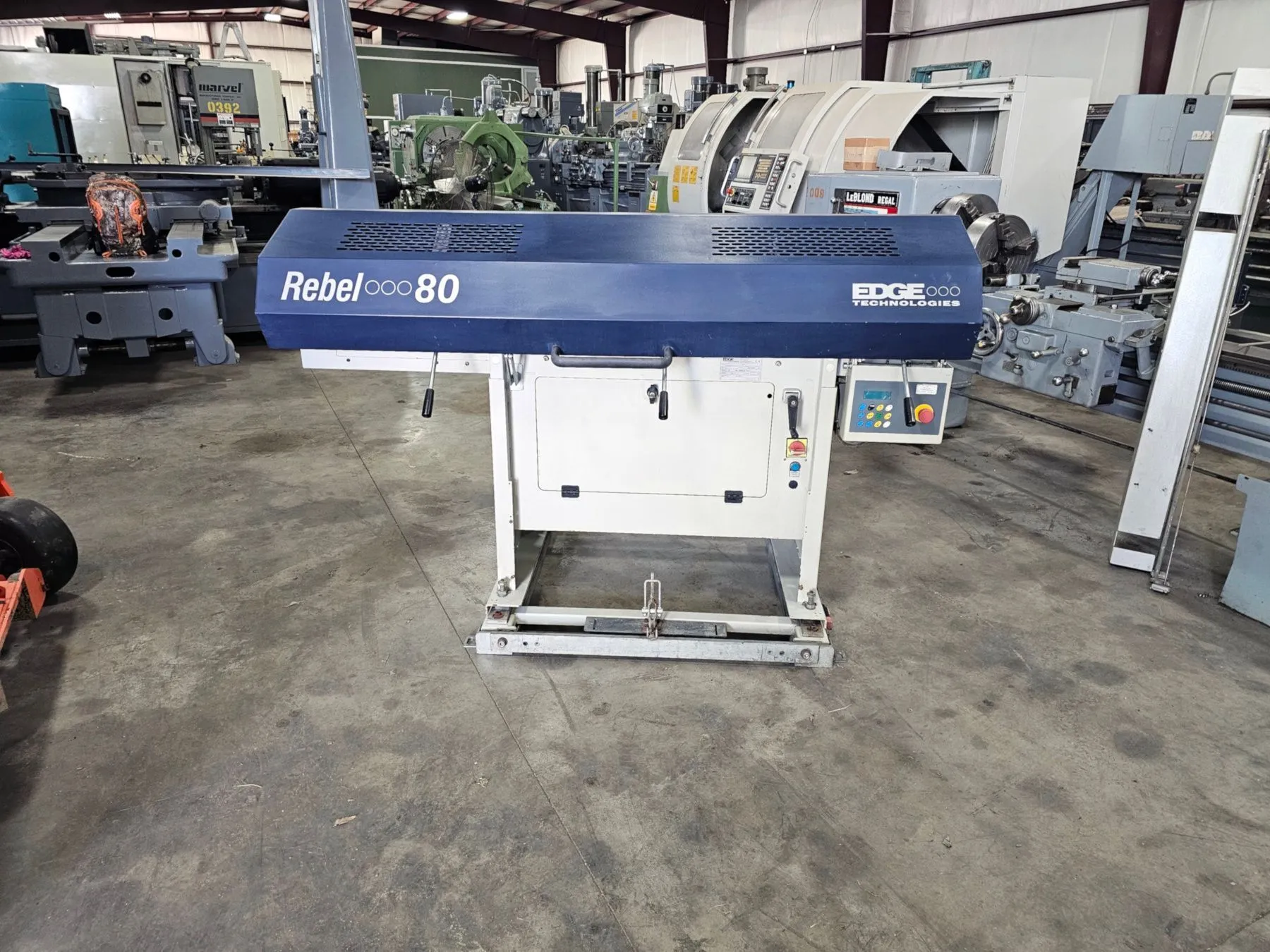

USED 2011 EDGE TECHNOLOGIES Rebel 80 Mega 580

Edge Technologies Rebel 80 Bar-feed
Specifications (subject to buyer verification):
Bar diameter capacity.....................................0.315” to 3.150”
Maximum bar length........................................60” (Not to Exceed Spindle Length)
Magazine rack capacity....................................30” (60 ½” bars, 30 1.0” bars, 15 2.0” bars)
Bar weight................................................175 lbs. per bar not to exceed 1500 lbs. total
Power consumption.........................................1 kW
Operating voltage.........................................200-230VAC/60Hz – 3-phase
Control voltage...........................................24VDC
Centerline height.........................................37.4” to 53.15”
Machine footprint.........................................84” X 48”
Machine weight............................................1,100 lbs.
Axis Axial Shift..........................................Yes
Extended V- Tray To Reach Back Of Right Spindle...........Yes
Coolant Pan In V Tray.....................................Yes
