NEW TIMESAVERS 3331-25-133

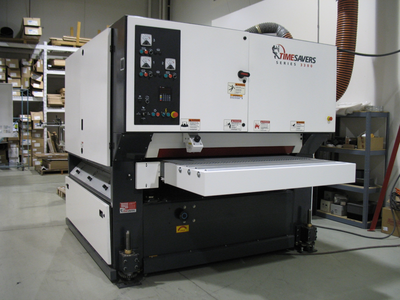

Timesavers Model 3331-25-133 SP Three Head 52" Single Pad Widebelt/Orbital Sander
Specification:
Abrasive Size Combination Head: 52 x 75"
Abrasive size (orbital heads): 52 x 14"
Main motors: 30, 5, 5HP
Maximum width stock: 51"
Maximum thickness opening: 6"
Infeed loading area: 24"
Feed speed: 10-30 FPM
Passline height: 33-38", Variable
Dust extraction: 5250 CFM (5" static pressure)
Compressed air usage: 6 CFM @ 90psi
Standard Features:

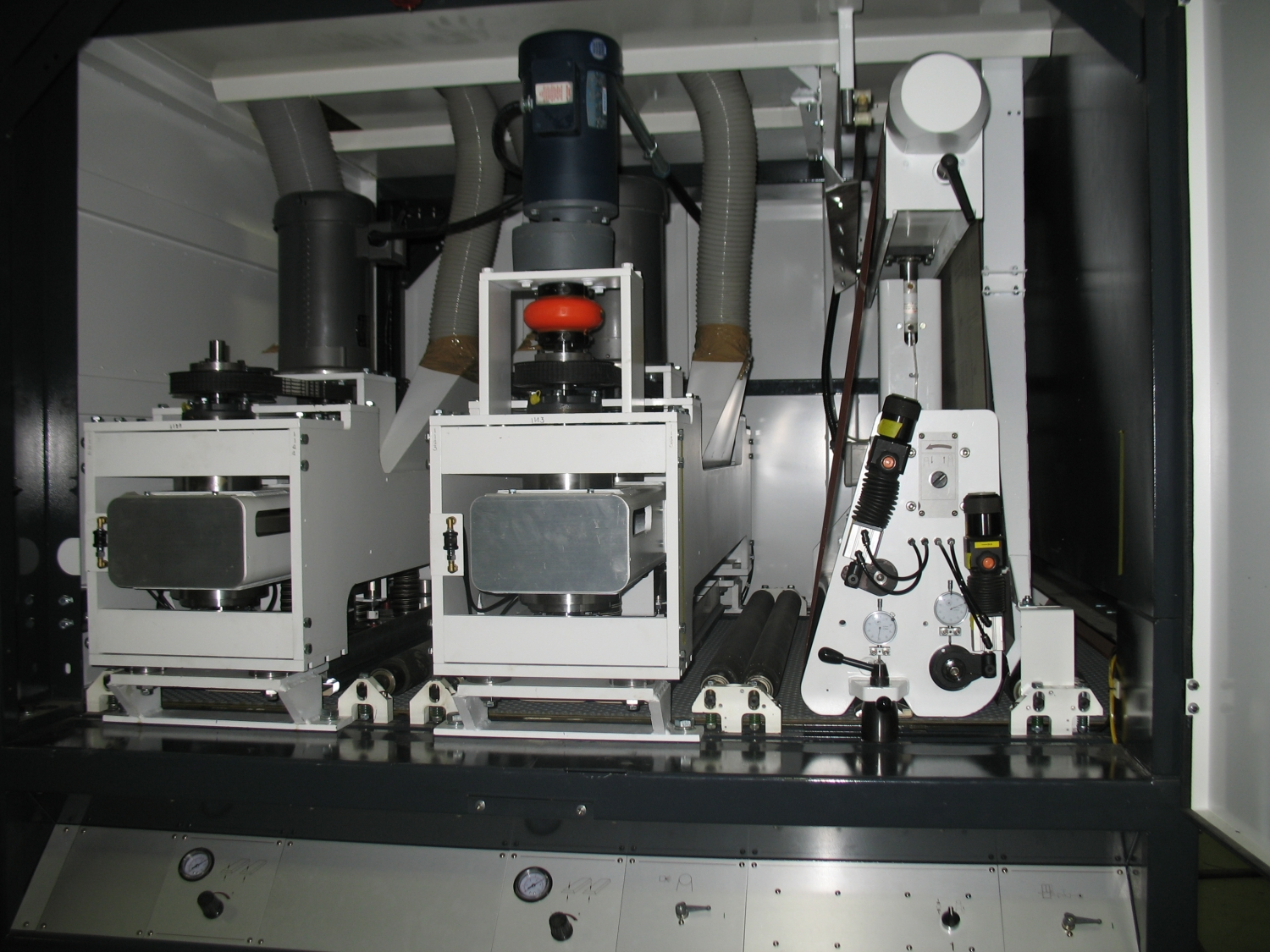

Dual Action Sanding Head: (1st head position)
Single Pad Dual Motion Orbital Head:(2nd & 3rd positions)
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum Heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support on Widebelt Head
Quick Change Abrasive on Orbital Heads
Main Motor Percentage Watt Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
Factory Start-up and Training
