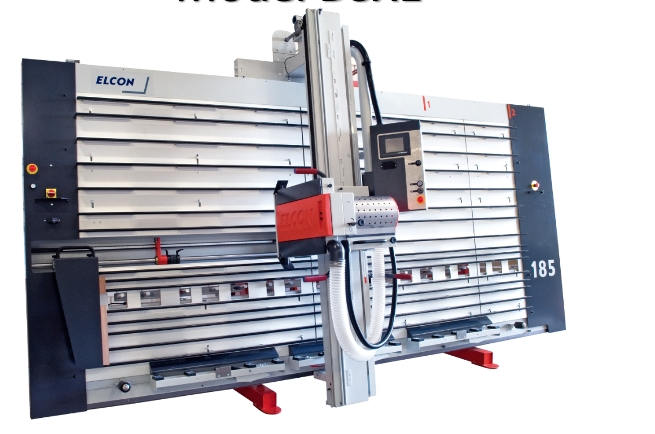

Elcon Model 185 DSXE Advanced Automatic
Machine Overview
Ridged, welded box steel frame with four vertical cutting positions
Round upper guide rail with concave bearings for smooth operation
Automatic movement of saw head in X and Y axis
Automatic bottom reference cut
7.5hp motor
12" blade capacity
Double-cut plunge scoring system; mechanically selectable w/auto execution
Advance clamping system, 2 clamps for cutting height 1,700mm, clamping of 50mm thick
Automatic shifting panel support grid
Stepless variable speed
Pneumatic plunge of saw head
Pneumatic mid-fence
Two pneumatic panel clamps on bottom
Measuring stop extension
Digital scale vertical and horizontal
Both English and metric scales standard
Saw head is counter balanced with chain & safety chain
Built-in dust shroud with pipe ready for dust collection
Safety interlocks throughout machine
Compressed Air Curtain
Horizontal cutting capacity: 163"
Vertical cutting capacity: 69"
Motor: 7.5 hp, 3 phase
Blade size: 12" (included)
Requirements:
Electrical connection: 26 amps @ 220 volt, 3 phase
Air: 90 psi
Dust Collection: One 4-3/4", one 4" connection @ 1900 cfm
