NEW BAKER P.A.Q.

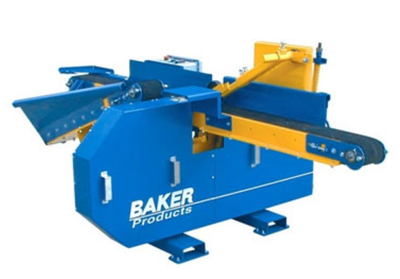

Baker Model P.A.Q. Single Head Band Resaw
Baker single cut "PAQ" band resaw with return, electric complete with a totally enclosed fan cooled 20HP motor, Nema 12 enclosure, starter, motor overload protection and all is prewired. Machine also complete with a variable speed hydraulic feed system including the pump, tank, flow control, valves and plumbing.
Number of Heads: 1
Number of Blades: 1
Number of Cuts: 1
Guides: Baker's Revolutionary Octaguide System (8x more wear life)
Main Drive Motors: One 20 HP TEFC (11 kw TEFC)
Electrical: All 3-phase voltages available
NEMA 12 enclosure with starter and overload protection
Feedworks: Hydraulic pump, driven from head motor, complete with flow control valve, filter, and tank; rough-top conveyor belt and non-powered hold-down included
Feed Speed: Variable, 0 - 120 fpm (6.1 - 36.6 mpm)
Conveyor Width: 6 in. (152 mm)
Material Capacity: 8 in. x 12 in. (203 mm x 305 mm)
Band Blades: One 0.035 in. x 1 in. x 13 ft. 2 in. hardback
Band Wheels: Two 28 in. diameter, dynamically balanced, all steel band wheel, providing fly-wheel effect while cutting
Blade Tensioning: Mechanical, spring
Optional simple slide return system
Optional powered hold-down
Optional 12" wide powered slide return conveyor
