NEW NORTHTECH NT-HBR300PBX

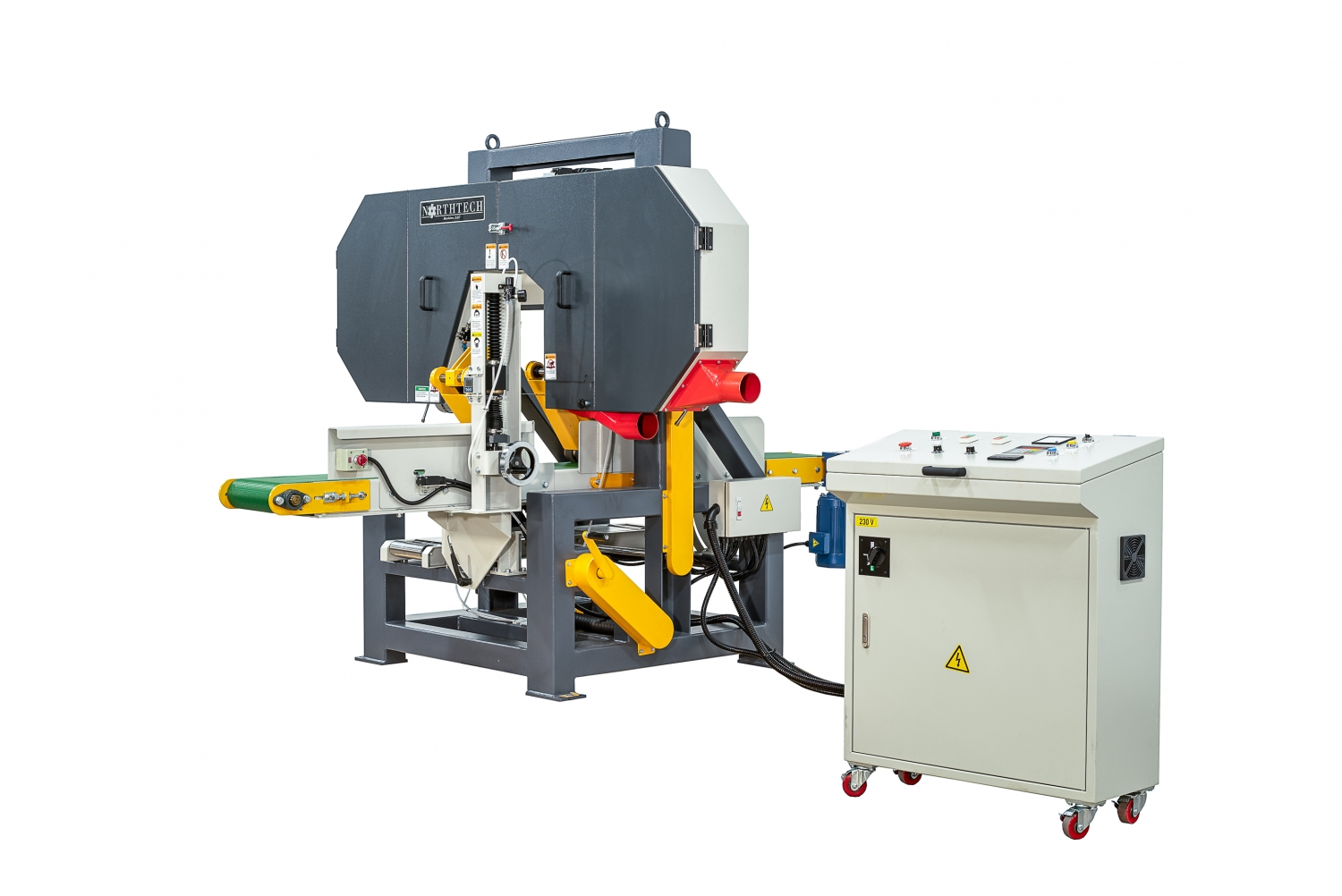

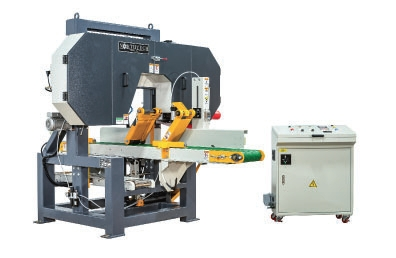

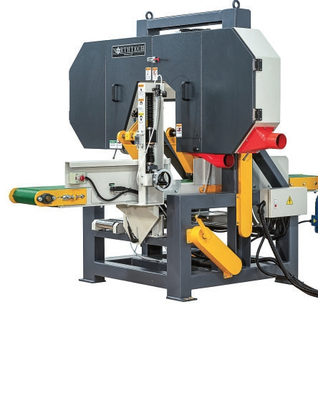

Northtech NT-300PBX Horizontal Band Resaw

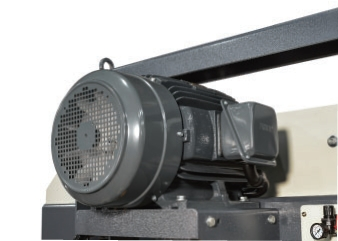

Main Motor: 40HP
Max Workpiece Size (WxH): 600mmx300mm (23"x12")

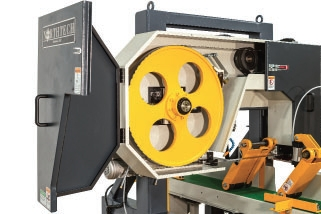

Saw Wheel: 2"x28"
Saw Blade Size (LxW): 188"x2" Carbide Tipped Blade

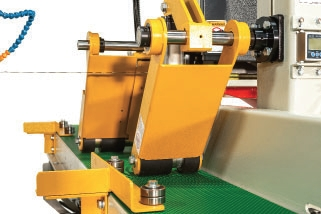

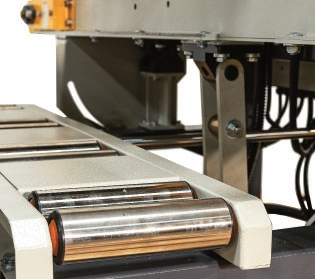

Pneumatic Hold Down wit Rubber Rolls
Minimum Cutting Length: 19" Hold Down to Hold Down
Minimum Cutting Width: 1-1/2"
Maximum Cutting Width: 23"
Minimum Cutting Thickness: 0.170
Maximum Cutting Thickness: 12"

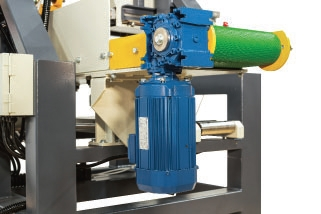

2HP Inverter Controlled Variable Feed of 0-130FPM
11"x217" Feed Conveyor Table
Controlling Blade Tension: Air/Hydraulic Compensating System
0-45 Degrees of Tilt

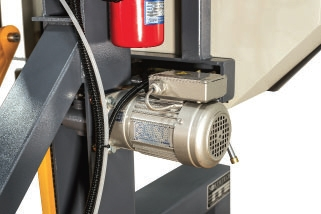

1/4HP Motor with a 535 Digital Position Control
Inverter Blade Speed Control (4,700-6,700FPM)
Blade Size: 2"x180" Carbide Tipped Blade
(2) 4" Port requiring 436CFM at each point of extraction
Available in 230/460V 3PH 60Hz
