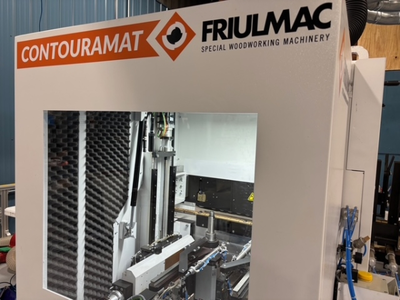

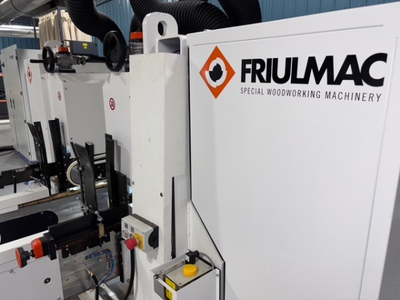

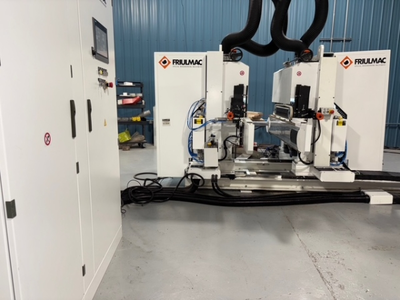

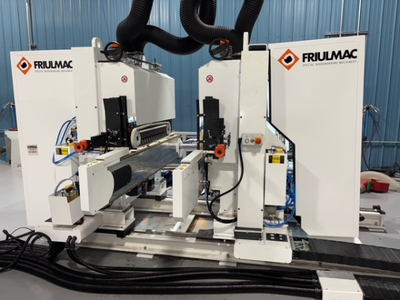

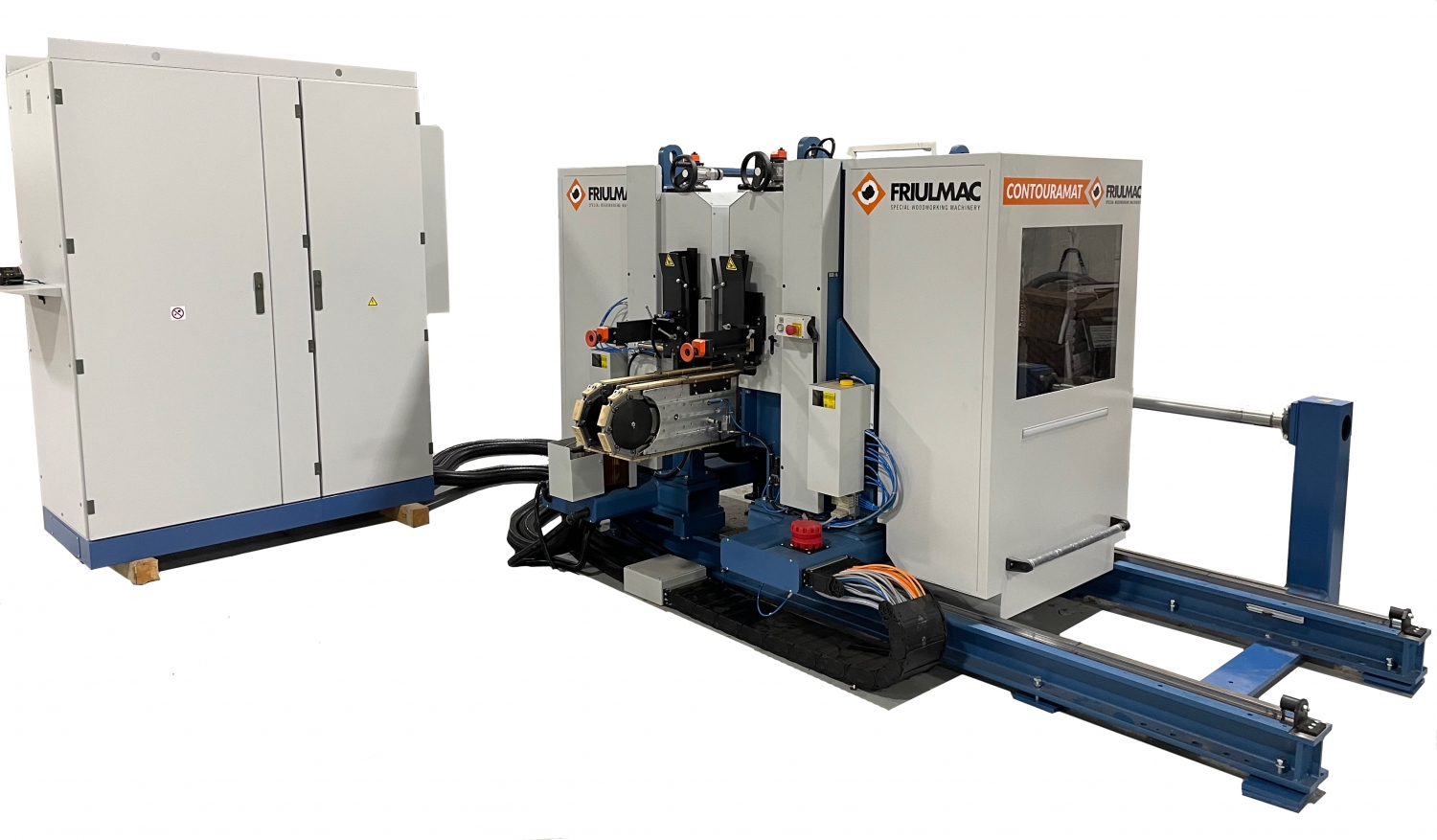

NEW FRIULMAC CONTOURAMAT-HS

Friulmac Model Contouramat HS 1.5 Automatic Double End Cut & Profiling Machine.
Max. Capacity: 40 Pieces/Minute, Depending on Element Measures, Extra Material, Tooling, Etc.
Working Length: 5" - 59.05"
Working Width: 1.96" - 7.87"
Working Thickness: 0.47" - 1.37"
Moveable Shoulder Open/Close via Rack & Pinion with Inverter-Controlled Electric Motor
Magnetic Strip w/ Sensor to Indicate Position of Moveable Shoulder
Vertical Hopper/Magazine
Precision Feed Chains with Cast Steel Components
Non-Marking Top Pressure Feed Belts
Operator Control Offers Automatic Adjustment of Machine Opening, Feed Speed, In/Out & Up/Down Working Unit Positions, and On/Off of Working Units
Variable Speed Feed from 6 - 25 m/min
Station #1: Left & Right Jump Profiling Units, 40mm Diameter, 6kW Motor Power
Station #2: Left & Right Profiling Units, 40mm Diameter, 6kW Motor Power
Working Units Accept HSK63F Tool Holders
460v, 3ph
