NEW TIMESAVERS 3341-45-1333

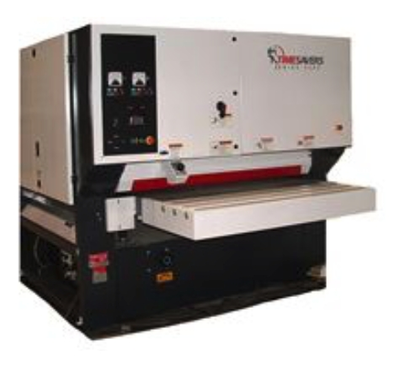

Timesavers Model 3341-45-1333 Four Head 52" Orbital Sander
Specifications:
Abrasive size combination head: 52 x 103"
Abrasive size orbital heads: 52 x 10.5"
Main motors: 30,7.5, 7.5, 7.5HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6" x 6"
Maximum thickness opening: 6"
Infeed loading area: 24"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 120
Passline height: 41" Constant
Dust extraction: 9540 CFM (5" static pressure)
Compressed air usage: 6 CFM @ 90psi
Standard Features:
Dual Action Sanding Head: (1st head position)
Twin Pad Dual Motion Orbital Head:(2 , 3 & 4th postion)
Dual Infeed and Dual Outfeed Holddown Rolls
Variable Speed Conveyor Drive
Centralized Control Panel
Spare Platen Assemblies
Main Motor Percentage Watt Meter
Motorized Thickness Adjustment
Four Jack Bed Construction
Infeed Stop Bar
Hour Meter
Infeed Conveyor Extension
U.L. Listed Controls
Vacuum Conveyor Bed
Timesavers Graphical Interface HMI
A/C Frequency
Factory Start-up and Training
