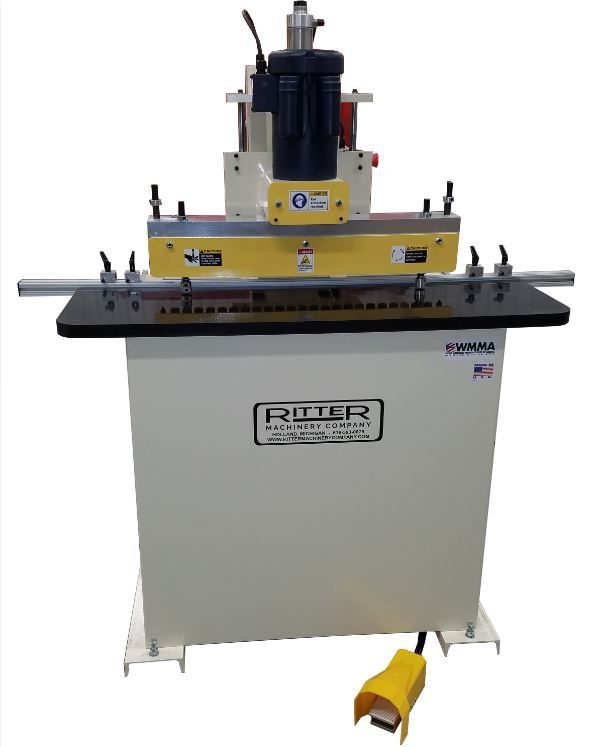

Ritter R19F3 Vertical 32mm Drilling Machine

Ritter Model R19F Vertical 32mm Drilling Machine
23-Spindle Drill Head
Gear Driven Spindles on 32mm Centers
Index Pins
3 HP Spindle Drive Motor, TEFC
10mm Bored Collets
(12) Right Hand, (11) Left Hand
12" Throat Depth
60" Back Fence With (4) Stops
24" X 48" Work Table Surface
(2) Spring Operated Hold Downs
Wired 3-Phase 240/480 Volt, 60 Hz.
Pneumatic Driven Boring Cycle
Tooling Not Included
Crated Dimensions: 45" X 80" X 78" H and 740 Lbs
Options: R19F1 - Single Phase Machine
