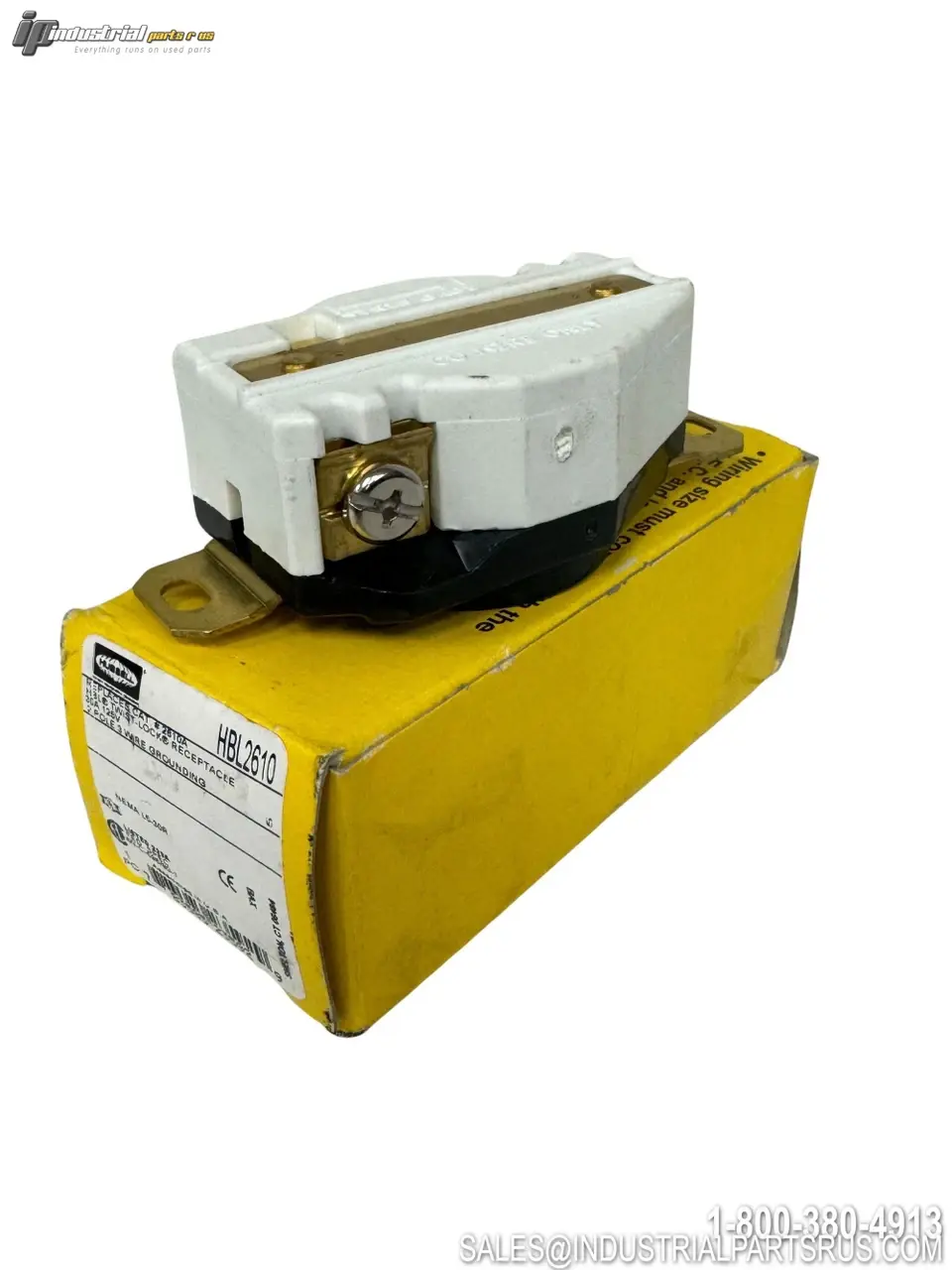

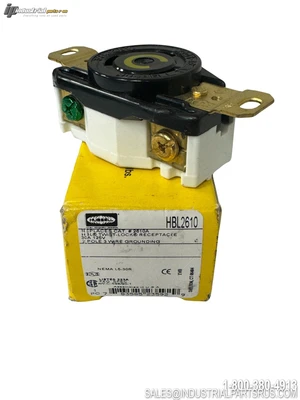

NEW HUBBELL HBL2610

The Hubbell HBL2610 is an industrial-grade Twist-Lock® single flush receptacle rated at 30A, 125V AC with a NEMA L5-30R configuration. It features a high-impact, abuse-resistant black nylon face and a 2-pole, 3-wire grounding design with screw terminal connections, accommodating back and side wiring. This receptacle is part of Hubbell Wiring Device-Kellems' HBL series and is UL Listed, CSA certified, and RoHS compliant for heavy-duty industrial applications.
Specification
Value
Brand
Hubbell Wiring Device-Kellems
Model / Part Number
HBL2610
Product Type
Twist-Lock Industrial Flush Receptacle
NEMA Configuration
L5-30R
Amperage
30A
Voltage
125V AC
Horsepower Rating
2 HP
Wattage
3750W
Number of Poles
2-Pole
Number of Wires
3-Wire Grounding
Number of Phases
1 Phase
Connection Type
Screw Terminal
Wiring Method
Back and Side Wired
Conductor (Wire) Size
12–8 AWG
Face Material
High-Impact Nylon
Base Material
Thermoplastic / Nylon Polyester (RTP)
Color
Black
Mounting Type
Flush / Recessed
Mounting Hardware Material
All-Brass (Mounting & Grounding System)
Grade
Industrial
Series / Sub-Brand
Twist-Lock® / Insulgrip
Enclosure / Environment Rating
NEMA 4X/12/IP20 (Indoor Dry; Protected)
Operating Temperature
-40°C to +75°C
Dielectric Strength
Withstands 2,000V minimum
Dimensions (L x W x H)
3.28 x 1.70 x 1.31 in
Certifications / Standards
UL 498, CSA C22.2 No. 42, Federal Spec W-C-596, NEMA WD1/WD5, RoHS Compliant
We warranty all items for 30 days from date of purchase.
