NEW MAGGI SYSTEM

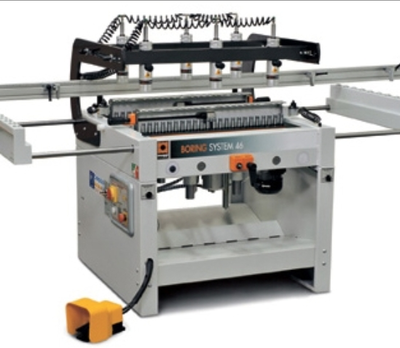

The Maggi System 46 Boring Machine

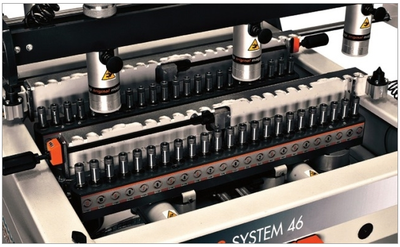

Provides (2) 23-spindle heads on 32 mm centers
Front end adjustment for quick and easy set-up
(2) 1.5 HP 2,800 RPM motors; max.
Boring depth is 2-1/16" (55 mm)
Side depth counter system; extractable 400 mm support rollers for long panels
Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm)
Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps
This machine can be used for single or double row line drilling
Uses 24 LH (red) and 22 RH (black) boring bits (not included)
Working air pressure 94 psi
230v, 3ph
