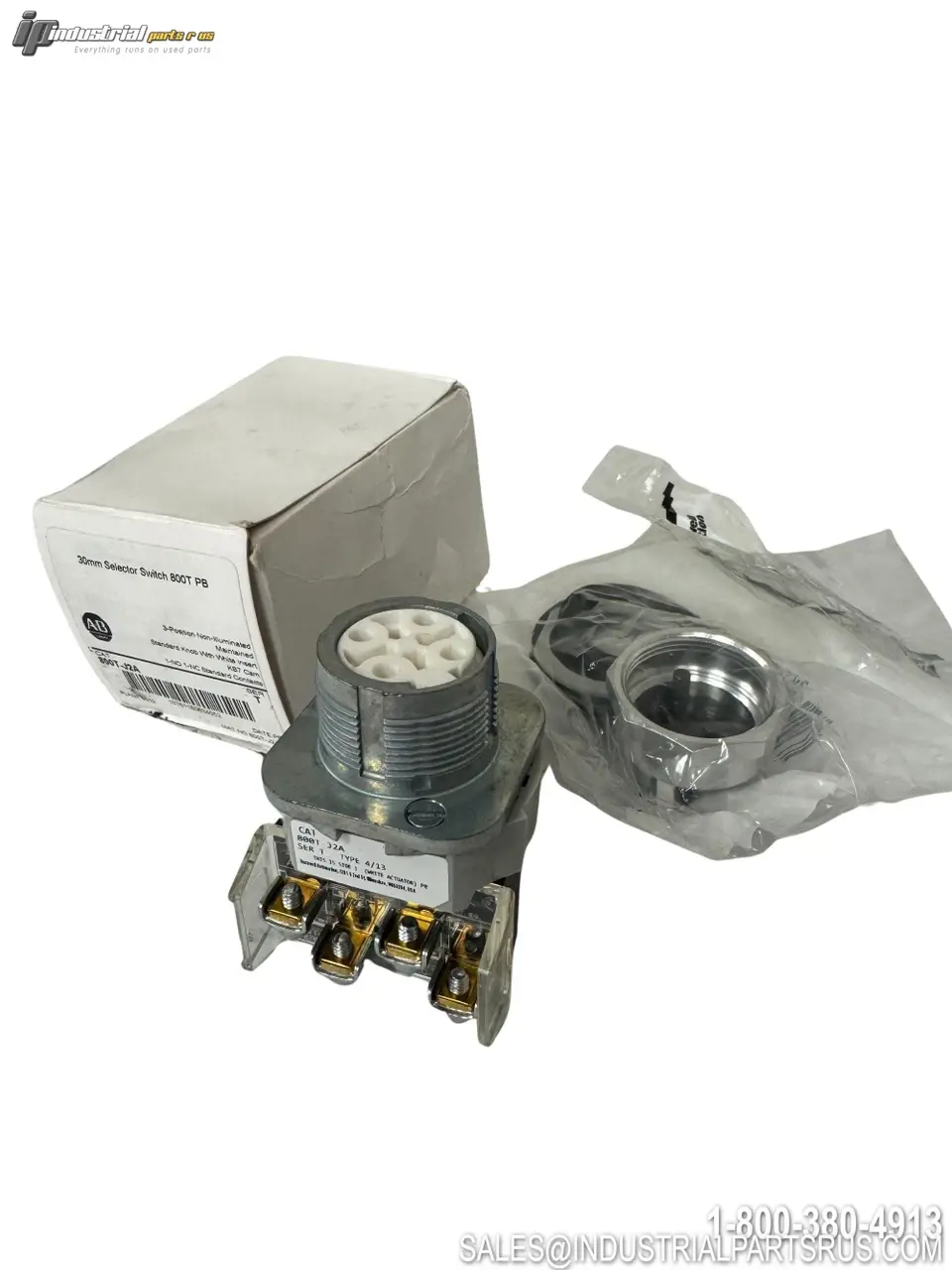

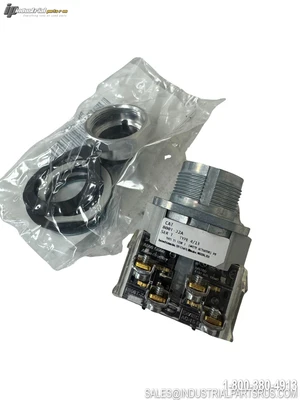

NEW ALLEN-BRADLEY 800T-J2A

The Allen-Bradley 800T-J2A is a 30.5mm three-position maintained selector switch from the 800T Bulletin series, designed for industrial panel control applications. It features a standard black knob with white insert and a KB7 cam mechanism, providing stable latched switching in all three positions with 1 normally open and 1 normally closed contact block. Rated for 600V and 10A AC, this non-illuminated device meets NEMA Type 4/13 enclosure standards and carries UL, CSA, CE, CCC, KC, C-TICK, and Marine certifications.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
800T-J2A
Product Type
3-Position Selector Switch
Series / Platform
800T (30mm Operator Devices)
Mounting Hole Diameter
30.5 mm
Number of Positions
3
Operator Function
Maintained
Head / Actuator Type
Standard Knob
Knob Color
Black with White Insert
Illuminated
No (Non-Illuminated)
Cam Type
KB7
Contact Configuration
1 NO, 1 NC
Contact Type
Standard Contacts
Current Rating (AC)
10 A
Current Rating (DC)
2.5 A
Voltage Rating
120–600 V
Terminal Type
Screw
Enclosure / NEMA Rating
NEMA Type 4/13 (IEC IP65)
Guard on Terminals
No Guards
Mechanical Life
1,000,000 cycles
Operating Temperature
-40°C to +55°C
Certifications / Standards
UL, CUL, CSA, CE, CCC, KC, C-TICK, Marine
Package
Device with Packaging
We warranty all items for 30 days from date of purchase.
