NEW CASTLE TSM-22

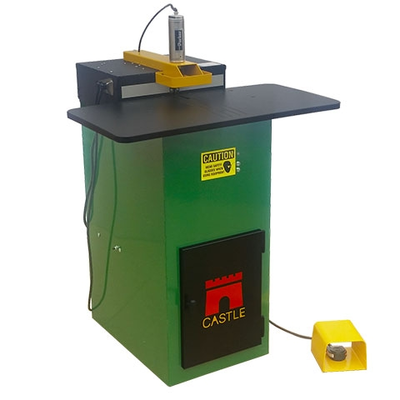

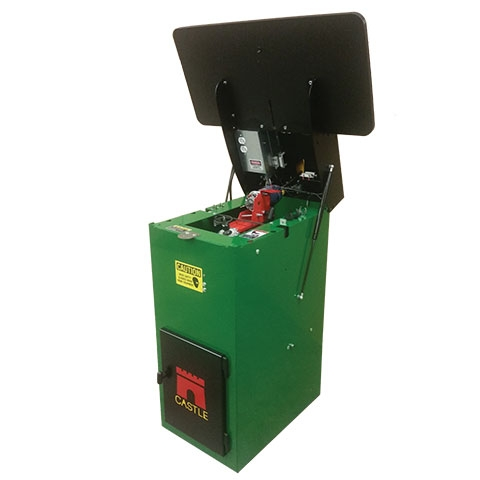

Castle Model TSM-22 Pocket Boring Machine
Cuts the Castle low-angle, 6 degree pocket, for strong, stable, tight, and superior joints
Designed for professional, joinery with maximum throughput of parts and components
Low-angle, 6 degree pockets minimize the need for clamping during assembly
Cuts pocket and pilot hole in a single cycle, increasing throughput and decreasing material damage and waste
Footswitch with automated operation that's simple and easy to use
The TSM-22 clamps the stock, routs a pocket, and drills a pilot hole - all with a tap of the foot pedal - in a cycle time of just 1.5 to 2 seconds
Use the TSM-22 with composites, panel, hard or soft wood
Router: Bosch 2.25hp #1617EVS
Drill: Bosch Colt 1.0hp #PR20EVS
Router bit: Premium 3/8" Solid Carbide, Rough Mill
Drill bit: Premium 9/64" Brad and Spur TiN-Coated Bit
Power req: 110V, 15 amps
Air req: 85 psi
Bosch 1617 Router 2.25hp for pocket cutting
Bosch Colt Router 1hp for drilling pilot hole
Basic footprint: 31.5" depth x 30" width x 48" high
Working height: 36.5"
4" integrated dust port
Manufactured in USA
