NEW MAGGI GT800

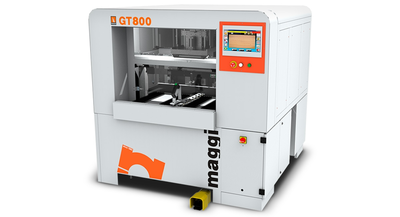

Maggi Model GT800 CNC Boring Machine
Very simple and fast programming
Extremely intuitive user interface
Importable and text format exportable working programs
Up to 1,000 programs can be stored
Machines panels from above
Suitable for drilling on face and sides of panels, including holes for dowels, hinges, KD Fittings and shelf holes

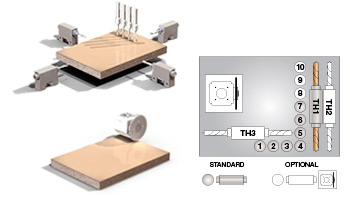

(9) vertical spindles (6 in X axis and 4 in Y axis)
Saw Blade Unit in X axis
(2) 1 + 1 Horizontal Spindles in X axis
(1) 1 + 1 Horizontal Spindle in Y axis
Spindles rotations speed: 3,400 RPM
Axis speed 25 meters/min
82 feet/min
Panel End Edge Reader for perfect panel assembly
Max. panel dims: Y - 800 mm (31.5"), X - Unlimited, Z - 50 mm (2")
Min. panel dims: Y - 100 mm (3.93"), X - 250 mm (9.84"), Z - 10 mm
Boring Capacity 0 to 800 mm (31.5") with any spindle
Ability to execute all drilling operations in a single working cycle

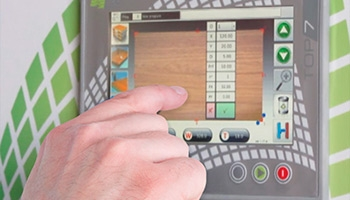

CNC programming with 12" touchscreen
Automatic panel cleaning with brushes
Teleservice software
