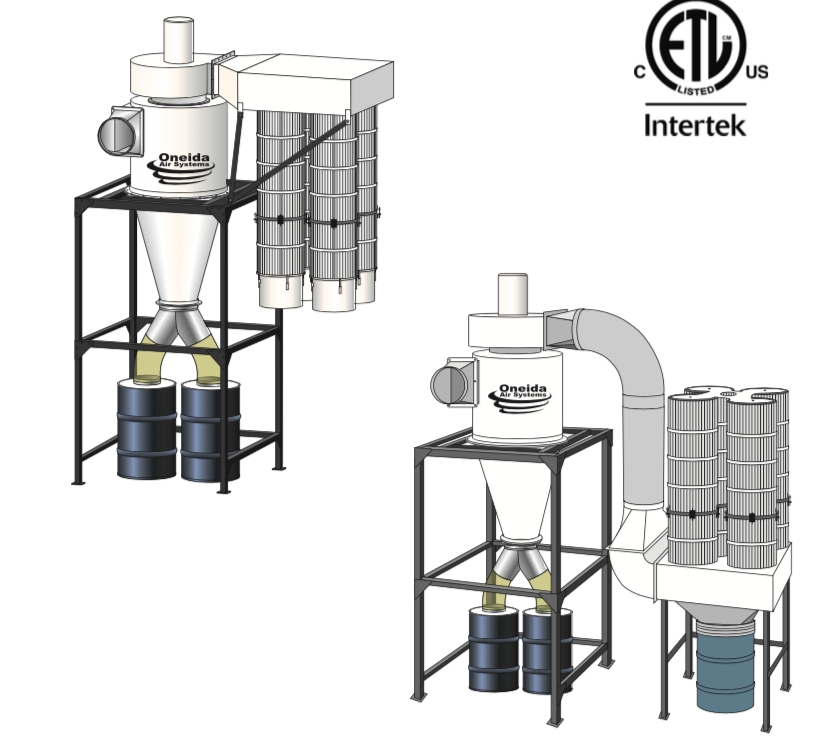

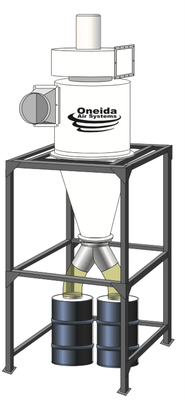

Oneida 15hp Direct Drive Base System - No Filter

The 15hp System consists of the system components on this page and your choice of a filter option. Or, use the system with no filter and exhaust the cyclone outdoors.
System Performance
2725 Max. CFM @ 1.7" S.P.
System Dimensions
Height w/ 2x 55 Gal. Drum: 172 3/4"
Footprint 62" x 110" Plenum Kit 1
Footprint 62" x 138 1/2" Plenum Kit 2
Cyclone Inlet Diameter: 14"
Fan Blower
Made in USA NYB, 15 horsepower
Three Phase: 208 - 230/460V
37.5 - 34/17A
Backward Incline, Size 18, PLR Wheel

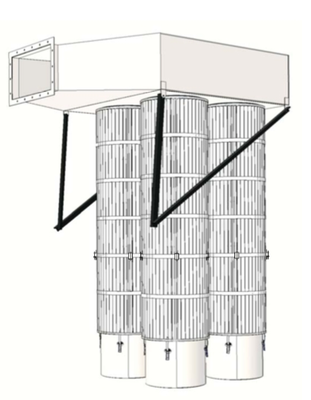

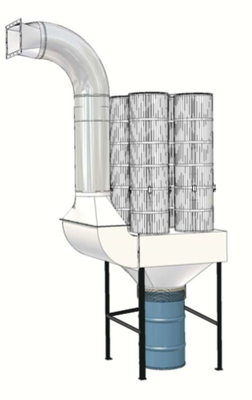

Cartridge Filters
4 Cartridge Filters Standard 155 Sq. Ft. each
Spun-Bonded Polyester Filter Media
BIA ZH1/487 Rated C
Captures 99.9% of test material between 0.2 - 2.0 microns @ 11 FPM face velocity.
Dust Containers
(2) 55 Gal. Drums
Multiple Dust Bin Connections available
Hoppers Available
Airlocks Available
