NEW OMEC 650M

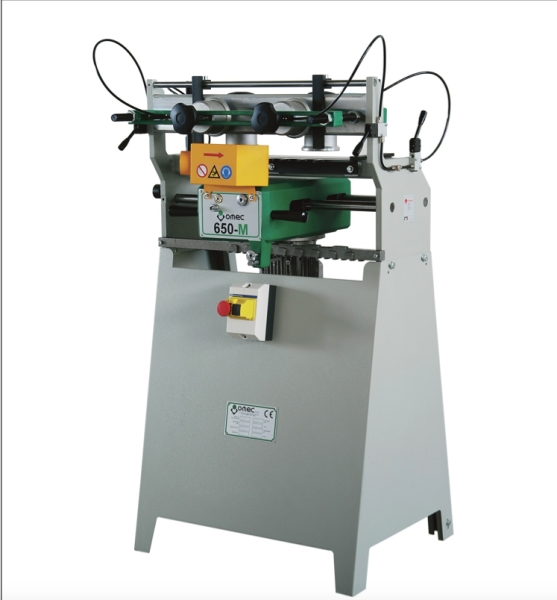

Omec Model 650M Manual Dovetailer
The Omec 650M uses a 1 HP motor, linear bearings, adjustable eccentric bit, and comes with 4 templates standard. Clamping is done by four pneumatic cylinders for easier loading and unloading. The 16.5" capacity enables you to make deeper drawers and chip breakers can be installed on the fences to minimize blowout on more difficult materials.
Dovetails male & female parts simultaneously
Manual w/pneumatic clamps
Width Capacity: 2.36-16.5 inches
Number of Spindles: one
Dovetail pin size choices: (4)
RPM: 16,500
1 hp motor
Production: 20 Drawers per hour
(4) Anti-Splintering Wood Included
(1) HM Spare Mill Cutter included
