NEW OMEC F11

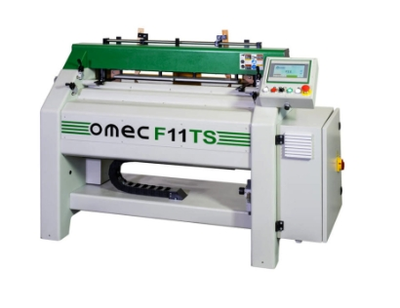

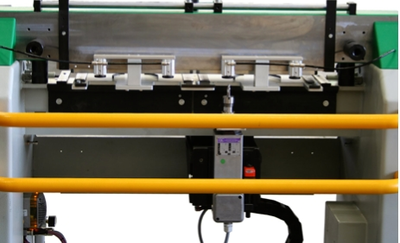

Omec Model F11 TS Automatic Dovetail Machine

Technical Data:
Power installed of machine: 6 HP
Working pressure: 0.7 Mpascal
Number of spindles: 1
Spindle revolutions: dual speed 18,000/24,000 RPM
Distance between centers of joints: Fixed or variable

Workpiece Limits
Lengths: Min. 170mm (6.69") Max. 1500mm (59.06")
Width: Min. 60mm (2.36") Max. 770mm (30.31")
Indent Height: Min. 6mm (0.24") Max. 25mm (0.98")
Front Thickness: Min. 8mm (0.31") Max. 55mm (2.17")
Side Thickness: Min. 8mm (0.31") Max. 30mm (1.18")
Drawer height Min. 60mm (2.36") Max. 770mm (30.31")

Standard Equipment
Fixed and Variable Pitch
80 drawers per hour
Integral Carbide cutter installed on the machine
Tool Kit for adjustments and maintenance
User's and instruction manual
Machining area of approximately 30"
F11TS can produce most any design and size dovetail product desired
Spindle speeds of 18,500 rpm, can accommodate a variety of tooling to produce the dovetail effect desired by operator including box cuts, French dovetails, alternating pitch, etc
Control of spindle location, machining speed, tooling variance, height of pin, depth of joint, location of joint, and number of joints are all controlled by CNC

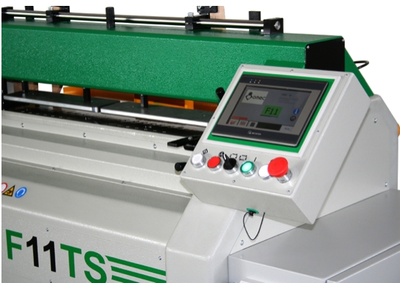

7" inch touch screen /600 programs for easier and faster operator inputs and a better visual representation of the machine operation
Additional modifications include the positioning servo now equipped with an absolute encoder eliminating X and Y axis limit switches
