NEW NORTHTECH NT-DTM16M

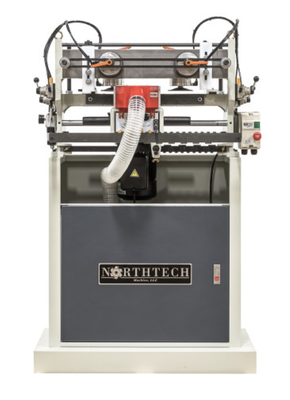

Northtech Model NT-DTM16M Manual Dovetailer
Spindle motor: 1HP 1PH 120V/240V 60HZ
Min. workpiece size: 2.4" x 7.9"
Max. workpiece size: 16.5" x 59"
Min/Max dovetail height: 0.2" ~ 7.1"
Min/Max front thickness: 0.28" ~ 2.36"
Min/Max side thickness: 0.28" ~ 3.6"
Number of spindles: 1
Spindle speed: 18,500RPM
Dovetail spacing: 1", 1.5", 2", 2.5"
Table height from floor: 46.5"
Pneumatic clamps to securely hold workpiece, individually operated
Heavy steel base with cabinet door
Tenon and mortise adjustment depth based on material thickness
Comes with one four-sided template for different pitched dovetails (1", 1.5", 2", 2.5")
UL/CE certified electrical components
Air pressure required: 6 bar
Dust port (1) 4" requiring 436CFM @ point of extraction and
(1) 2-1/2" requiring 245CFM @ point of extraction
Machine/Packing weight: 441lbs / 550lbs
Machine dimensions (LxWxH): 43" x 30" x 66"
(1) Tool box
Warranty is one year parts
All machines are tested stateside prior to shipment providing trouble free start up.
