Friulmac MDF Wrapped 5 Piece Kitchen Cabinet Door Low-Volume Cell

Friulmac MDF Wrapped Kitchen Cabinet Door Low Volume Cell
Cell Consists of Stock Numbers 19201N, 19202N, and 22516N

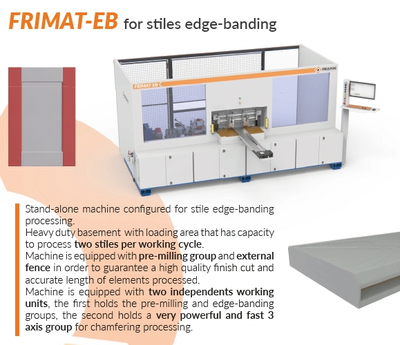

Friulmac Frimat-EB
Stand-Alone Machine Configured for Stiles Edgebanding Processing
Working Dimensions:
Min-Max Length: 3.5" - 59"
Min-Max Width: 1.5" - 7.9"
Min-Max Thickness: 0.5" - 1.5"
Working Units:
Max Roll Diameter: 2.625"
Independent Glue Spreader: Glue Type - EVA
Automatic Feed Speed Syncronization
Pneumatic Guillotine
Automatic Edge Detection
Rubber Roll Edge Applicators
3 Steel Rolls Edge Fixing
Min-Max Edge Thickness: 0.3mm - 3mm
Max Feed Rate: 49.2 Ft/Min
Cutting Accuracy @ 49.2 Ft/Min: +/- 3mm
Min-Max Edge Height: 14mm - 45mm
Min Edge Length: 60mm
Total Unit Power: 27 kW
Full Load Power: 52 Amp
Working Air Pressure: 6 Bar
Push Button Controls
HMI Control Panel
Safety Enclosure
Current Voltage: 460V 3PH

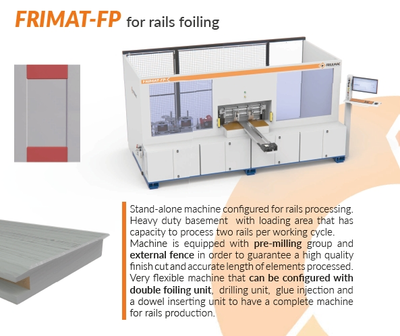

Fruilmac Frimat-FP-3WS
The Purpose of the machine is to perform precision machining such as milling or mortising of Profiled-Wrapped Cabinet Door Rails, plus Foiling
Working Dimensions
Min-Max Length: 2"-59"
Min-Max Width: 1.5"-7.9"
Min-Max Thickness: 0.5-1.5
Working Units:
Upper/Lower Edge Units (CNC): Electric Motor - 5 kW (6.7HP) @ 9000-12000.
Thermoprinting Unit T "Borgonovo" (2nd & 3rd Station)
External Diameter - 200mm (7.875")
80 Shore Buffer Diameter - 190mm (7.5")
Copier Diameter - 200mm (7.875")
No. Resistances - KW 0.5x6
Rotation Motor Unit Power - 0.09 kW
Motor Power - 0.09 kW
Pre-Torque Head Motor Power - 0.22 kW
Total Machine Power - 13 kW
Full Load Current - 24 Amp
Working Air Pressure - 6 Bar
Pedal Safety Switch.
Push Button Controls
HMI Control Panel
Safety Enclosure
Current Voltage: 460V 3PH

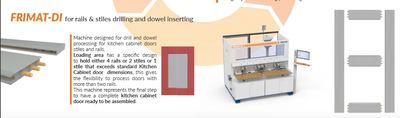

Friulmac Frimat-DI
Specifically Designed for Drill and Dowel Processing for Kitchen Cabinet Doors Stiles & Rails
Loading Area Specifically Designed to Hold Either Four Rails, Two Stiles, or One Extra Long Stile
Working Dimensions
Min-Max Length: 2.5" - 59"
Min-Max Width: 1.5 - 38"
Min-Max Thickness: 0.5" - 1.5"
Working Units:
Upper/Lower Edge Units (CNC) - 1.5 kW (2HP) @ 9000-12000 RPM
Glue Insertion Unit R-4
Tank Capacity: 2 Kg
Glue Type: Ac. Vinile
Minimum Film Formation Temperature - 3 Degrees Celsius
Glue Viscosity - mPa.s 400/500
Ph Value (20 Degrees Celcius) - 6-7.5 Ph
Manual tilt - +/- 5 Degrees
Dowel Insertion Station
Maximum Capacity of Dowel Tank - 5 Kg
Minimum Distance between 2 Consecutive Dowels - 16mm
No. of Dowel Inserts - 1
Tolerance of Dowel on Diameter - +/- 0.1
Tolerance of Dowels on Length - +/- 0.2
Total Unit Power - 6 kW (8Hp)
Full Load Current - 13 Amp
Working Air Pressure: 6 Bar
Safety Enclosure
Push Button Controls
HMI Control Panel
Current Voltage - 460V 3Ph
