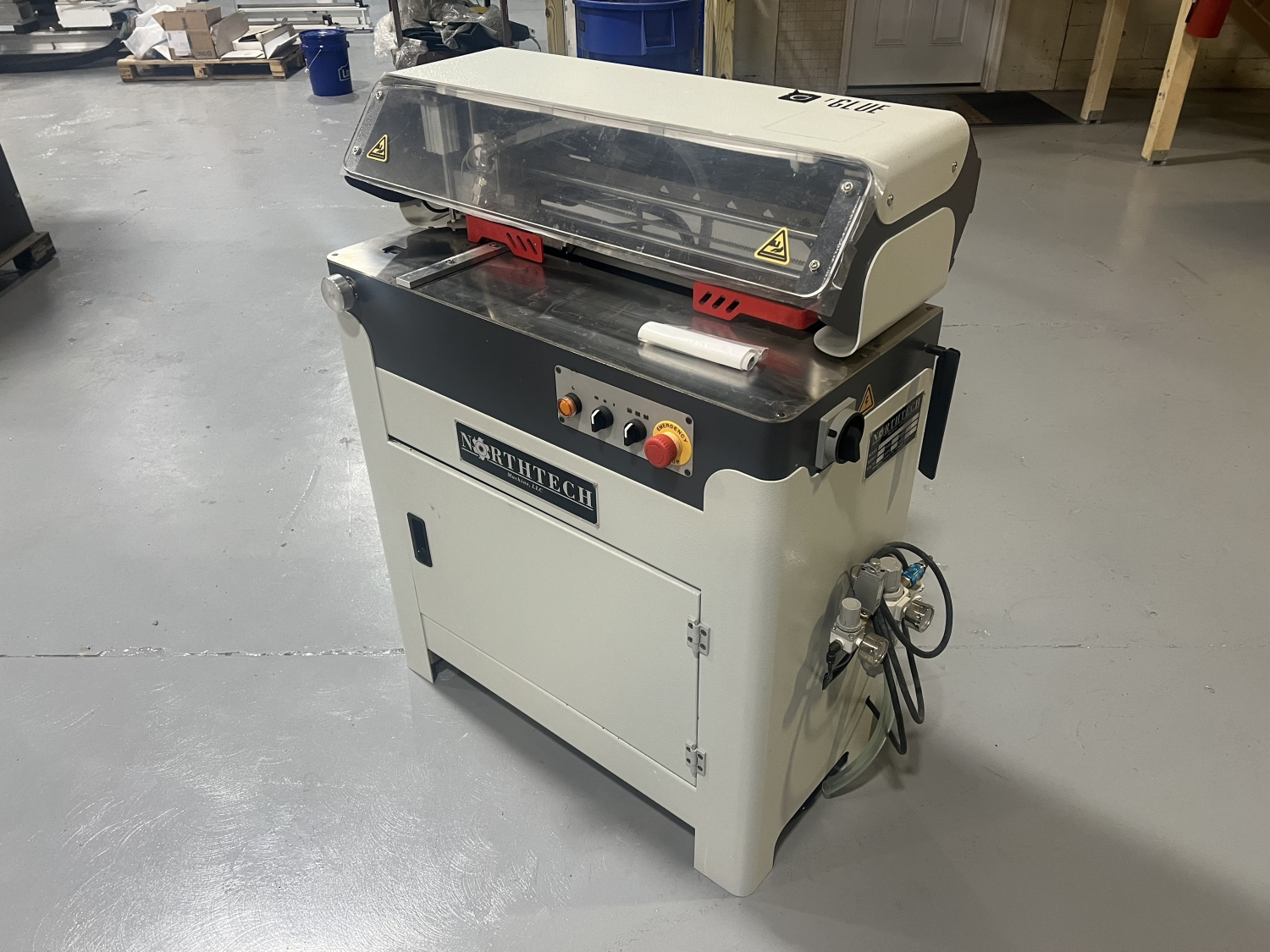

NEW NORTHTECH NT-IGLUE450

Northtech Model NT-iGlue450DTG Automatic Dovetail Gluer
Simply place the parts against the fence, the iGlue will scan
and apply glue to either male or female side of the joint
automatically, with no programming required
Working width: 450mm (18")
Working thickness: 5-50mm (3/16" - 2")
Working length minimum: 100mm (4")
(3) Programmable working speeds
Maximum operating speed: 1.4in/s
Multiple glue nozzle applicators for varying customer needs
Siko counter fence depth setting
Removable glue catch basin
Replaceable no drip nozzle
Glue and water pot on an internal cart system that pulls outside the machine for easy access
LED Illuminated working area
Automatic sleep mode will place the nozzle into a water bath after
5 minutes without use to keep glue tip fresh
Auto cleaning mode fl ushes glue out of system easily
Single pneumatic connection with FLR included
Easy smartphone integration for parameter adjustments and maintenance alerts
Glue reservoir: 10L Adjustable pressure glue pot included
Water reservoir: 4L Adjustable pressure water pot included
Recommended glue type: Water soluble PVA glue 8,000mpa s
Machine / Shipping weight: 436lbs / 528lbs
Machine / Shipping dimensions (LxWxH): 38" x 44" x 18" / 44" x 54" x 26"
230V/460V 60HZ 3PH; 200W; 1Amp
