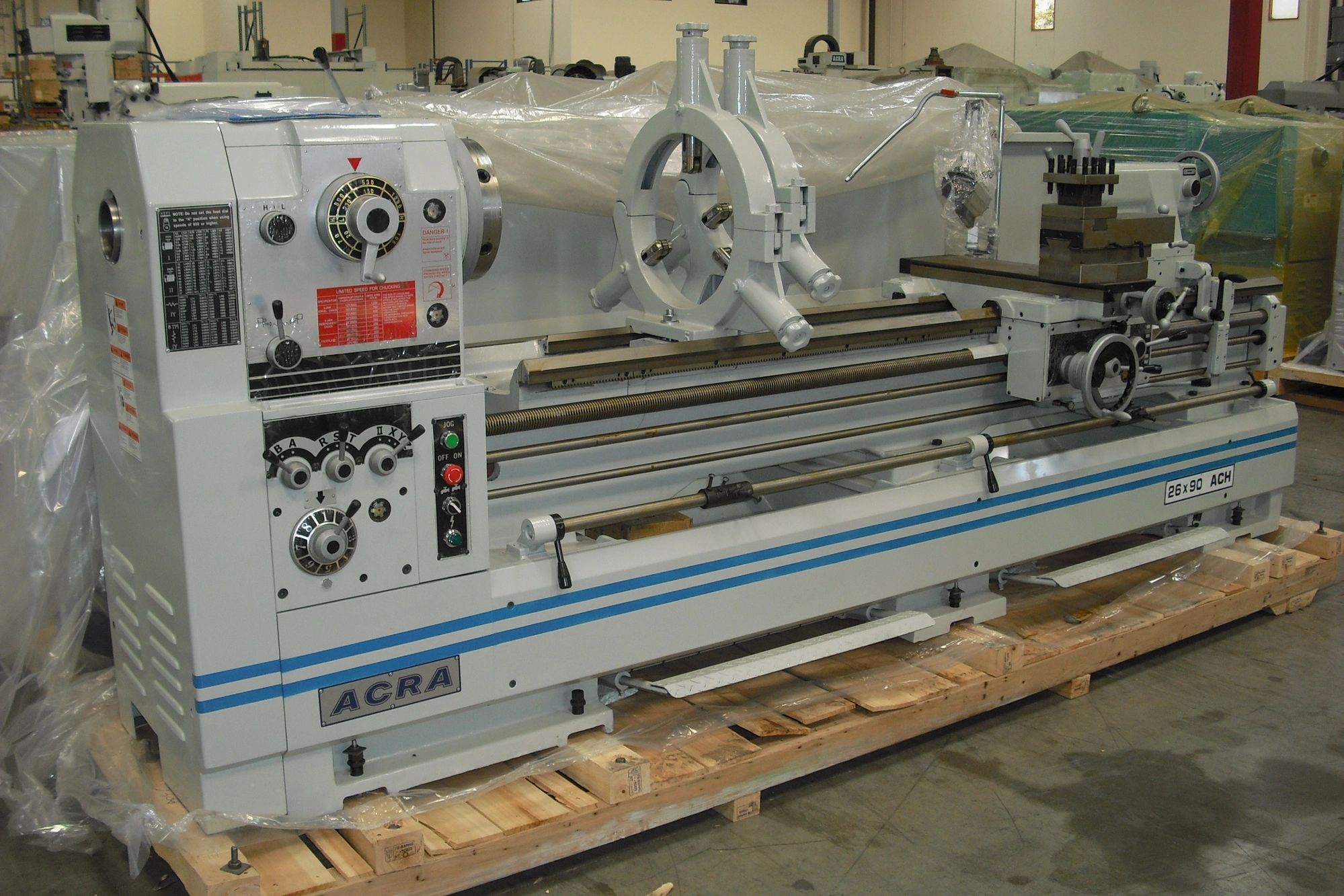

NEW 2024 ACRA 26120 ACH

Acra 26120 ACH Precision Engine Lathe

ACH Precision Engine Lathe, Engine Lathe.

Swing over Bed 26"
Swing over Cross Slide 17 1/2"
Swing in Gap 35 1/8"
Distance between Centers 90"
Bed Width 15 3/4"
Spindle Bore 4 1/16"
Spindle Nose D1-11
Spindle RPM 13-1200 (12 Speeds)
Main Motor 15 HP 4P
Voltage 230/460V AC/3PH
Machine Dimensions 160" X 50" X 60"
Machine Weight 6,970 lbs
Large Steady Rest (7 1/2"-15") $3,500.00
7" Follow Rest $700.00
20" Face Plate $1,000.00
Taper Attachment $4,000.00
Newall Digital Read-out-14" X 88" NMS300 (Basic) $1,650.00
Newall Digital Read-out-14" X 88" DP700 $3,750.00
D.R.O Installation $375.00
Live Center MT 5 $500.00
4-Jaw Chuck 20" (China) $2,500.00
4-Jaw Chuck 20" (Bison) P.O.R
Chuck Guard $650.00
Turret Carriage Stop $500.00
Micro Carriage Stop $400.00

15" 3 Jaw Chuck, Coolant system, 4-way Tool Holder, Steady Rest (1 3/5"-10"), Halogen Light, Full Length Splash Guard.
