USED WEEKE VENTURE

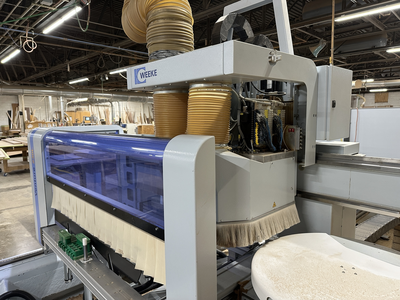

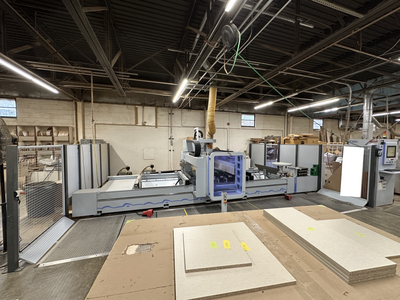

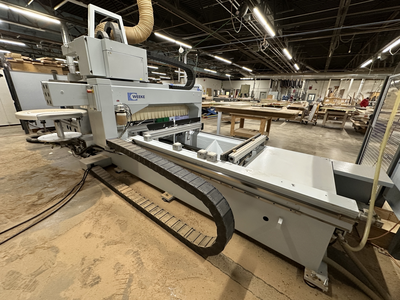

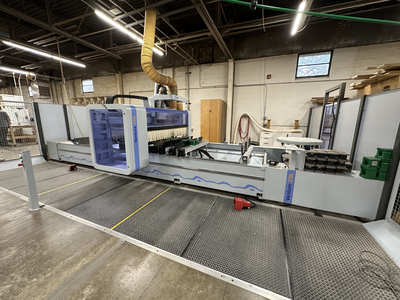

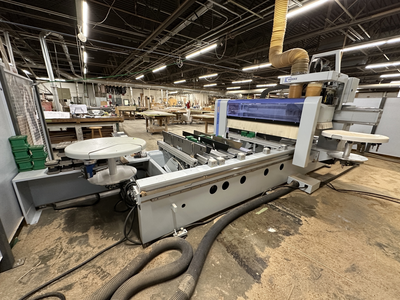

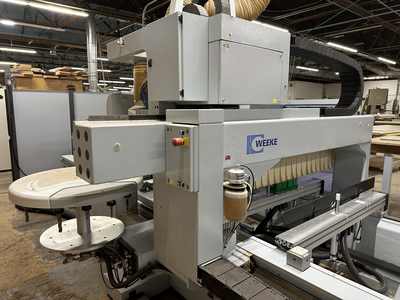

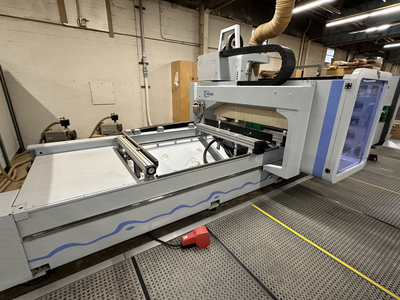

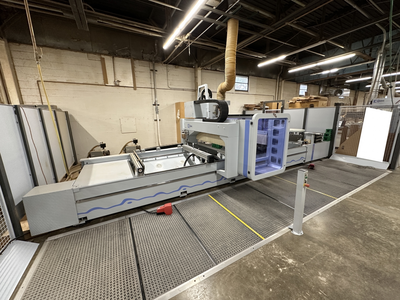

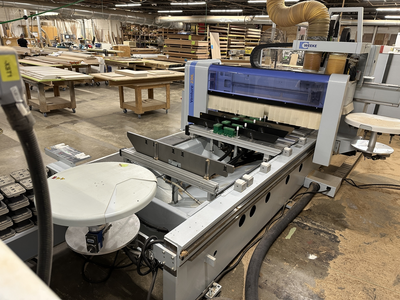

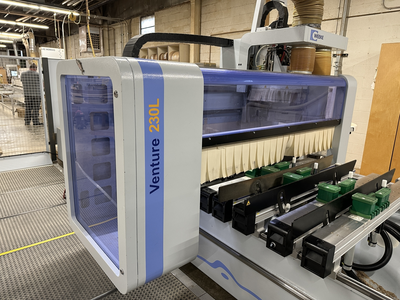

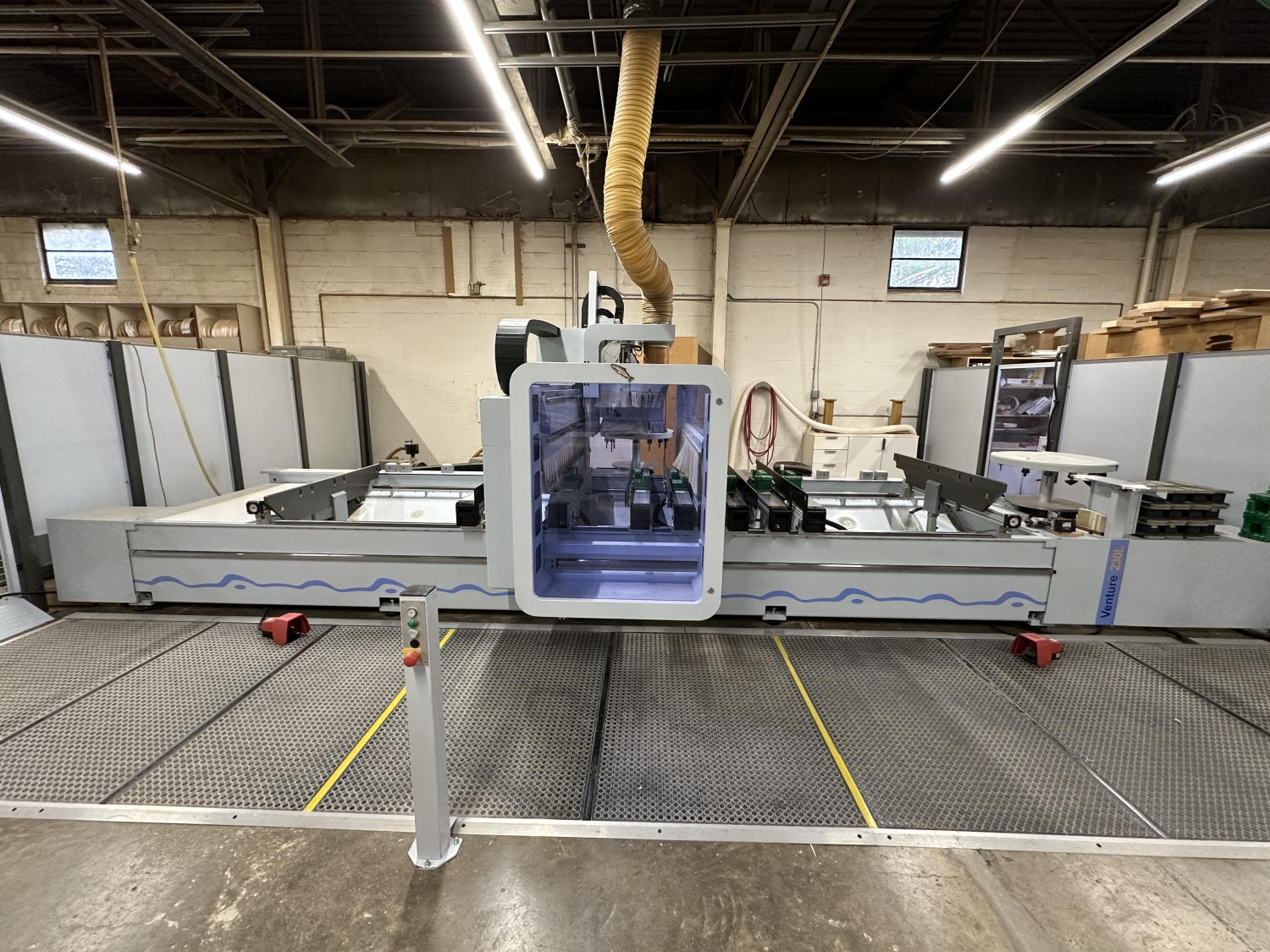

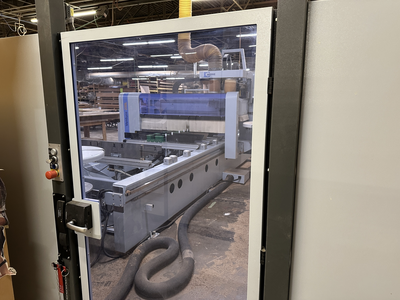

Weeke Model Venture 230L CNC Router
Located in RT's PA Facility & Available Immediately!
Axis Travel:
X - 5430mm (213.77")
Y - 2180mm (85.82")
Z1 - 348mm (13.70")
Z2 - 215mm (8.46")
Axis Speed:
X/Y - 110m/min
Z - 20m/min

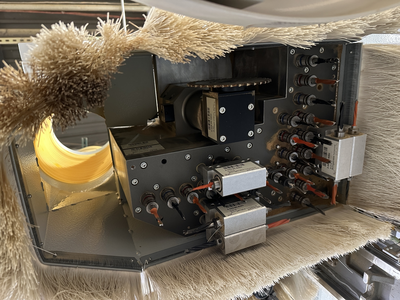

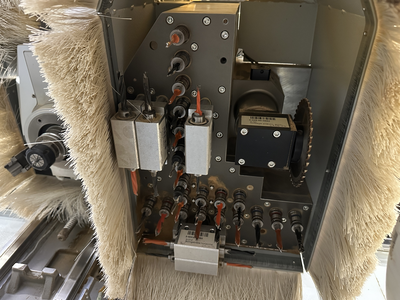

21 Drilling Block -
60mm Stroke - Max Drilling Depth 38mm
Total Drill Length - 70mm
Speed - 1500-7000 RPM w/ VFD controlled Motor 3HP
Shaft Diameter - 10mm
Drilling Diameter - 35mm
Distance between Spindles: 32mm
Horizontal Boring Spindles -
6 Spindles - 32/64mm Pitch - 3 Each Direction X+/-
4 Spindles - 32 Pitch - 2 Each Direction Y+/-
Drilling Depth - 38mm
Speed 1500-7500 RPM
Shaft Diameter - 10mm
Drill Diameter - 20mm Max
Grooving Saw -
X- & Y- Direction - 90 Rotation
Cutting Depth - 30mm
Cross Section - 70mm
Rotation Speed - 1500-7000 RPM
Tool Diameter - 125mm
Blade Width - 5mm Max

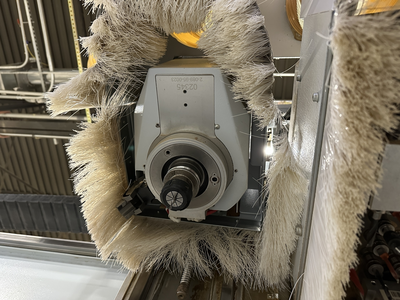

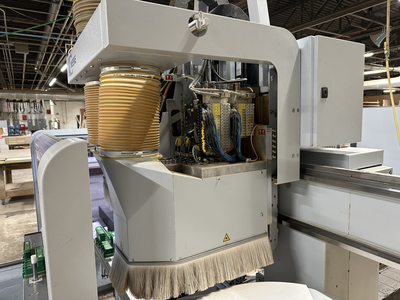

Vertical Router Motor -
12kW (16HP)
Tool Holder - HSK63

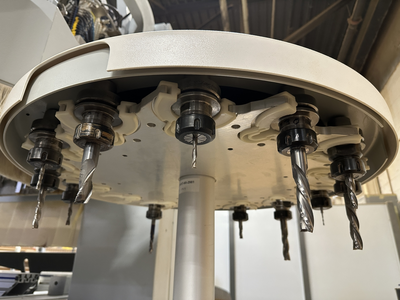

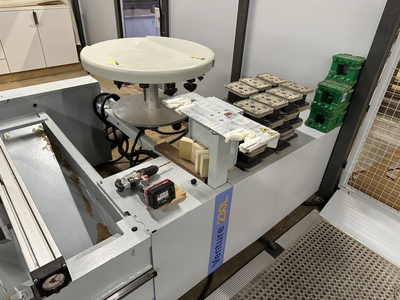

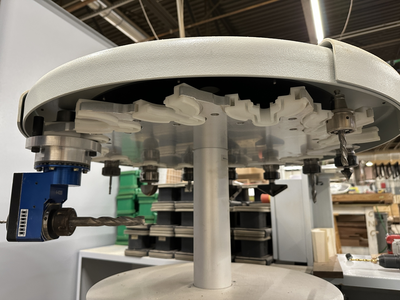

Tool Changing - Automatic
Speed - 1250-24000 RPM Stepless
Frequency Controlled motor

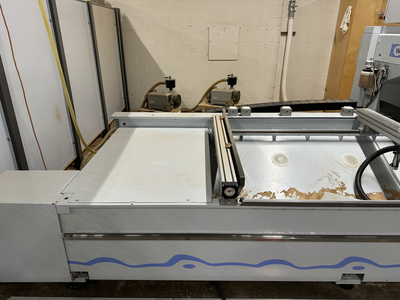

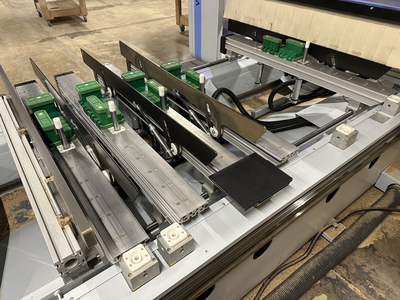

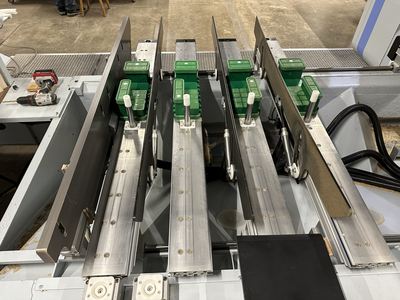

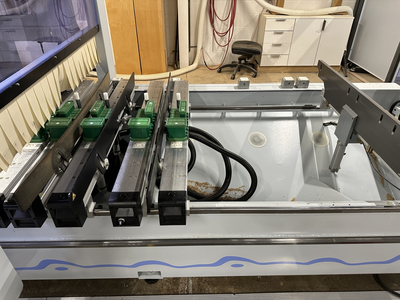

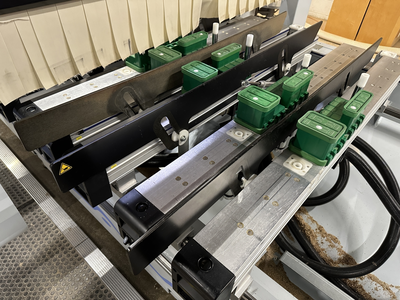

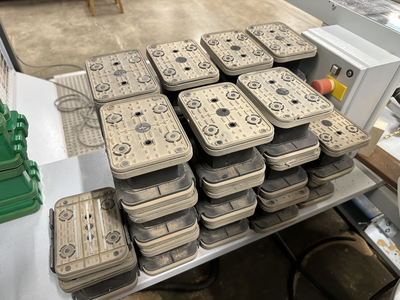

Notes: This is a super-clean machine. They are only selling because of a move towards full five-axis. Original Weeke Pods will be included with the machine (previous owner is keeping the green BVC pods). They are also keeping the tool holders. This machine does have a spindle vibration sensor installed.
