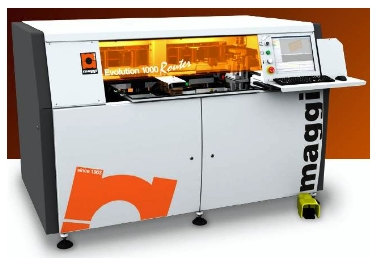

Maggi Model Evolution 1000R CNC Machining Center
Workpiece Dimensions:
Min/Max (mm) X 300/10,000 mm
Y 75/1000 mm (With grooving saw min. 120 mm)
Z 8/60 mm

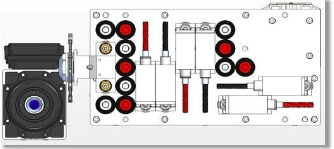

Drilling Configuration:
11 Vertical Drills
6 Horizontal Drills (All on 32 mm Centers)
1 Saw Blade
Router:
(1) 3.6 kW Electrospindle, 18,000 RPM
Grooving Saw X-Axis Only
Positioning Speed:
X 42 m/min
Y 42 m/min (3 Brushless Servo Motors)
Z 10 m/min
Drilling Depth 60 mm Maximum

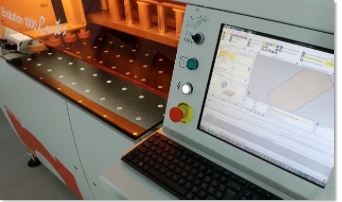

PC:
17" Color Monitor
OS Windows 7 Professional
2 GB Ram
500 GB HD
(6) USB Ports

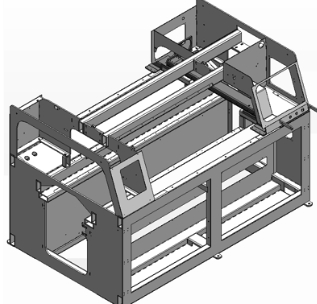

Frame and Design:
Heavy duty, 8mm thick, steel frame
Built to withstand intensive work over time
Quality components, like the brushless drive motors, ensure the greatest reliability and stability
Software:
CNC software, developed by TPA, a leading company in the field
CAD 4 program for the creation of technical drawings
Job list creation
Axes management
Diagnostics
Machine data editors to visualize and manage the virtual tools available
User friendly and compatable with most CAD programs since it is an open software
Options:
Motorized Automatic Side Aligner System
Upgrade to TPA/CAD "PRO" CNC software on board
Additional TPA/CAD "LIGHT" software license to create programs from remote work station
Additional TPA/CAD "PRO" software license to create programs from remote work station
Barcode Scanner with software
Post Processor Specifications
