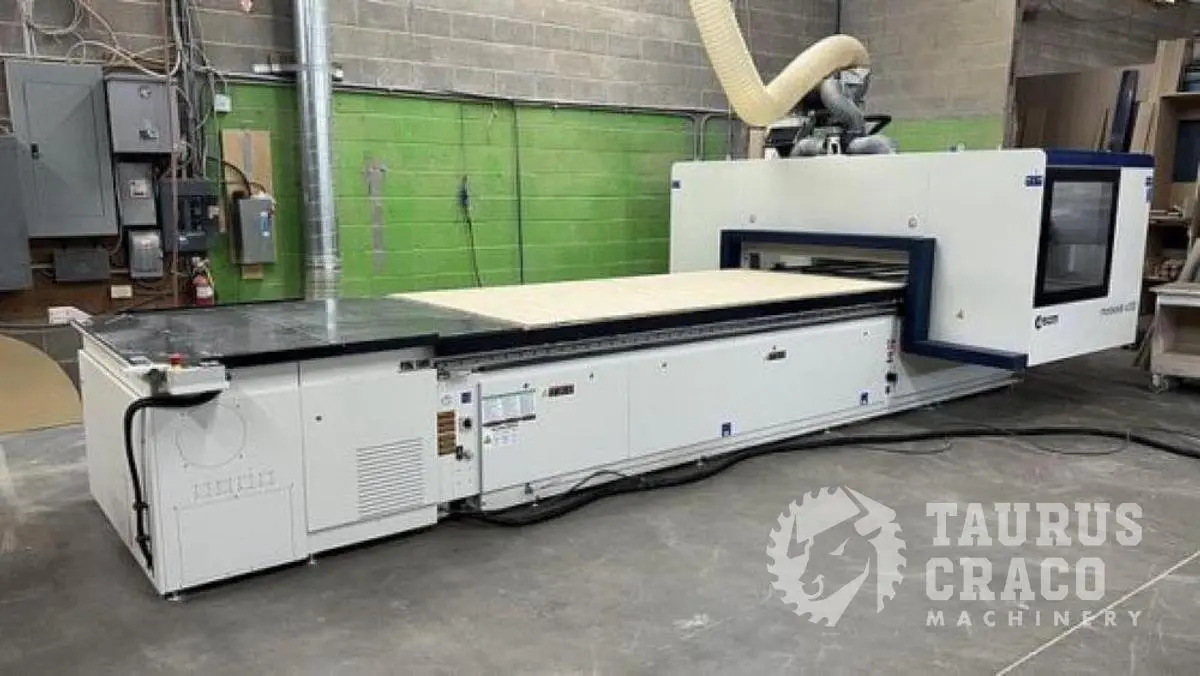

USED 2024 SCM MORBIDELLI X200 CNC ROUTER

Manufacturer: SCM Group (Italy)
Model: Morbidelli X200 Cell 1531
Year of Manufacture: 2024
Condition: Like New / Very Lightly Used
Machine Type: 5' × 10' Flat Table Nesting CNC Machining Centre
The SCM Morbidelli X200 Cell is a high-performance CNC machining centre designed for nesting, routing, drilling, and panel processing applications. Engineered for cabinet manufacturing, furniture production, architectural millwork, and nested-based manufacturing, the X200 combines heavy-duty machine construction, advanced vacuum hold-down technology, high-speed machining capability, and SCM's latest control and software platform.

This machine remains in exceptionally clean, lightly used condition. Configured as a 5' × 10' Cell model, it features SCM's PRO-SPACE safety system, FAST tool changer, RO.AX drilling technology, and a 14 kW HSK spindle package.
5' × 10' nesting CNC router
Morbidelli X200 Cell platform

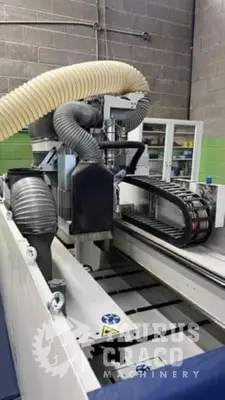

14 kW (19 HP) HSK-63F electrospindle
RO.AX F16V vertical drilling head
14-position FAST automatic tool changer
High Efficiency aluminum vacuum table
8-zone vacuum system
Dual high-capacity vacuum pumps
Automatic outfeed pusher
Tool length detection system
PRO-SPACE safety system
Maestro Active control system
Eye-M PRO operator console
Adaptive feed-rate control
Automatic centralized lubrication
Working Table: 5' × 10' (1531 format)
X (Inside Stop to Outside Table): 3117 mm (122")
X (Outside Table to Outside Table): 3156 mm (124")
Y (Inside Stop to Outside Table): 1557 mm (61")
Y (Outside Table to Outside Table): 1596 mm (62.8")
Alternating Work Process Panel Length: 1064 mm (41.9")

Power: 10/14 kW (13.6 / 19 HP)
Speed Range: 1,500 – 24,000 RPM
HSK 63F Tool Interface
Fan-Cooled
Programmable Left and Right Rotation
Ceramic Bearing Construction

Adaptive feed-rate control
Automatic dust extraction hood
Integrated air blast system
Automatic tool length compensation capability
16 Vertical Spindles
Weldon Tooling Interface
32 mm Spindle Spacing
Independent Pneumatic Spindle Selection
Drilling Speed:Standard: 4,200 RPM
Variable: 3,000 – 8,000 RPM
Drive Power:Up to 3.9 kW (5.3 HP)
Features:
Increased drilling pressure system
Quarter-lock tooling system
High-pressure pneumatic drilling thrust
Integrated dust extraction hood
14 Tool Positions
Maximum Tool Diameter:160 mm
Maximum Tool Weight:8 kg
Maximum Tool Changer Capacity:42 kg
Maximum Head Weight:10 kg
The FAST tool changer is mounted directly on the moving carriage to minimize tool change times and maximize productivity.
Multifunction aluminum construction
120 mm vacuum grid spacing
Magnetic vacuum zone closure system
MDF spoilboard
Tool length detection device
8 Vacuum Zones
Automatic or Manual Zone Selection
High-capacity vacuum package
Dual vacuum pumps
500/600 m³/h system
Designed to maximize holding power for nested sheets, small parts, and highly porous materials.
ON/OFF Workpiece Outfeed Pusher
Integrated spoilboard cleaning
Built-in blower and extraction system
Unloading table controls with photocell monitoring
Centralized extraction manifold
Automatic extraction valve management
Main Extraction Diameter:250 mm
Lower Extraction Grid:250 mm
Air Consumption:Up to 8,860 m³/h during unloading

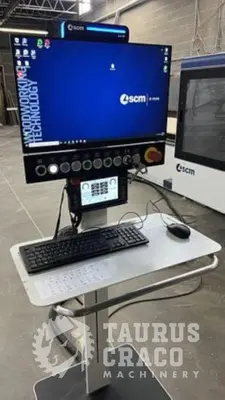

21.5" Full HD Touchscreen
Intel i7 Processor
8 GB RAM
256 GB SSD
Windows 10 Embedded 64-bit
Industrial Fanless Design
Maestro Active HMI
Maestro CNC CAD/CAM Platform
Maestro Connect
Nesting Free-Form Module
Label Printing System
DXF Import
CSV Import
Barcode Integration
Production Reporting
Maintenance Management
Voltage: 380/400V
Frequency: 60 Hz
Phase: 3 Phase
Maximum Installed Current:56 A
Connected Load:38.8 kVA
Operating Pressure:6.5 Bar
Average Air Consumption:400 NL/min
Manufacturer: SCM Group
Model: Morbidelli X200 Cell 1531
Year: 2024
Approximate Weight: 4,721 kg (10,408 lbs)
Like New / Very Lightly Used
This machine has seen minimal runtime. It remains in exceptional condition and is available immediately without the lead times associated with ordering new equipment.
The 2024 SCM Morbidelli X200 Cell represents SCM's latest generation of industrial nesting technology. Equipped with a 14 kW HSK spindle, 16-spindle RO.AX drilling head, FAST14 automatic tool changer, 8-zone vacuum table, automatic outfeed system, and Maestro software suite, this machine is designed to deliver exceptional productivity, precision, and reliability in demanding manufacturing environments.
