USED 2002 ACER EVS-3VKH
Overview

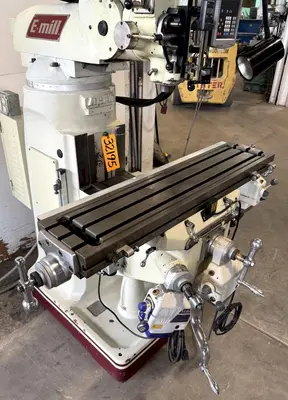

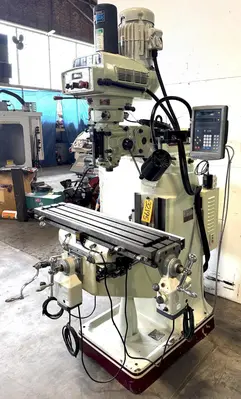

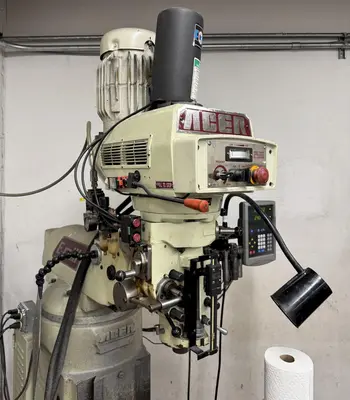

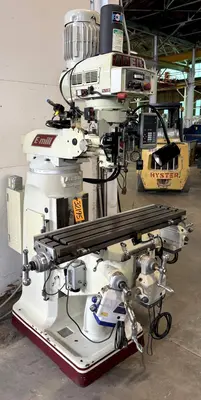

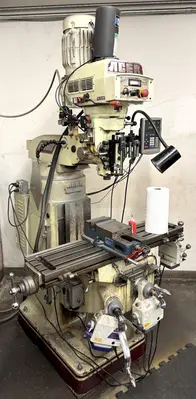

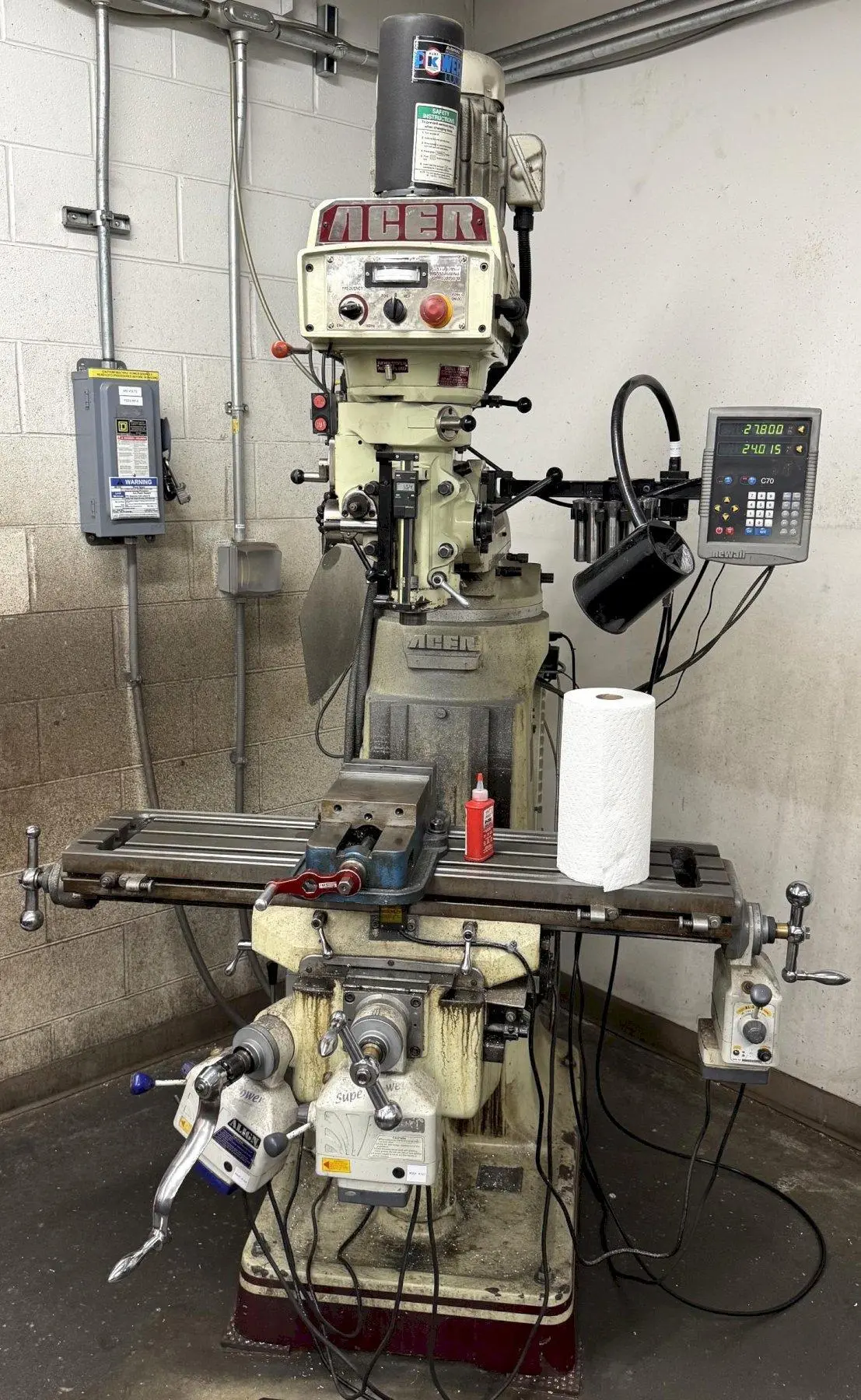

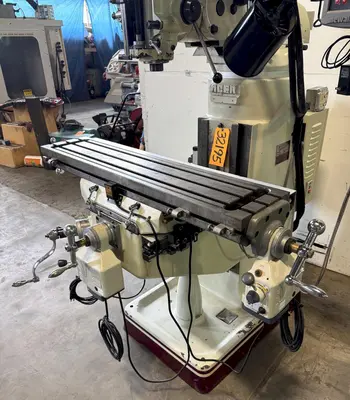

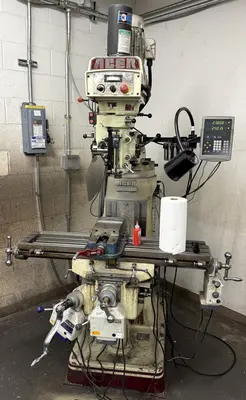

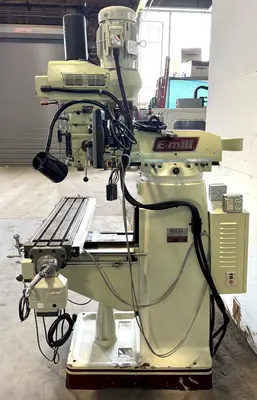

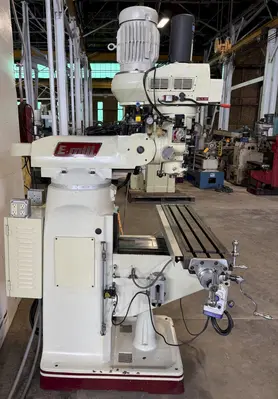

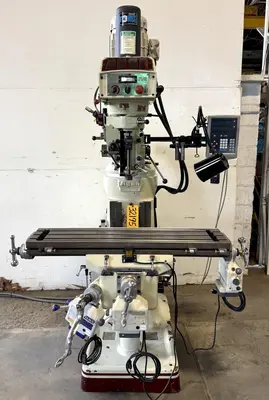

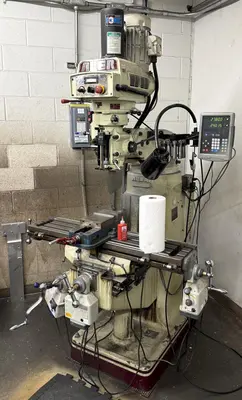

ACER VERTICAL MILLING MACHINE

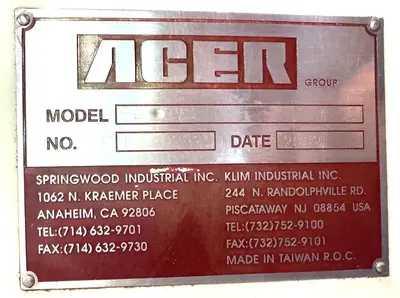

MODEL: E-Mill EVS-3VS
SERIAL NUMBER: 1120802539
GENERAL SPECIFICATIONS
Table Size: 9" x 42"
Longitudinal Travel: 28"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
Maximum Weight Of Workpiece: 850 Lbs.
Turret Rotation: 360 Degrees
Spindle Speeds, Variable: 60 to 4200 RPM
Spindle Taper: R-8
Quill Travel: 5"
Power Quill Feeds: (3) .0015, .003, .006
EQUIPPED WITH

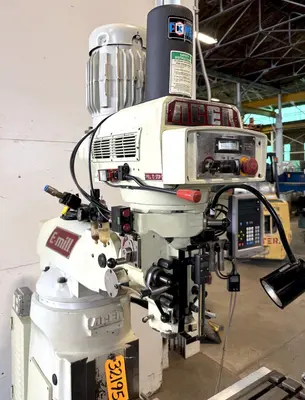

3 HP Spindle Motor

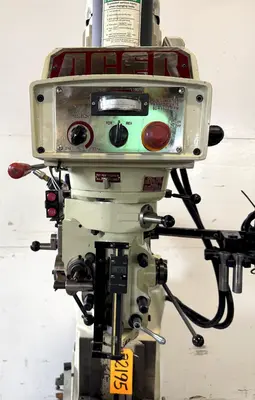

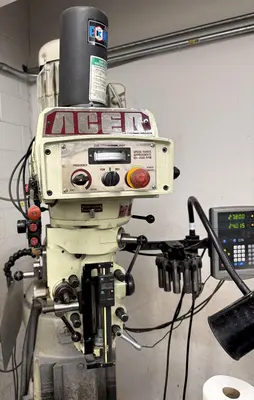

Electronic Variable Speed

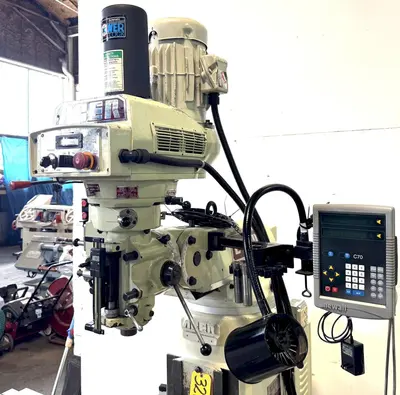

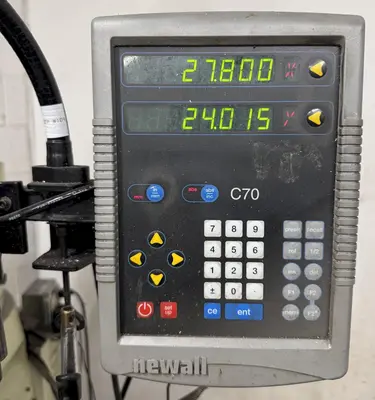

Newall C-70 Two Axis Digital Readout
Kurt Power Draw Bar

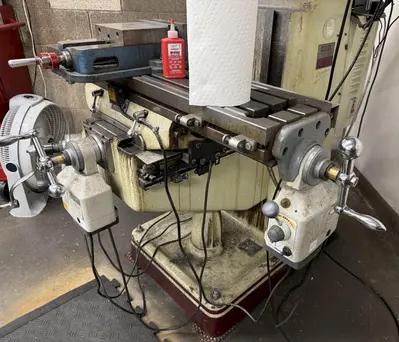

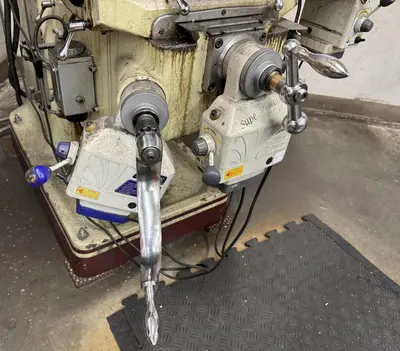

Align AL-300S Power Feed X-Axis
Align AL-500S Power Feed Y-Axis
Align AL-500S Power Feed Z-Axis
One-Shot Lubrication
Approximate Weight: 3000 Lbs.
Shipping Dimensions:
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
