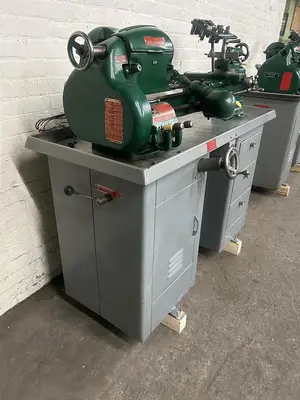

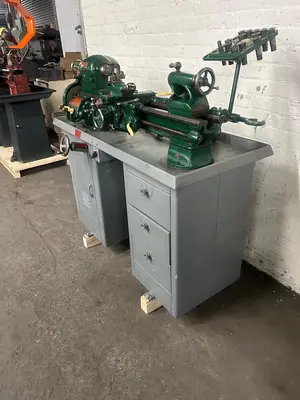

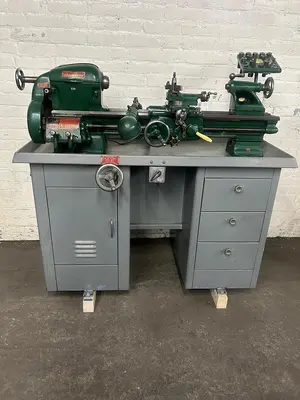

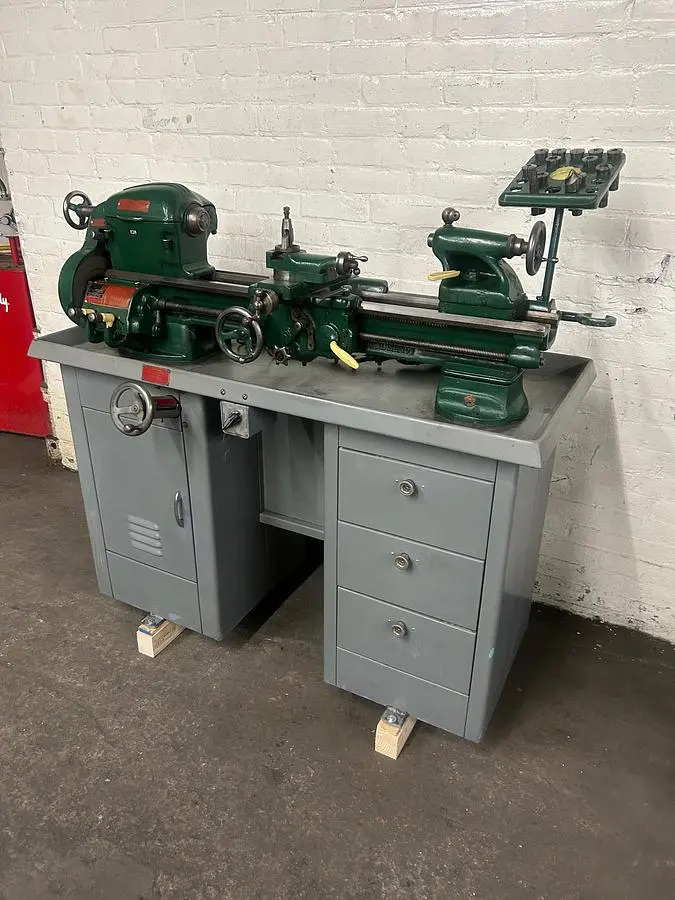

USED SOUTH BEND CL370ZD
Overview

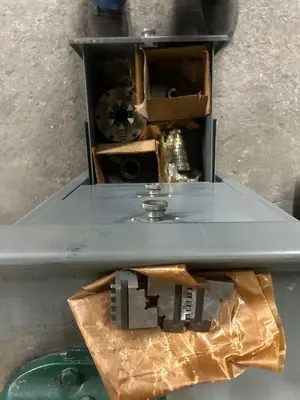

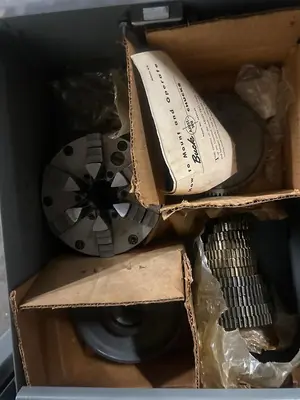

EQUIPPED WITH:
Cabinet stand
6-jaw chuck
Collet set
New replacement thread gears
Tool post ring and rocker

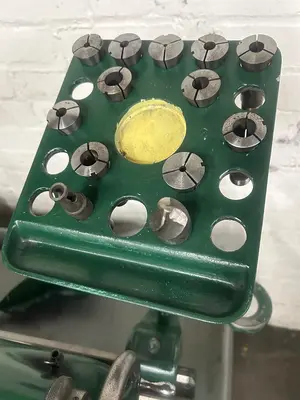

Collet Rack
5C Nose cone
Draw Bar
assorted cutting tools
Jacobs drill chucks
Specs
Voltage: 220V / 3PH / 60HZ
Swing over bed: 10"
Swing over saddle wings: 9-15/16"
Swing over cross slide: 6-1/4"
Headstock/tailstock centers: #2 MT
Distance between centers: 22"
Cross slide travel: 5-7/8"
Spindle speeds: 78.50 - 1365 RPM(12)
Hole through spindle: 27/32"
Maximum collet capacity: 5/8"
Spindle nose: 1-1/2" - 8 TPI
Thread cutting range: 4 to 224 TPI (48)
Longitudinal feeds: .0015" to .0853" IPR(48)
Cross feeds: .0004" to .0255" IPR (48)
Motor: 2HP
Overall dimensions: 49" x 21.5" x 45" high
Estimated weight: 700 lbs.
