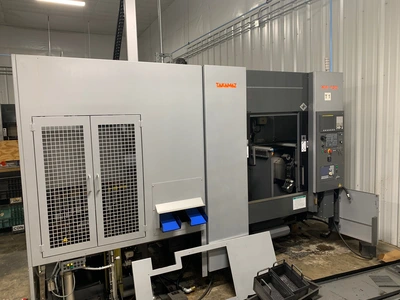

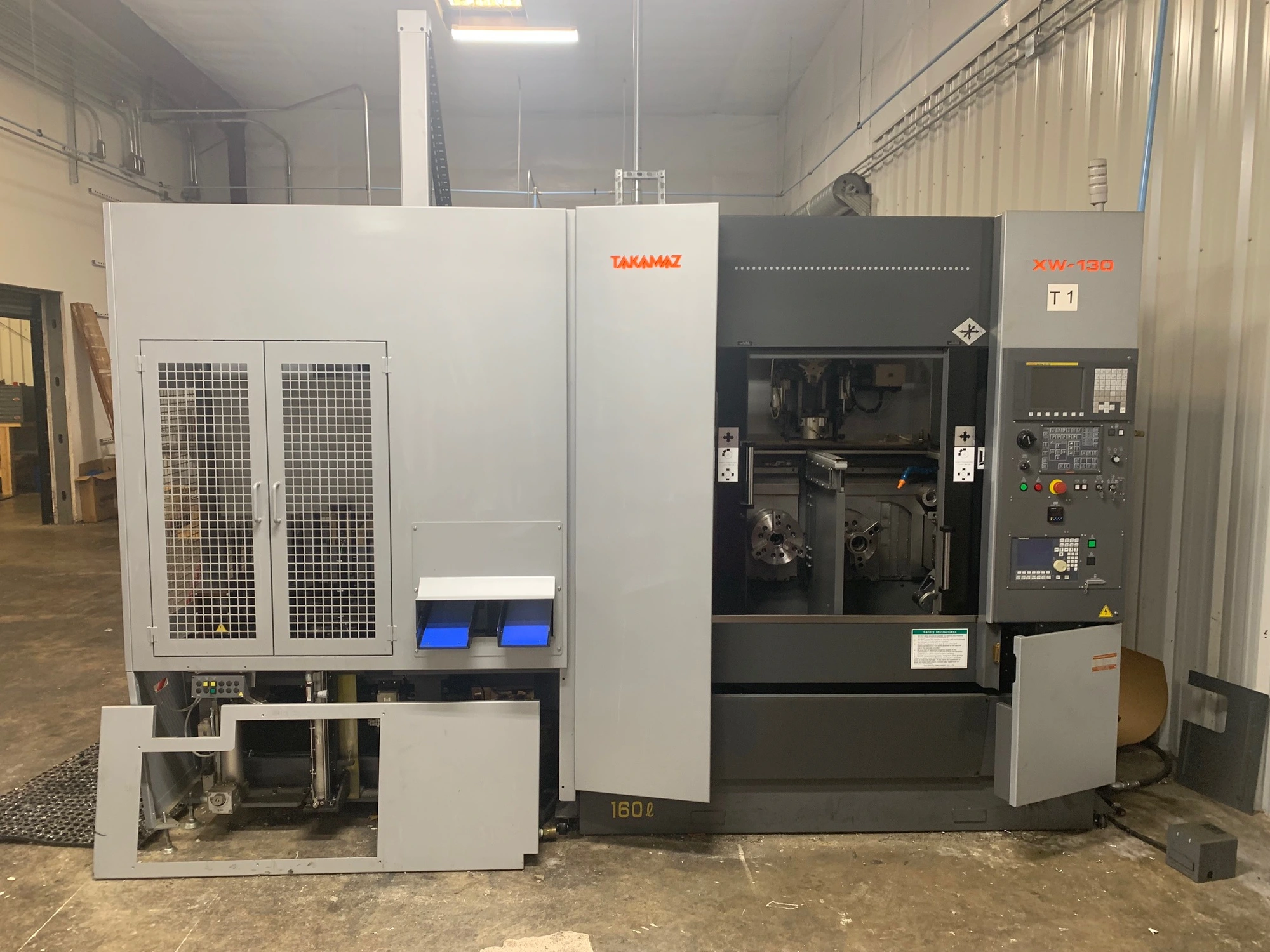

USED 2016 TAKAMAZ XW-130

Control: Fanuc 0i-TD
Number of Spindles: 2
Spindle Speed: 4,000 RPM
Spindle Power: 11 kW / 15-Minute Rating
Spindle Nose: A2-6

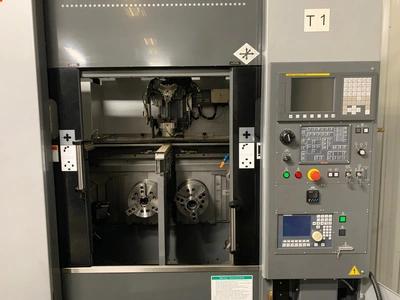

Turrets: (2) 8-Station Turrets
Axes: X/Z per Turret
Chucks: (2) Kitagawa B208 3-Jaw Hydraulic Chucks
Chucking: Hydraulic
Thread Cutting: Spindle Encoder
Automation: Takamaz GTH150 Gantry Loading System
Stocker: 16-Station Rotary Stocker System
Electrical: 208 VAC / 3 Phase / 43 kVA
Compressed Air: 80 PSI
Gantry Automation
Takamaz GTH150 Gantry Loader
Dedicated L-Hand configuration
OP 10/10 or OP 10/20 part flow
Part turn station
Extended loader rail

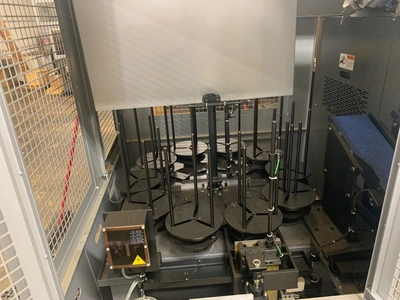

16-station IN/OUT rotary stocker
Loader/unloader grippers formed for one part
Loader part pusher
Loader software supporting:
OP10/10
OP10/20
Left-to-Right
Left-to-Left
Right-to-Left
Right-to-Right
Safety fencing with access-door interlock
Equipped With:

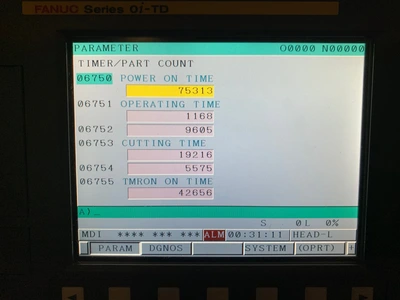

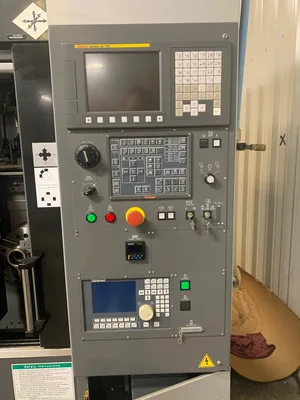

Fanuc Oi-TD Control
(2) Kitagawa B208 3-Jaw Hydraulic Chucks
(2) Hydraulic Chucking Cylinders
Chuck Clamp/Unclamp Confirmation Sensors
Spindle Cooling Device
Coolant-Through-Spindle Flushing
Chip Blaster D-30/70 1,000 PSI High-Pressure Coolant System
Dual Cartridge Filtration
160-Liter Coolant System
Rear-Mounted Belt-Type Chip Conveyor
Front-Side Air Blow
Parts Preset Counter
Splashguard Door with Safety Interlock
3-Color Signal Tower
Internal LED Machine Light
(4) 1.5″ ID Boring Holders
(4) 1″ Square-Shank Turning Holders
Service Tool Kit
