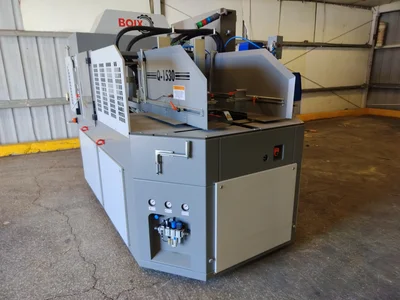

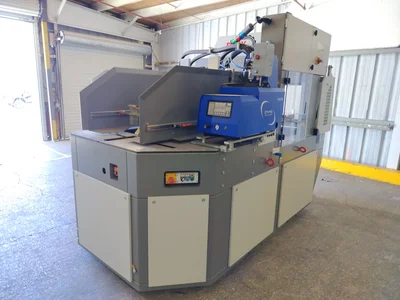

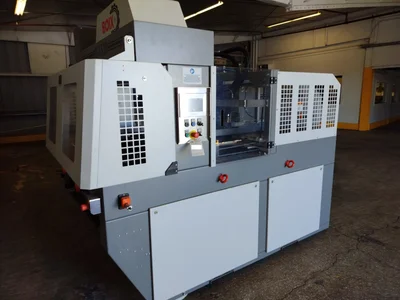

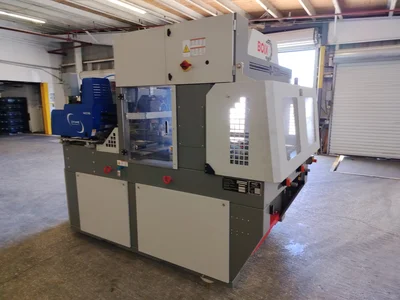

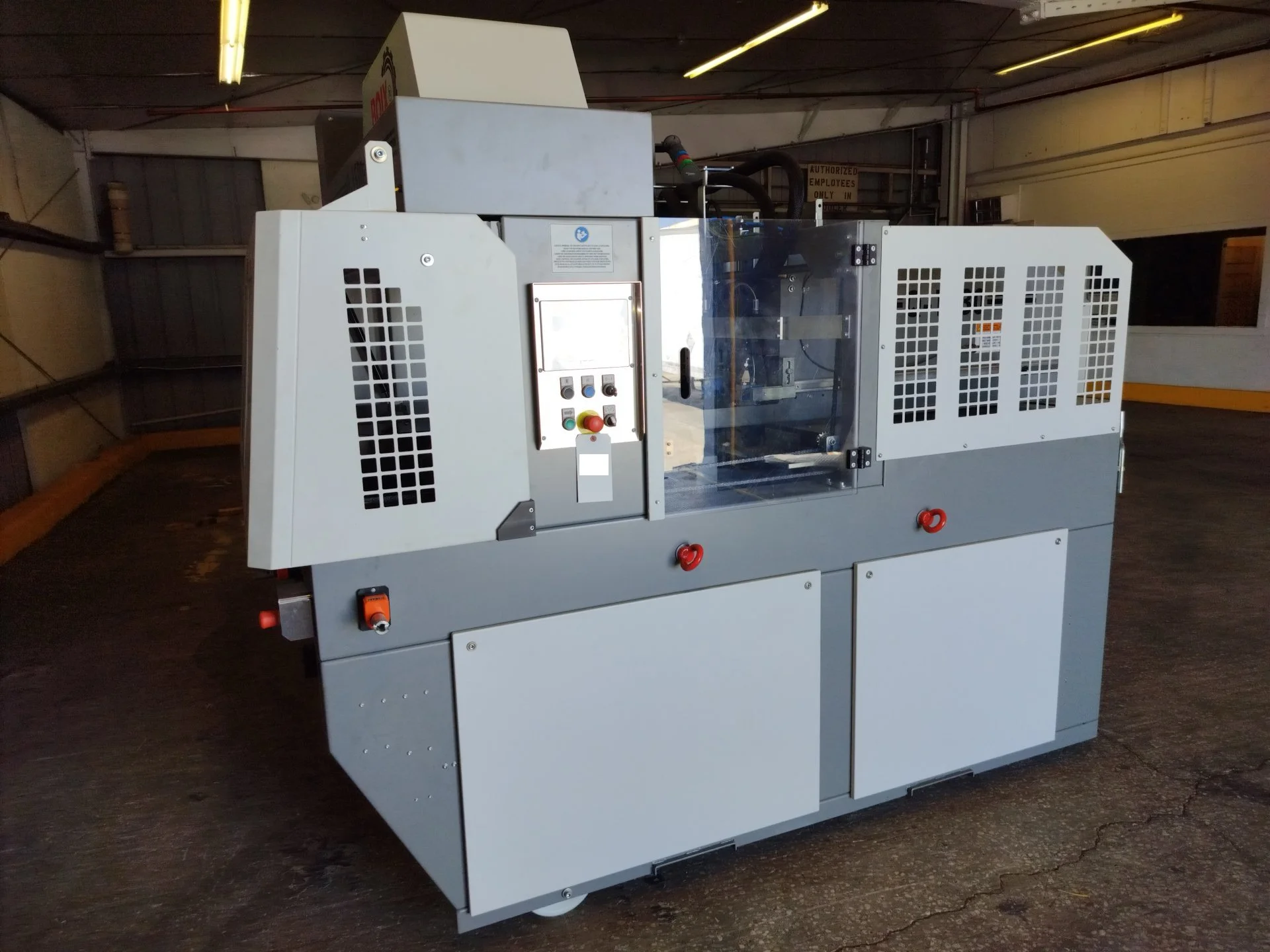

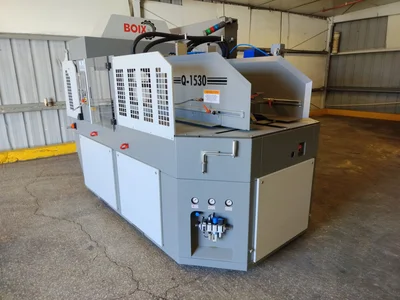

USED 2023 BOIX Q-1530

Machine Type: Automatic Tray / Box Former & Gluer
Production Speed: 400–1,800 Boxes per Hour
Number of Speeds: 6
Glue System: Hot-Melt Injection
Glue Unit: Melton NC-16
Operation: Mechanical, Electrical & Pneumatic
Control: 7″ Touchscreen HMI
Blank Introduction: Vacuum
Size Change: Manual, Threaded-Rod Adjustment
Approx. Changeover Time: 20–40 Minutes
Minimum Formed Box: 11.8″ × 7.8″ × 2.75″
Maximum Formed Box: 23.6″ × 23.6″ × 9.84″
Installed Power: 6.6 kW, excluding compressor
Electrical: 380/220V, 3-Phase + N + Ground, 50/60 Hz
Working Air Pressure: 7 Bar
Air Consumption: Approx. 400 L/min
Net Weight: Approx. 3,307 lbs (1,500 kg)
Machine Dimensions: Approx. 134.8″ L × 72.4″ W × 85.6″ H
Frame: 4 mm Steel Plate
Box / Tray Styles
Plaform
P-84
Citrus Box
C-1
Big Ear
Open Column
Equipped With;
Melton NC-16 Hot-Melt Glue System
Automatic Glue Feeder Kit
4,000 mm Conveyor Belt with Guides (~13.1′)
Boix Connect Remote Access / VNC Capability
Inline Work Kit
Adjustable Mandrels
