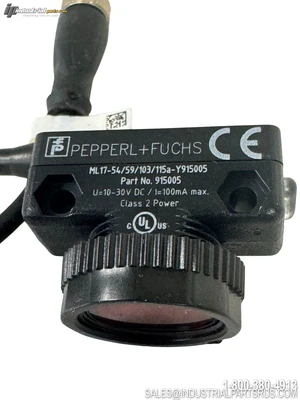

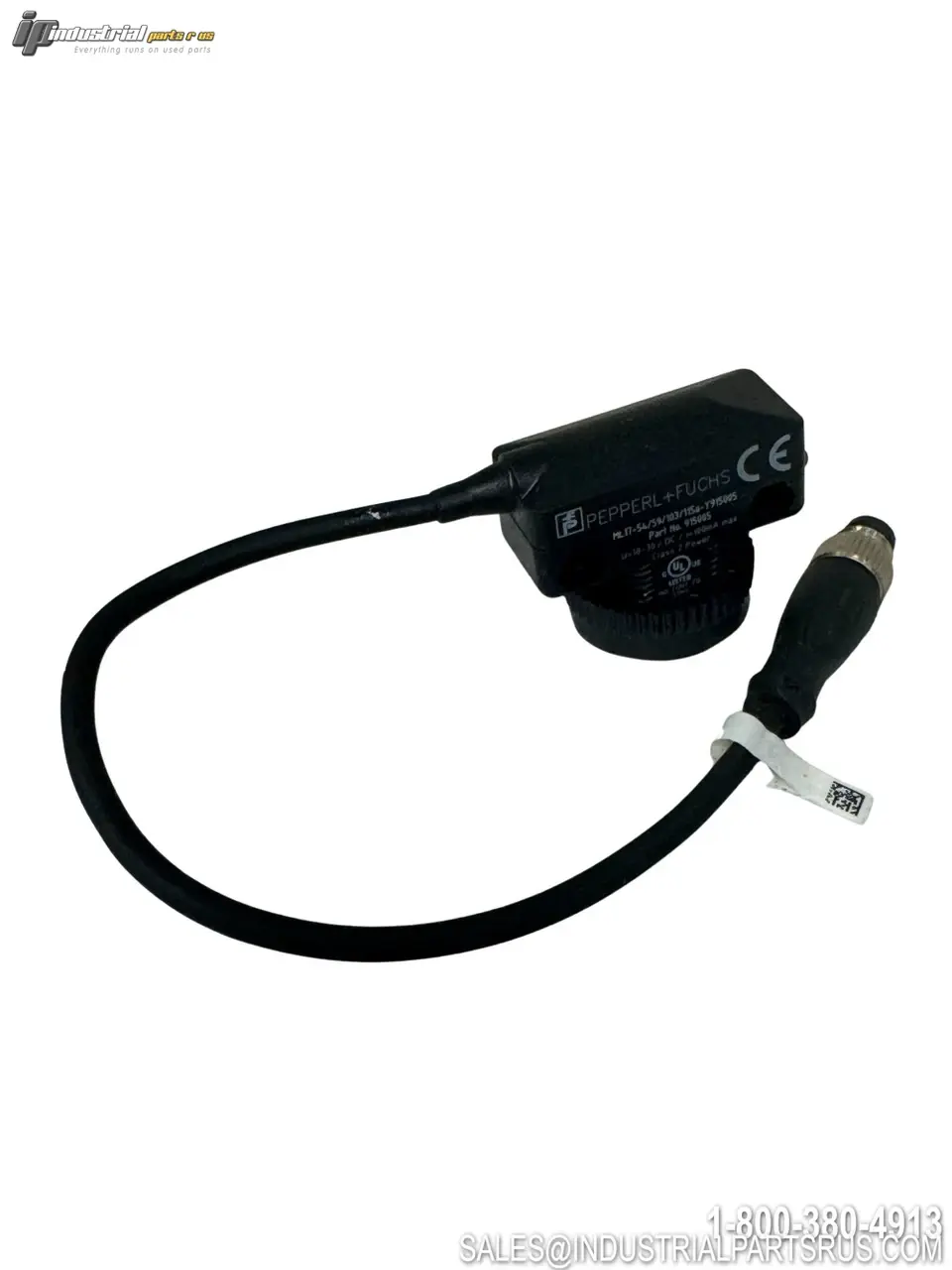

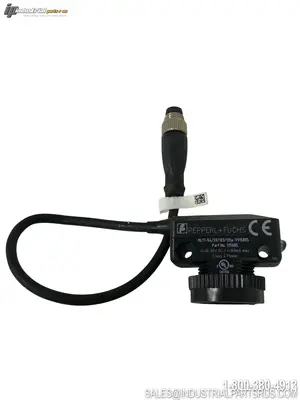

NEW PEPPERL+FUCHS ML17-54/59/103/115A-Y915005

The Pepperl+Fuchs ML17-54/59/103/115a-Y915005 is a compact retroreflective photoelectric sensor from the ML17 Tru-Vue series, featuring a polarization filter for reliable detection of shiny and reflective objects. This sensor offers a sensing range up to 3.5 meters, a single NPN output stage, and is designed for tamper-proof operation with no user-adjustable sensitivity. The "-Y915005" suffix denotes a Pepperl+Fuchs customer-specific or special variant designation applied to the ML17-54/59/103/115a base platform, sharing identical core electrical and mechanical specifications.
Specification
Value
Brand
Pepperl+Fuchs
Model / Part Number
ML17-54/59/103/115a-Y915005
Series
ML17 (Tru-Vue)
Sensor Type
Retroreflective (with Polarization Filter)
Sensing Range
0 – 3.5 m (3500 mm)
Threshold Detection Range
5 m
Reference Reflector
FE-RR1
Reflector Distance
50 – 3500 mm
Supply Voltage
10 – 30 V DC
Output Current (max)
100 mA
Output Type
Single NPN (Dark-ON / Light-ON)
Switching Frequency
500 Hz
Response Time
≤ 1 ms
Voltage Drop (Ud)
≤ 2.5 V DC
Light Source
Visible Red LED, 626 nm
Sensitivity Adjustment
None (Tamper-proof / Fixed)
Connection Type
150 mm PVC cable with 4-pin M8 connector (quick disconnect)
Degree of Protection
IP67
Housing Material
ABS
Optical Face Material
Acrylic
Housing Shape
Rectangular (Block)
Dimensions (H × W × L)
34.5 mm × 15 mm × 29.3 mm
Height
34.5 mm
Width
15 mm
Length
29.3 mm
Mass
approx. 40 g (1.4 oz)
Mounting Type
Front M18 threaded / Side mounting holes (M4 screws) / Quick clamp
Indicator – Signal Display
Yellow LED
Indicator – Operating Display
Green LED
Ambient Temperature
-20 … 55 °C (-4 … 131 °F)
Product Standard
EN 60947-5-2
Approvals
cULus
Variant Suffix
Y915005 (Customer/special order variant of ML17-54/59/103/115a base)
We warranty all items for 30 days from date of purchase.
