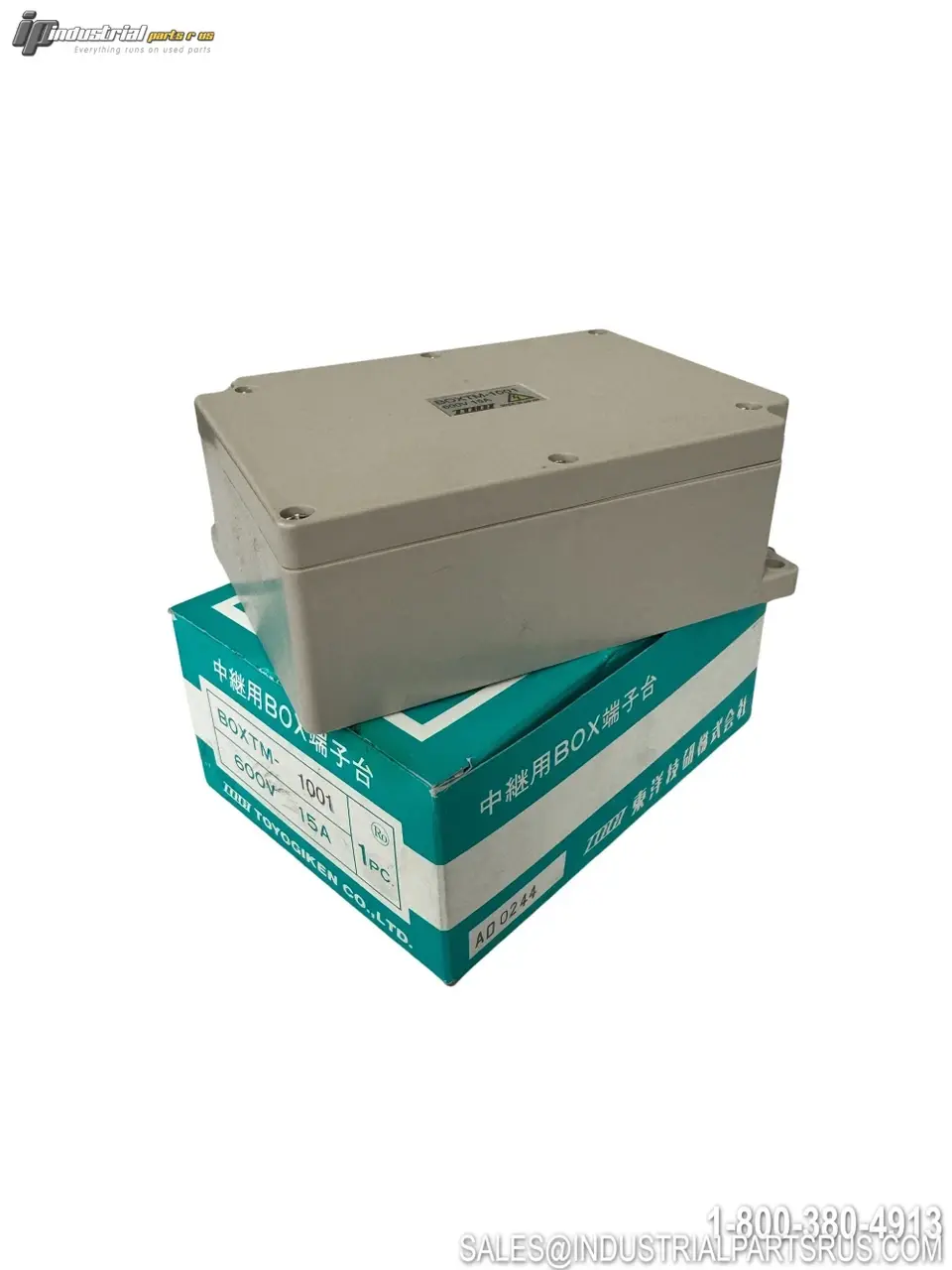

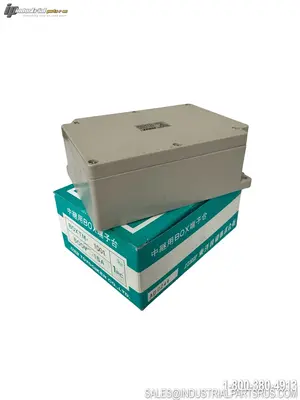

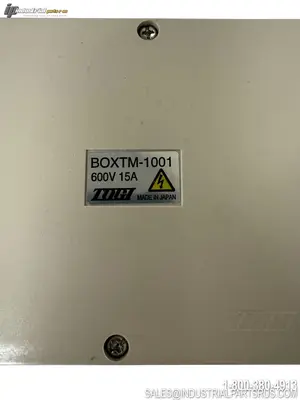

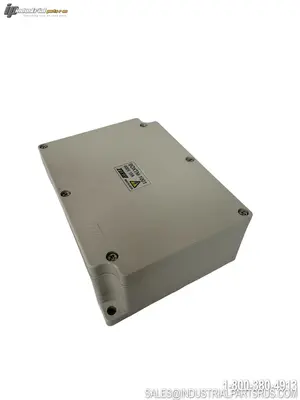

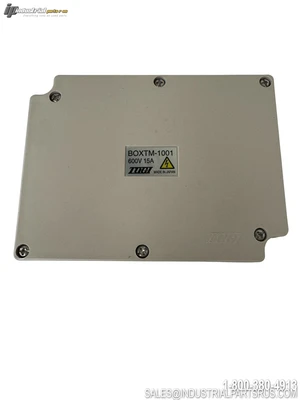

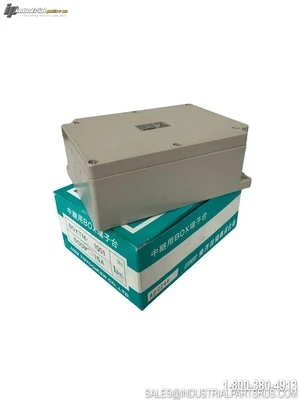

NEW TOYOGIKEN BOXTM-1001

The Toyogiken (TOGI) BOXTM-1001 is a compact terminal junction box that integrates both the enclosure and terminal block into a single unit, resulting in a lightweight and space-efficient design ideal for storing and wiring devices such as sensor amplifiers, relays, and solenoids. Rated at 600V AC/DC and 15A with an IP65 protective structure, it features a reinforced PBT (UL94V-0) resin construction that provides superior heat, oil, and chemical resistance. Suitable for industrial control panels and factory automation equipment, the BOXTM-1001 ships as a box-only unit without pre-drilled wire inlet holes, allowing the user to drill openings per their specific wiring requirements.
Specification
Value
Brand
Toyogiken (TOGI)
Model / Part Number
BOXTM-1001
Product Type
Terminal Junction Box (Relay Control Box)
Voltage Rating
600V AC/DC
Current Rating
15A
Number of Poles
10 Poles
Wire Cross-Section
2 mm²
Terminal Screw Size
M3.5
Insulation Resistance
100 MΩ min. (over DC 500V)
IP Rating (Protection Class)
IP65
Dimensions (L × W × H)
120 mm × 90 mm × 44.5 mm
Mounting Hole Spacing
110 mm × 80 mm
Mounting Hole Diameter
2× φ5.2 mm
Weight
249 g
Body / Housing Material
Reinforced PBT Resin (UL94V-0)
Color
Beige
Wire Inlet Configuration
No pre-drilled holes — holes can be made at user's option
Grounding Tap
M4 tap on terminal block mounting plate
Compatible Short Bar
BB8.5-2, BB8.5-4, BB8.5-8, BB8.5-10
Application
Sensor amplifiers, relay wiring, solenoid wiring
Series
BOXTM Series
Sales Lot
1 pc
