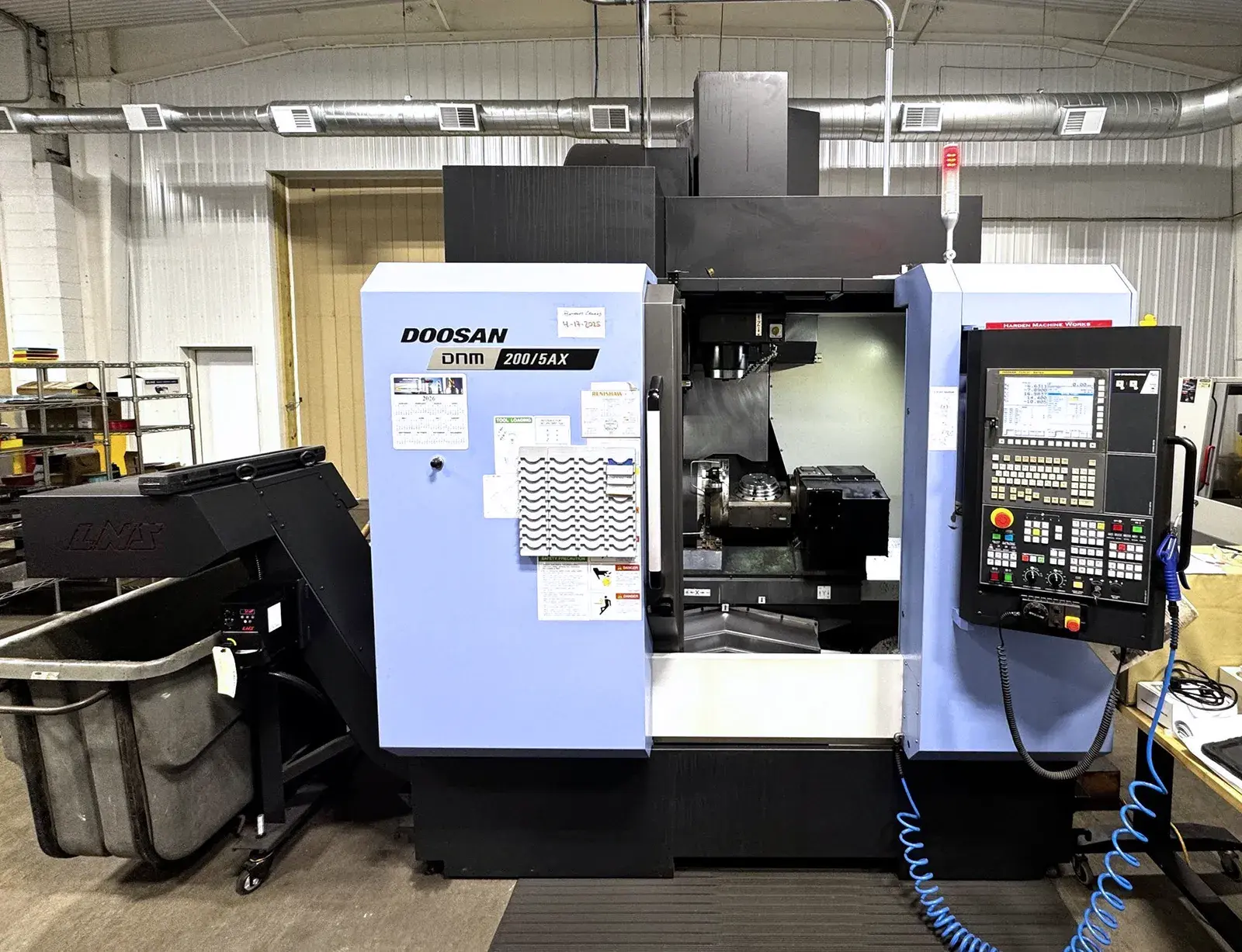

USED 2017 DOOSAN DNM 200/5AX
Overview
Elevate production with the Doosan DNM 200/5AX (2017), a powerful vertical machining center featuring DOOSAN-FANUC i Series control and a 12,000 RPM spindle. Built for fast, precise machining of complex components, it is an excellent choice for aerospace, medical, automotive, mold, defense, and energy manufacturing.
Specs

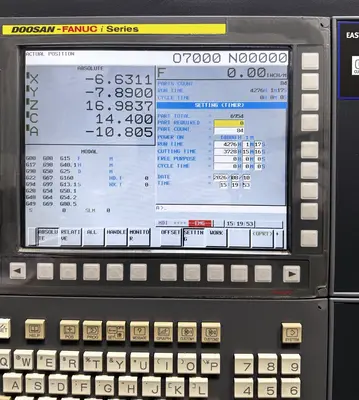

Doosan-Fanuc i Series CNC Control

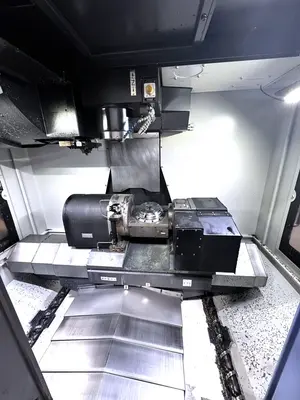

Built-In 5TH Axis Trunnion Rotary Table (3+2)
Through Spindle Coolant (230 PSI)
Renishaw Work Probe
Tool Setter
& RMI
12
000 RPM
40 Position ATC
Coolant Tank
Oil Skimmer
** Machine Cutting Primarily S7 & 4140
** As of August
2026 - Cutting Time: 3
728 HOURS
** Machine replacement new as equipped: $200
000
** In plant
Under power
and ready for inspection
Table Length: 7.87"
Table width: 7.87"
X-Axis Travel: 15.75"
Y-Axis Travel: 17.13"
Z-Axis Travel: 19.69"
A-AXIS Rotation: +30° -120°
C-Axis Rotation: 360°
Spindle Speed: 12,000 RPM
Spindle Motor: 25 hp
Spindle Taper: CAT 40
Tool Capacity (ATC): 40
Rapid Traverse (X Axis): 1,417 in/min.
Rapid Traverse (Y Axis): 1,417 in/min.
Rapid Traverse (Z Axis): 1,181 in/min.
Equipped With
Doosan-Fanuc i Series CNC Control
Built-In 5TH Axis Trunnion Rotary Table (3+2)
Through Spindle Coolant (230 PSI)
Renishaw Work Probe
Tool Setter
& RMI
12
000 RPM
40 Position ATC
Coolant Tank
Oil Skimmer
** Machine Cutting Primarily S7 & 4140
** As of August
2026 - Cutting Time: 3
728 HOURS
** Machine replacement new as equipped: $200
000
** In plant
Under power
and ready for inspection
