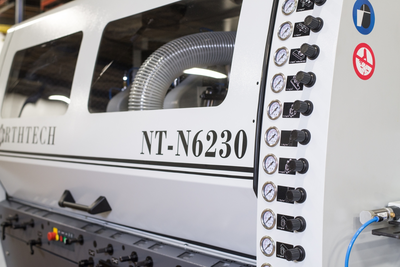

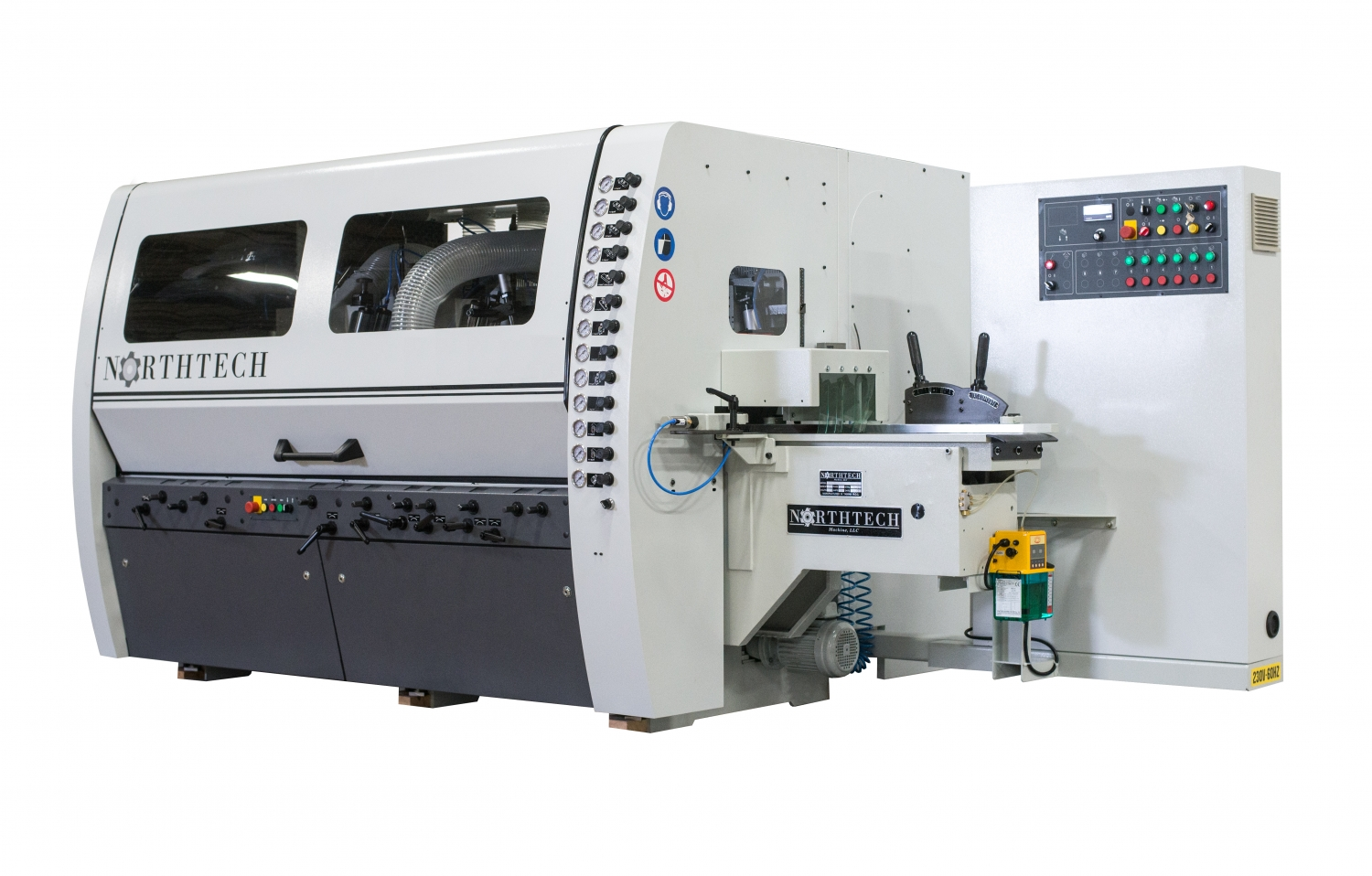

NEW NORTHTECH NT-N6230-1

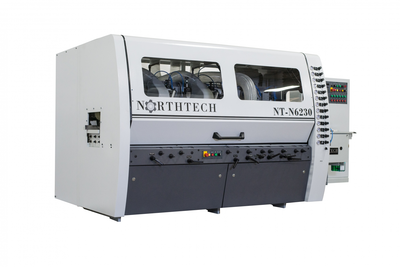

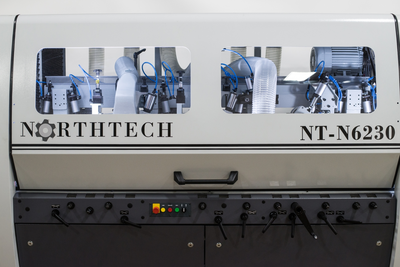

Northtech model NT-N6230-1 Six-Head Moulder

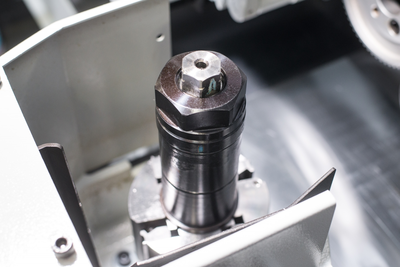

SPINDLE ARRANGEMENT
1st: Bottom horizontal: 15HP, 6,000RPM, 1-13/16" spindle
2nd: Right vertical: 10HP, 6,000RPM, 1-13/16" spindle
3rd: Left vertical: 10HP, 6,000RPM, 1-13/16" spindle
4th: Top horizontal: 15HP, 6,000RPM, 1-13/16" spindle
5th: Top horizontal: 15HP, 6,000RPM, 1-13/16" spindle
6th: Bottom horizontal: 15HP, 6,000RPM, 1-13/16" spindle

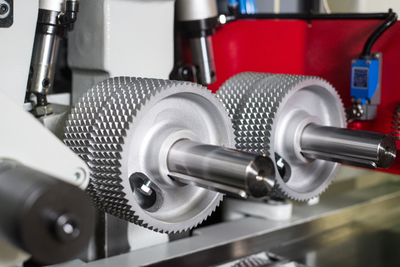

FEED SYSTEM
Feeding motor: 7-1/2 HP with inverter
Elevation motor: 1/2 HP
Feeding speed: 20 - 118FPM

PRODUCT DIMENSIONS USING FULL TOOL RANGE
Width: 10mm - 230mm (3/8" - 9")
Thickness: 7mm - 160mm (5/16" - 6-1/2")
Minimum length: 300mm (12")

FEATURES
(1) Spindle positioning through individual digital controllers
Infeed table length: 1300mm (51")

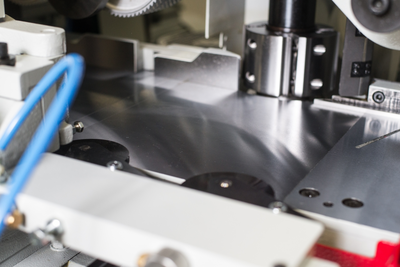

Table is hard chrome plated

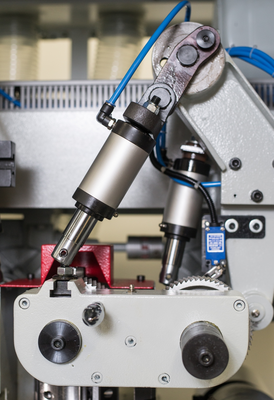

(3) Powered bed rollers
(1 set) Moulder heads (Included)

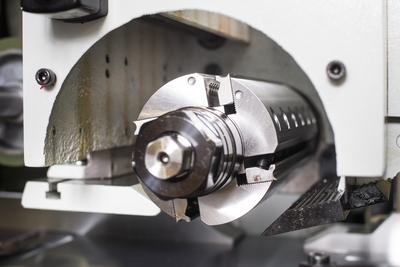

(1) 5" x 9" helical insert head with 30x12 (2) sided inserts
Horizontal: (3) 5" x 9"; 4 wing, 1-13/16" heads
Vertical: (2) 5" x 4"; 4 wing, 1-13/16" heads
Dust collection: (6) 125mm (5") dust ports requiring
681 CFM @ each point of extraction
Net weight: 9,039 lbs.
Gross weight: 10,362 lbs.
Machine dimensions: (L) 150" x (W) 83" x (H) 84"
Packing dimensions: (L) 168" x (W) 84" x (H) 85"
(1) Tool box
All machines are tested at factory prior to shipment providing trouble free start up.
(1) Day onsite start up and training included, tech travel expenses extra
