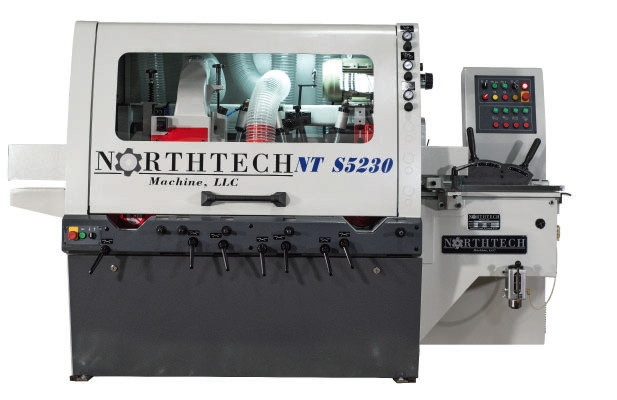

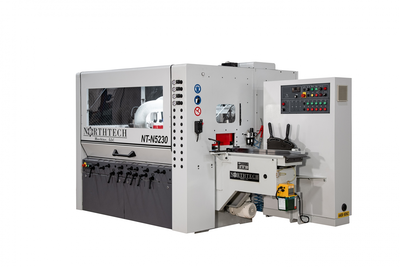

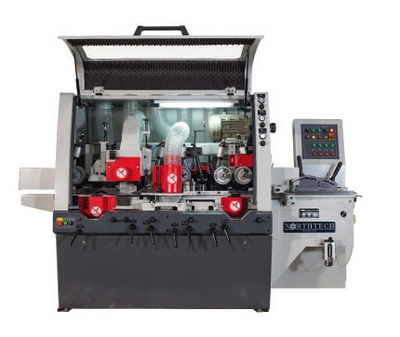

Northtech NT-S5230 5 Spindle Moulder

Northtech NT-S5230 5 Spindle Moulder

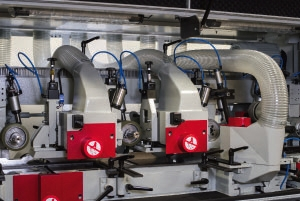

Spindle Arrangement
1st Spindle: Bottom Horizontal: 7.5HP
2nd Spindle: Left Vertical: 7.5HP
3rd Spindle: Right Vertical: 7.5HP
4th Spindle: Top Horizontal: 7.5HP
5th Bottom Horizontal: 7.5HP
Spindle Speed: 6000RPM
Spindle Diameter: 40mm
Feed System
Feed Motor: 3HP
Feed Speed: 19-80FPM
Infeed Table Length: 51"
Chrome Plated Infeed Table
Incorporated Bed Roller
Elevation Motor: 1/3HP
Product Dimensions
Width: 1/2"-9" (10-230mm)
Thickness: 5/16"-5" (7-125mm)
Cutterhead Features
(2) 4 Wing 5"x9" Corrugated Knife Stock Moulder Heads
(2) 4 Wind 5"x4" Corrugated Knife Stock Moulder Heads
(1) 5"x9" Helical Cutterhead with 2-sided 30x12 Carbide inserts
