NEW NORTHTECH NT-L6300

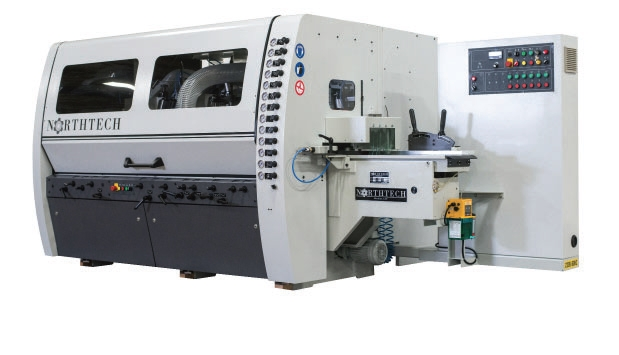

Northtech Model NT-L6300 12" Six Spindle Moulder
SPINDLE ARRANGEMENT
1st Bottom horizontal: 15HP, 6000 RPM, 50mm Ø
2nd Right vertical: 15HP, 6000 RPM, 50mm Ø
3rd Left vertical: 15HP, 6000 RPM, 50mm Ø
4th Top horizontal: 25HP, 6000 RPM, 50mm Ø
5th Top horizontal: 20HP, 6000 RPM, 50mm Ø
6th Bottom Horizontal: 20HP, 6000 RPM, 50mm Ø
FEED SYSTEM
Feeding motor: 10HP with inverter
Elevation motor: 1HP
Feeding speed: 6-36m/min (19 - 115 FPM)
PRODUCT DIMENSIONS
Width: 10mm - 300mm (3/8" - 12")
Thickness: 7mm - 160mm (.28" - 6.3")
Minimum length: 37" Single piece feed
FEATURES
Infeed table length: 1800mm (72")
Siko counters for sensitive movements
Automatic lubrication system
Horizontal spindles with outboard bearing support
Table is hard chrome plated
(5) Powered bed rollers
No tooling included
Tool box and Manual included
Standard 1 year Northtech parts warranty
1 Day Start Up & Training Included, travel expenses not included
