USED KOCH BD-A

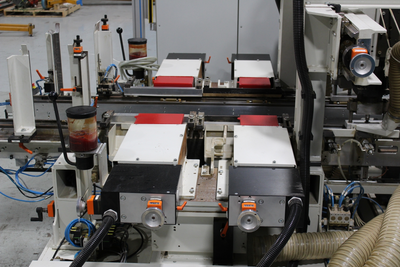

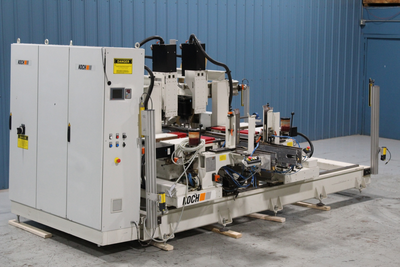

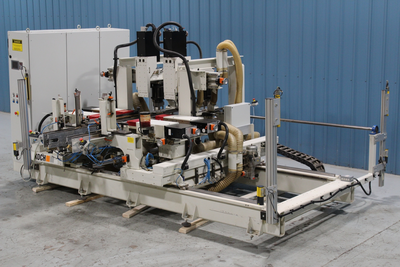

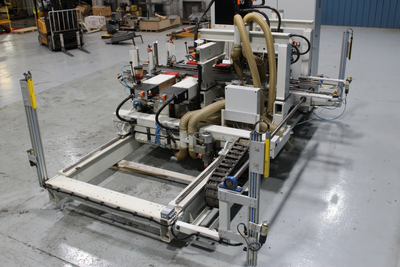

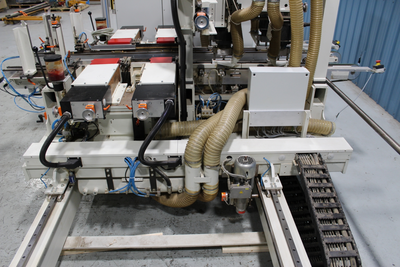

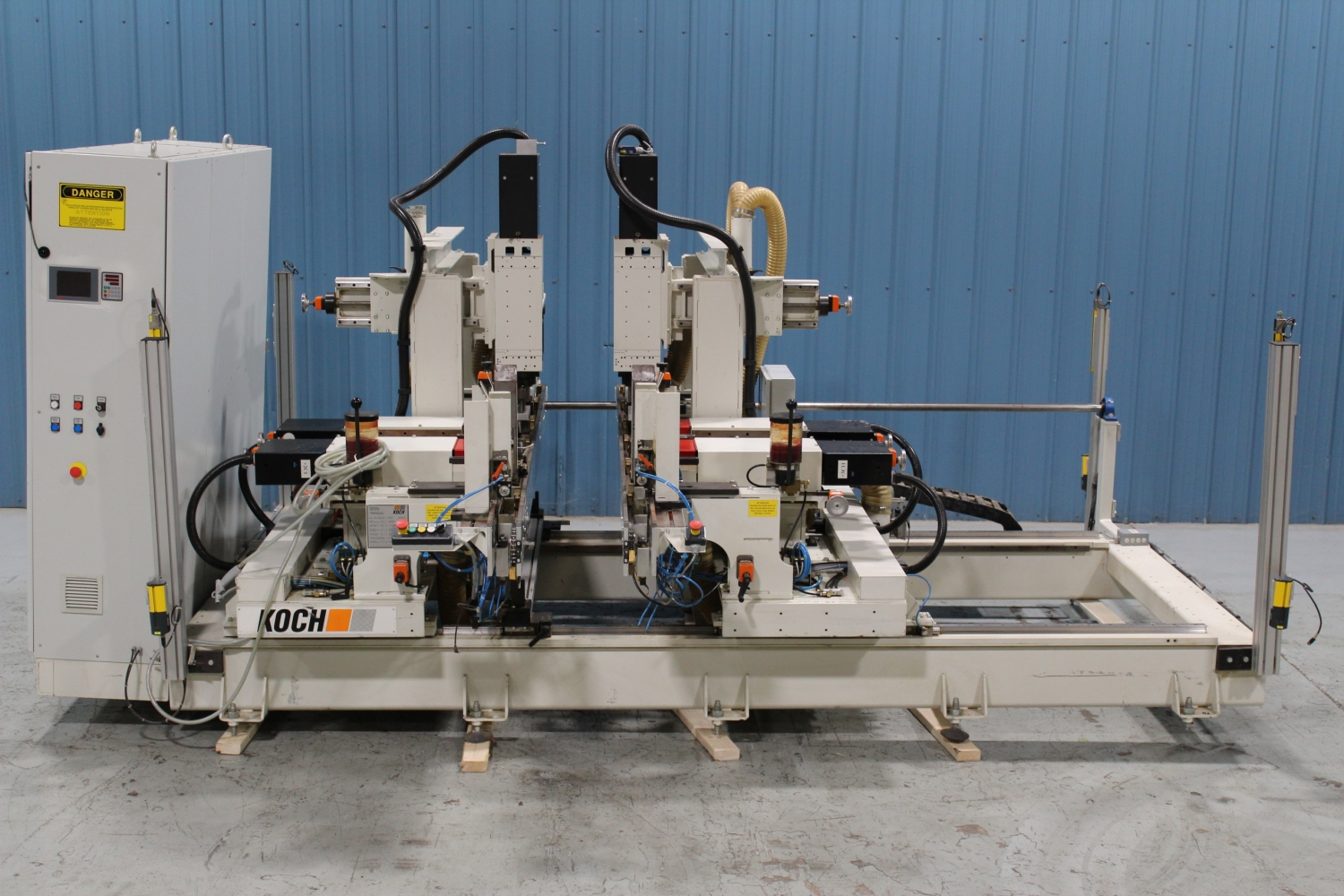

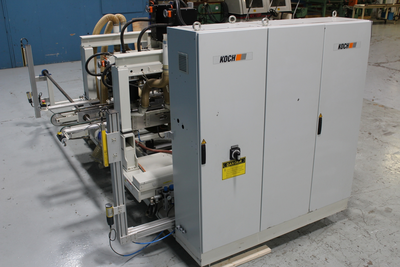

Koch Model BD-A Double Cycle Double-End Automatic Drilling Machine
Workpiece Length: 250 - 1500mm
Workpiece Width: 38 - 250mm
Workpiece Thickness: 16 - 30mm
Right Side Traverses

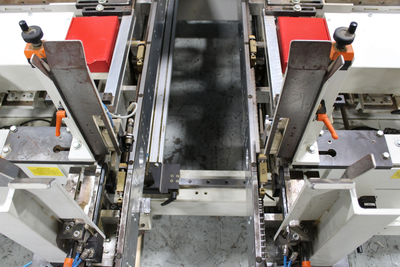

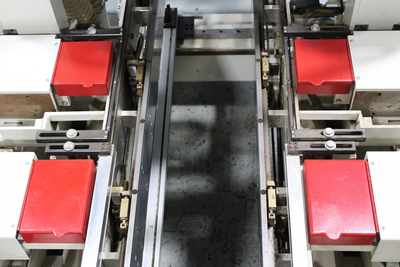

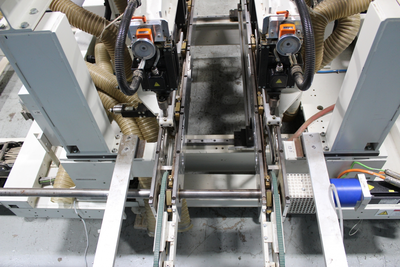

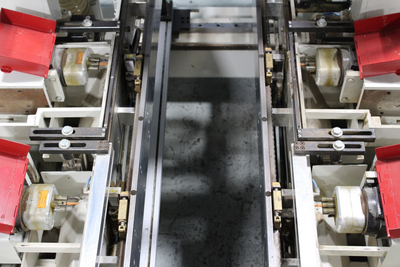

The workpieces are transported through the working stations by means of a cam transport system

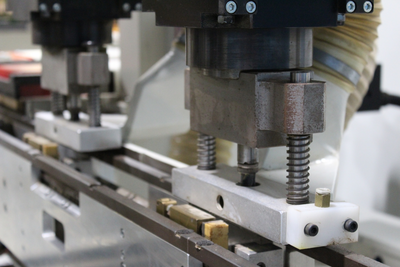

Stock is machined in a clamped position
Hopper Feed
Machines up to 48 Workpieces/Minute

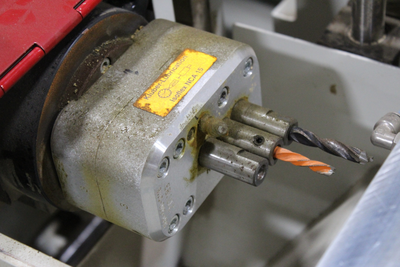

Station #1: Four Horizontal Drilling Stations Two on Each Side), 3 HP, 3400 RPM, Each with Three Drilling Spindles Spaced at 16mm on-Centers

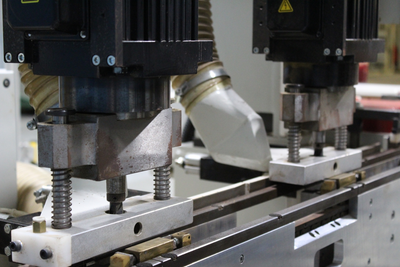

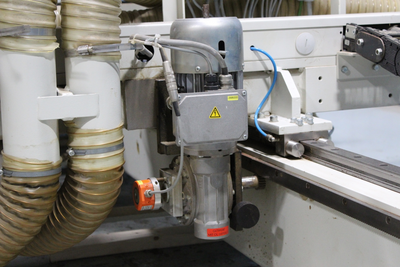

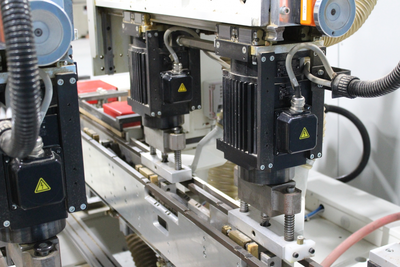

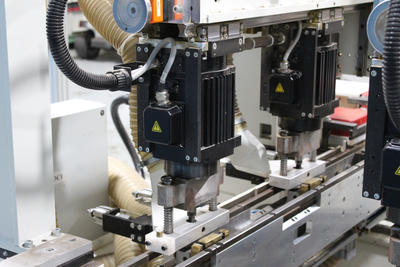

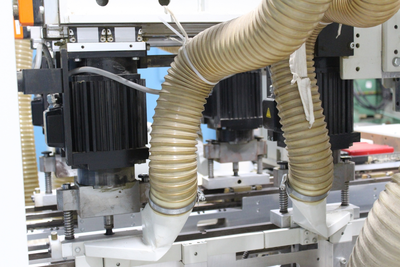

Station #2: Four Vertical Drilling Stations (Two on Each Side), 3 HP, Quick-Change Chucks

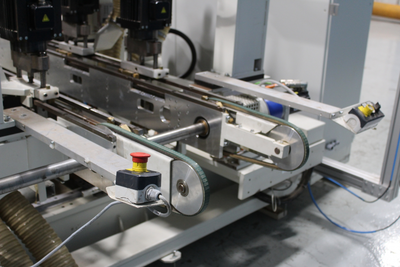

Vertical Drills are Adjustable in the X & Y Directions via Hand-Cranks w/ Mechanical Counters

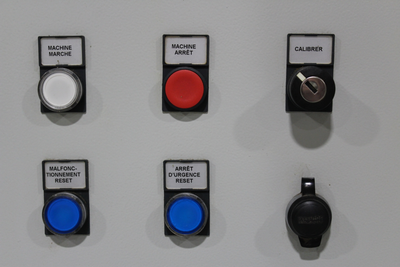

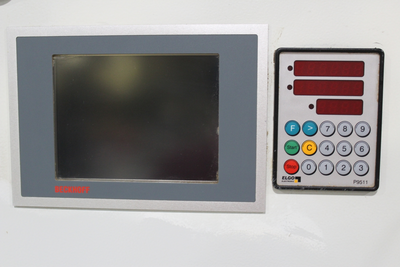

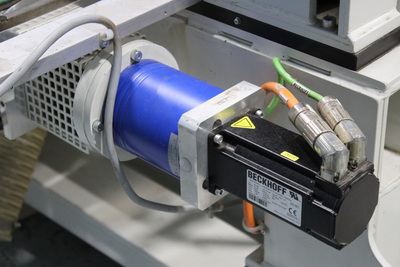

Beckhoff Control
480v, 3ph
Year: 2017
