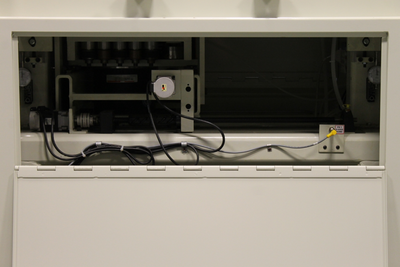

NEW MEREEN-JOHNSON 1105-H

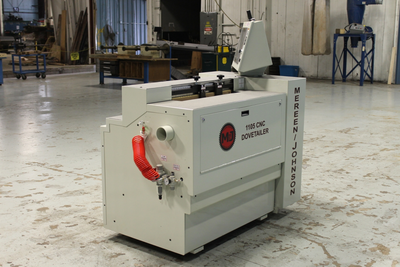

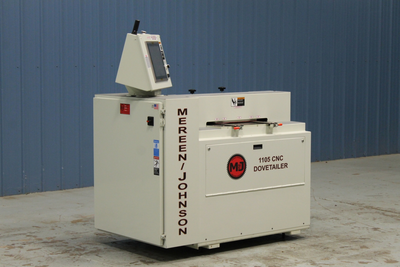

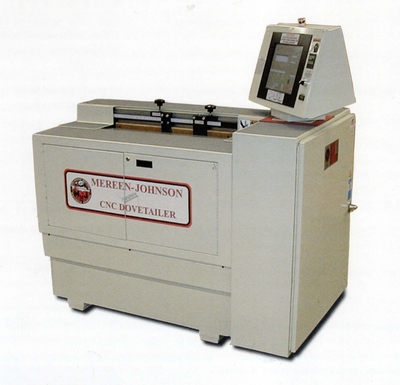

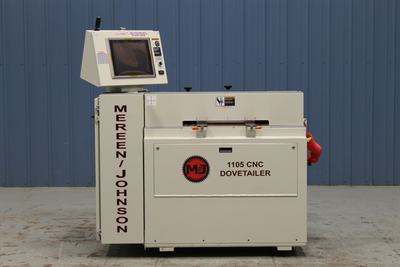

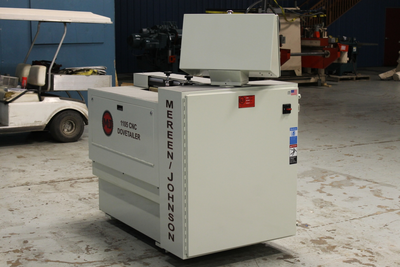

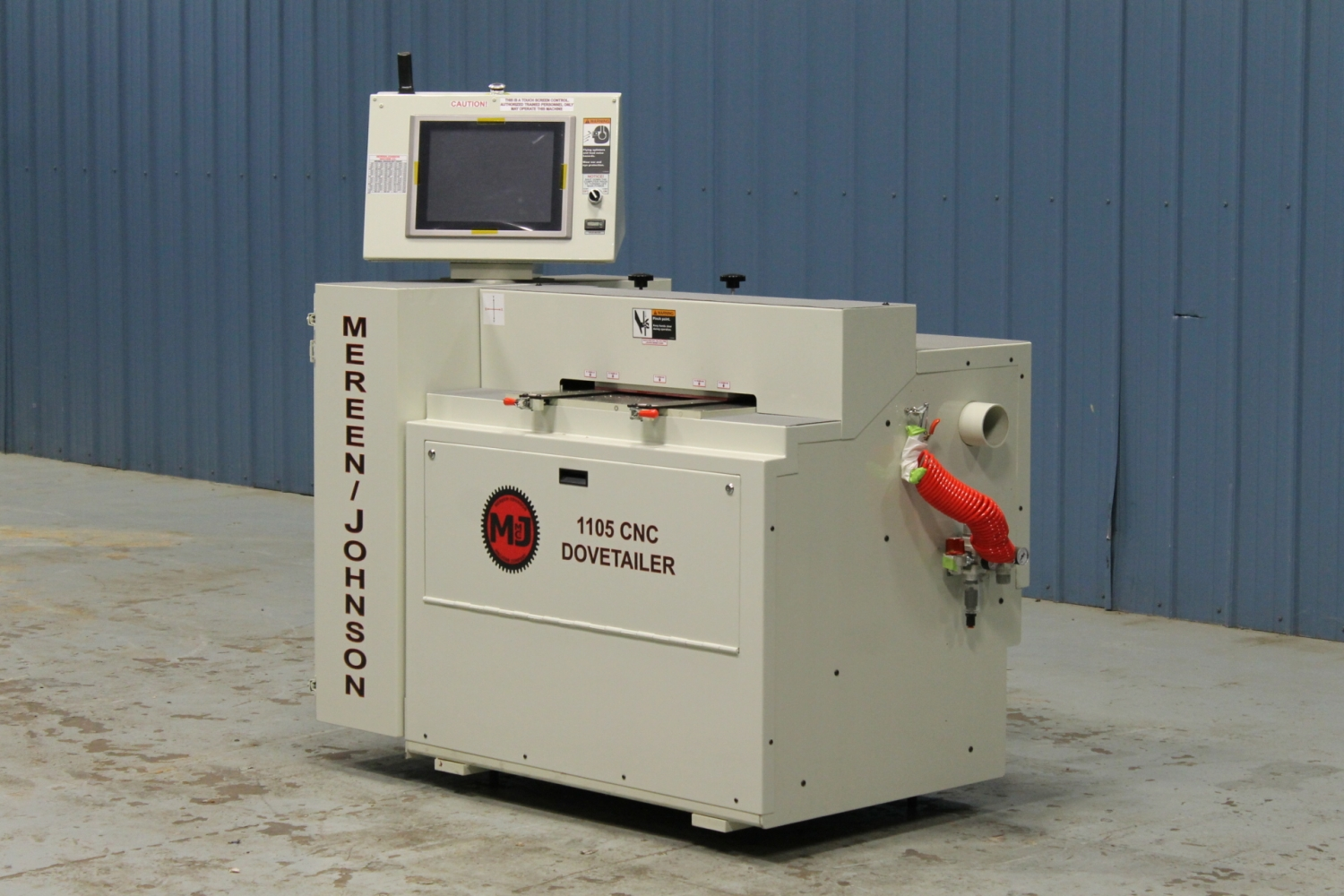

Mereen-Johnson Model 1105-H CNC Dovetailer
Machines Finger-Type English Dovetails on Draw Sides, Fronts, and Backs
Dovetails are Spaced on 1" Centers

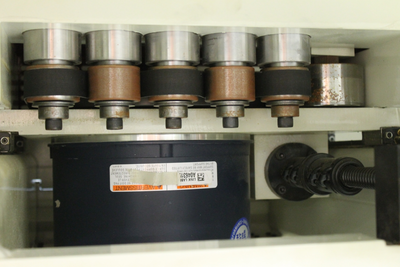

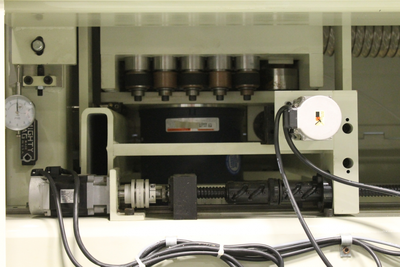

Dovetails Are Machines Via Five Counter-Rotating Spindles
Spindle Speeds: 20,000 RPM

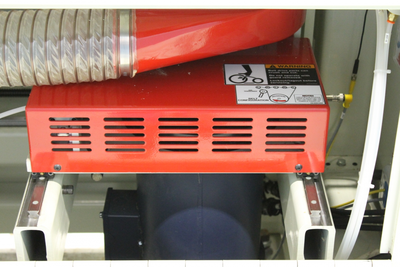

Spindle Motor: 5 HP TEFC Motor, 3ph
Cartridge Type Spindles
Maximum Cutting Speed: 2.1 Inches Per Second
Production Rate: Up to 80 Boxes Per Hour
Material Thickness Capacity: 7/16" - 5/8" (Up to 3/4" with Optional Guide)
Drawer Height: 1-3/4" - 15"
Drawer Width: 5" - 48"
Drawer Depth: 7" - 28"

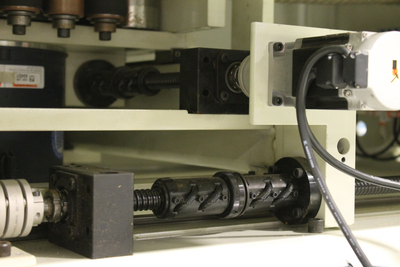

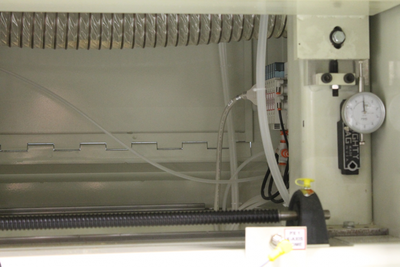

X & Y Axes Powered by Brushless Servo Motors Coupled with Ball-Screws
Carriages are Mounted on THK Linear Guides
Three-Second Changeover Time from Sides to Fronts/Backs

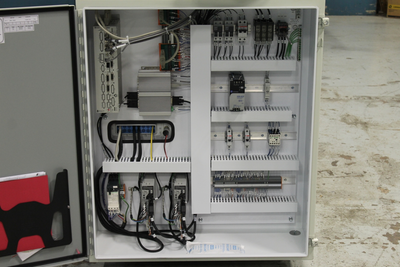

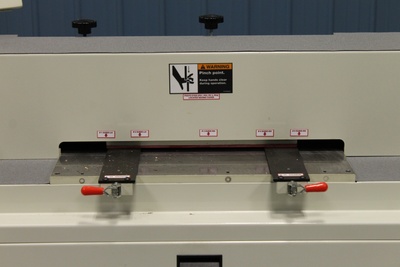

Thickness Adjustment is Integrated into CNC Programming for Both Clamping Stations

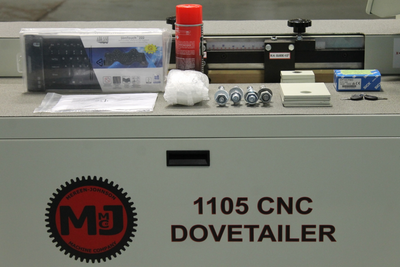

One Set of Carbide Tooling is Included in Sale Price
