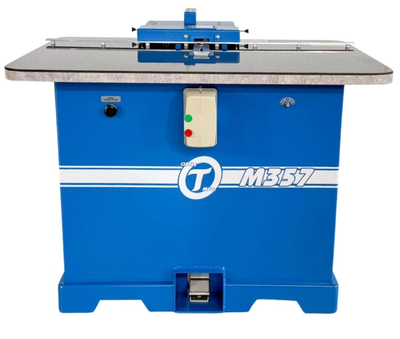

NEW NOTCHER M357

Circle T Manufacturing Model 357 Drawer Notcher
Min Thickness of Drawer Box Back: 5/16"
Max Thickness of Drawer Box Back: 3/4"
Min Width Inside of Drawer Box: 5 1/8"
Min Length Inside of Drawer Box: 8 1/4"

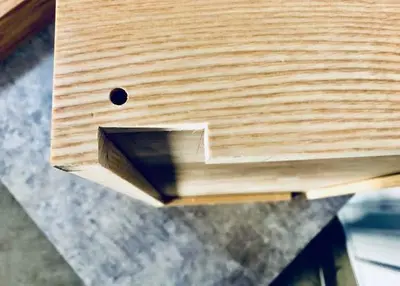

Standard Notch Size 57mm (35mm and 51mm cutterheads also available for purchase)
Standard Locating Hole Size 15/64"
Main Motor: 1.5 HP
Pneumatic Drill Included
8" Insert Cutter
Arbor Speed: 3,200 RPM
Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Packages as well
Dust Collection Requirements: 670 CFM, 4" Outlet
Electrical Version Pneumatic Requirement: 100 PSI, 6 CFM
Pneumatic Version Requirement: 100 PSI, 76 CFM
20 AMP Disconnect at 110v 1ph
10 AMP Disconnect at 220v 1ph
6 AMP Disconnect at 230v 3ph
4 AMP Disconnect at 460v 3ph
Overall Table Size: 31.5" x 47.5"
Table Operating Area: 21.75" x 47.5"
Footprint: 52" W x 42" D X 42" H
Shipping Dimensions: 52"L x 47"W x 39"H
