USED MORI SEIKI MS-850
Overview

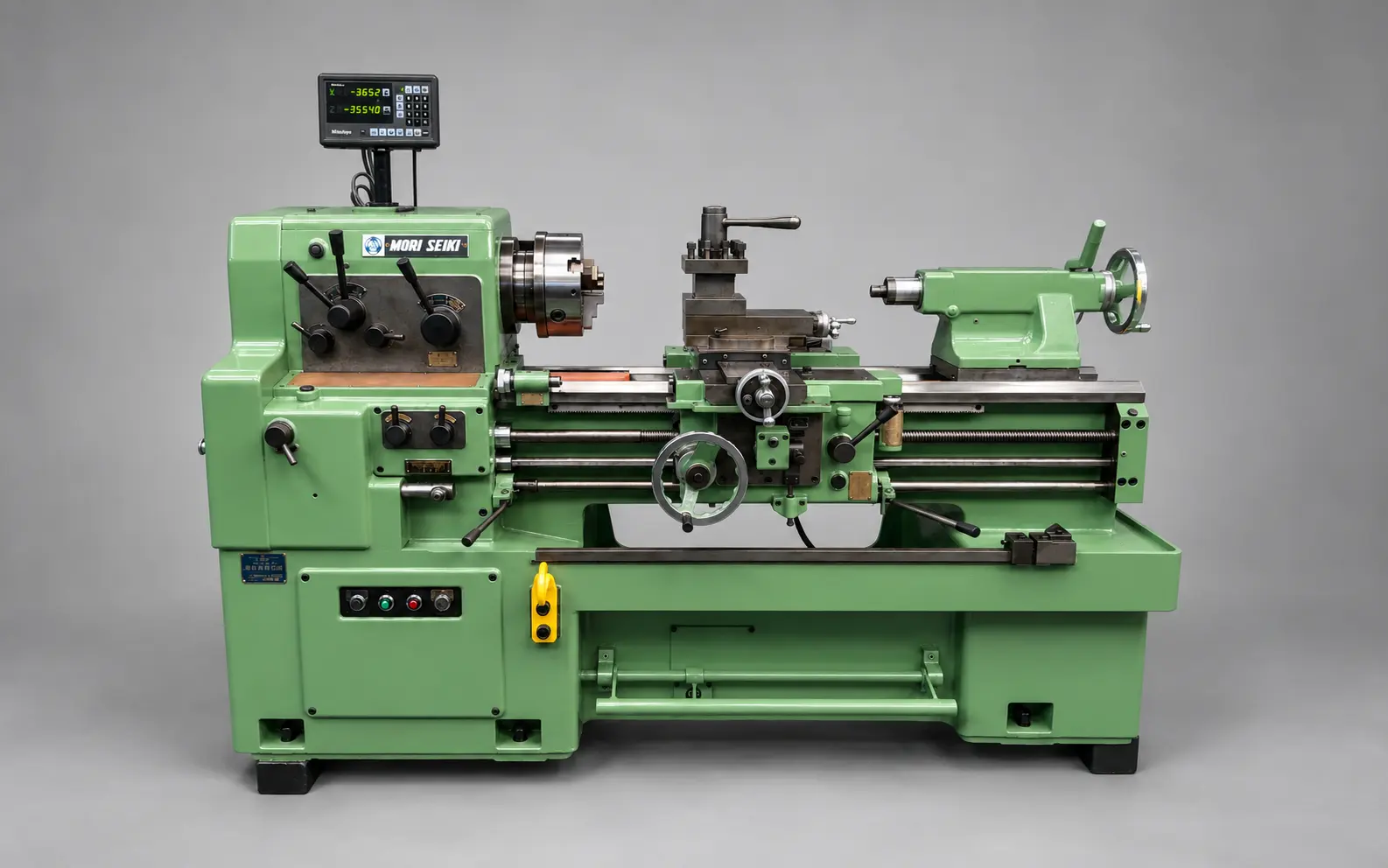

MORI SEIKI MS-850 Precision Centre Lathe
High-quality Japanese manufactured centre lathe offering excellent rigidity, accuracy and operator-friendly controls.
The MS-850 features a 435mm swing over the bed, 850mm between centres and a useful 52mm spindle bore. A wide spindle speed range from 32 to 1,800 RPM makes this machine suitable for general turning, maintenance, toolroom and precision machining applications.
Mori Seiki conventional lathes are highly regarded for their robust construction, smooth operation and long service life.
A compact, quality Japanese lathe particularly well suited to toolrooms, maintenance workshops and general engineering applications.
Specs
Make: Mori Seiki
Model: MS-850
Country of Manufacture: Japan
Swing Over Bed: 435mm
Swing Near Faceplate: 490mm
Swing Over Cross Slide: 250mm
Distance Between Centres: 850mm
Spindle Bore: 52mm
Spindle Nose: A1-6
Spindle Speeds: 12 speeds
Speed Range: 32–1,800 RPM
Cross Slide Travel: 255mm
Compound Rest Travel: 150mm
Maximum Tool Size: 25 × 25mm
Tailstock Quill Travel: 150mm
Tailstock Taper: No. 4 Morse
Metric Threads: 0.25–7mm pitch
Imperial Threads: 4–80 TPI
Main Motor: 3.7kW / 5HP
Approximate Machine Dimensions:
2,210mm L × 940mm W
Approximate Machine Weight: 1,930kg
